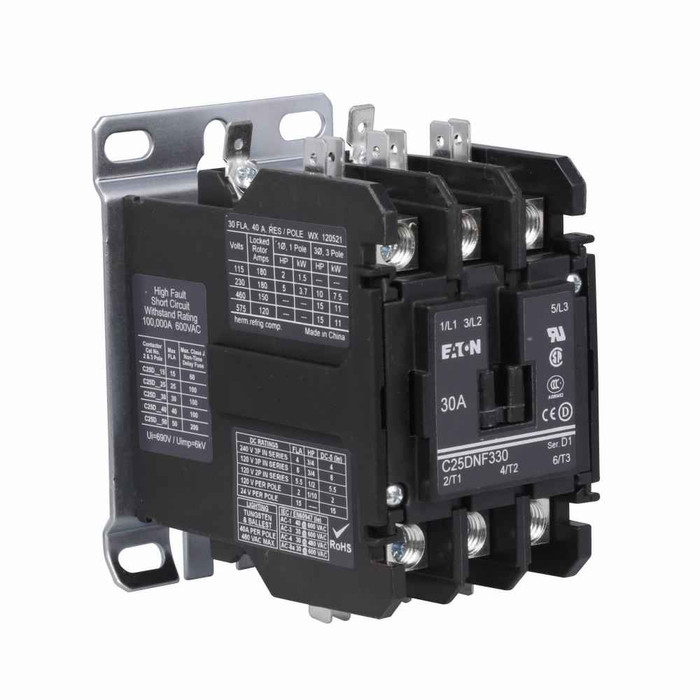

Eaton Definite Purpose Contactor 30A Three-Pole Quick Connect D1 Series Non-Reversing

Eaton Definite Purpose Contactor 30A Three-Pole Quick Connect D1 Series Non-Reversing

Professional Motor Control & Power Switching Equipment

The Eaton Definite Purpose Contactor 30A Three-Pole delivers exceptional motor control and power switching performance for commercial and industrial electrical applications. This 30A three-pole contactor provides reliable motor control and power distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance & Control

• 30A Inductive Full Load Rating - Professional motor control capacity with 40A resistive load capability for versatile electrical switching applications
• Three-Pole Configuration - Complete three-phase motor control with reliable contact operation for commercial and industrial power systems
• Dual Coil Voltage Options - 208-240 Vac and 440-480 Vac coil voltages at 50/60 Hz for flexible installation requirements
• D1 Series Design - Eaton's proven definite purpose contactor technology with 15-50A frame size for reliable motor switching

Installation & Connection Features

• Quick Connect Terminals - Fast and secure electrical connections with box lugs featuring posidrive setscrew terminals for professional installation
• Quick Connect Auxiliary Contacts - Side-by-side auxiliary contact configuration for control circuit integration and system monitoring
• Open Metal Mounting Plate - Versatile mounting configuration for panel and enclosure installation flexibility

Professional Quality & Compliance

• UL Recognized Certification - Professional electrical safety compliance for commercial and industrial installations
• RoHS Compliant Construction - Environmental compliance with global listed options for international applications
• Non-Reversing Design - Reliable motor control operation with consistent switching performance

Technical Specifications

Amperage Rating: 30A inductive full load, 40A resistive load; Configuration: Three-pole; Frame Size: 15-50A two-pole and three-pole; Series: D1; Coil Voltage: 208-240 Vac and 440-480 Vac, 50/60 Hz; Enclosure: Open with metal mounting plate; Terminals: Box lugs with posidrive setscrew; Auxiliary Contacts: Quick connect side-by-side; Type: Non-reversing definite purpose; Connection: Quick connect; Dimensions: 3.75" H x 2.4" W x 3.35" D; Weight: 1.3 lb; Certifications: UL Recognized; Compliance: RoHS Compliant

Installation & Usage

1. Mount contactor securely to metal mounting plate in appropriate electrical enclosure or panel
2. Connect three-phase power lines to main contact terminals using box lug connections with posidrive setscrews
3. Wire control circuit to appropriate coil voltage terminals (208-240V or 440-480V) following electrical codes
4. Connect auxiliary contacts for control circuit integration using quick connect terminals
5. Verify all electrical connections are tight and properly torqued per manufacturer specifications
6. Test contactor operation and control circuit functionality before energizing motor loads

Professional Applications

Ideal for:

• Motor Control Centers - Three-phase motor starting and stopping in industrial control panels and motor control centers
• HVAC Systems - Commercial air conditioning compressor control, fan motor switching, and heating system control
• Industrial Machinery - Manufacturing equipment motor control, conveyor systems, and automated machinery switching
• Pump Control Systems - Water pump motor control, irrigation systems, and fluid handling equipment switching
• Commercial Buildings - Elevator motor control, escalator systems, and building automation equipment
• Process Control - Industrial process equipment motor switching and automated control system integration
• Power Distribution - Electrical load switching and power distribution control in commercial facilities
• Lighting Control - High-power lighting system switching and commercial lighting control applications

Quick Connect Technology Advantage

Eaton's Quick Connect terminal design provides faster installation and maintenance with secure electrical connections. The combination of box lugs with posidrive setscrews and quick connect auxiliary contacts reduces installation time while ensuring reliable electrical performance for professional motor control applications.
