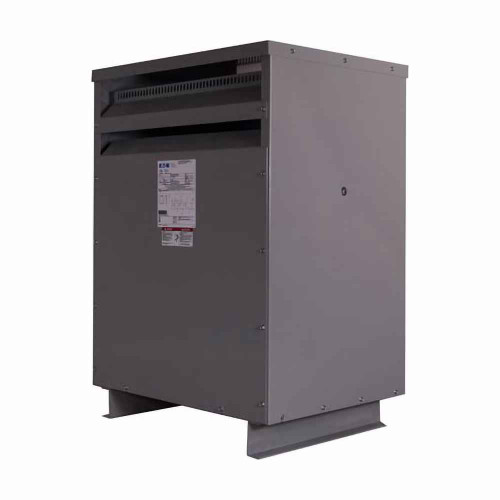

Eaton DOE 2016 Efficient Transformer, 75 kVAK13, Ventd XFMR 3PH 480-220Y/127 115C rise, Copper windings
Manufacturer Resources
Product Specs
- Catalog Notes:
- 10 CFR Part 431 (2016) Efficient
- Certifications:
- UL Listed
- Coil Material:
- Copper
- Compliances:
- DOE2016 Efficient
- Efficiency:
- 10 CFR Part 431-2016 (DOE 2016)
- Enclosure:
- NEMA 2
- Frame:
- 943
- Frequency Rating:
- 60 Hz
- Insulation:
- 220 °C
- Kva Rating:
- 75 kVA
- Phase:
- Three-phase
- Primary Voltage:
- 480 V
- Product Height:
- 51 in
- Product Length Depth:
- 31.5 in
- Product Weight:
- 1121 lb
- Product Width:
- 34.5 in
- Secondary Voltage:
- 220Y/127 V
- Sound Level:
- NEMA ST-20
- Tap Size:
- 2 at +2.5% FCAN, 4 at -2.5% FCBN
- Temperature Rise:
- 115 °C rise
- Volt Ampere Rating:
- 75 kVA
- Weathershield:
- WS60
- Wiring Connection:
- 283B
