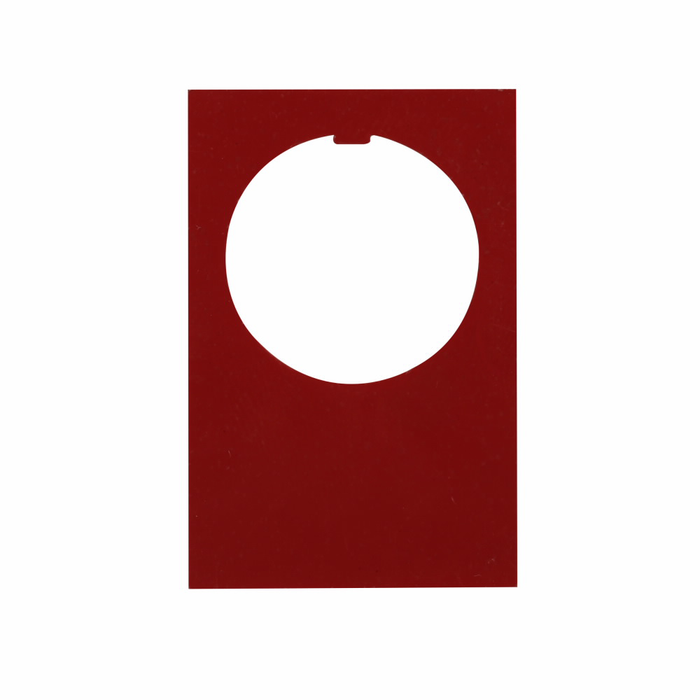

Eaton E22 Non-Metallic Heavy-Duty Pushbutton Legend Plate, NEMA 1

Eaton E22 Non-Metallic Heavy-Duty Pushbutton Legend Plate, NEMA 1

The Eaton E22 Non-Metallic Heavy-Duty Pushbutton Legend Plate is a standard-size, 22.5 mm legend plate built for Eaton's E22 pushbutton and pilot device line. Constructed with a plastic (bus material) body and rated NEMA 1, this legend plate is designed to identify pushbutton stations on control panels, machine enclosures, and industrial equipment. Certified to UL 508 and CE Marked, it delivers dependable, code-compliant labeling for commercial and industrial control applications. Finished with a black field and white lettering for clear visibility in busy control cabinets, this legend plate is a practical, low-cost way to help operators, technicians, and maintenance staff correctly identify pushbutton functions at a glance.

Key Features

• Type: 22.5 mm, Non-Metallic Heavy-Duty construction sized for standard E22 series pushbutton and pilot device openings.
• Durable Construction: Plastic bus material provides a rugged, non-metallic build suited for repeated use on control panels.
• Size: Standard legend plate dimensions for direct fit with Eaton E22 series operators and enclosures.
• Enclosure Rating: NEMA 1 rated for general-purpose indoor use on control panels and enclosures.
• Field Color: Black background for high-contrast legend visibility.
• Letter Color: White lettering for clear, at-a-glance identification of pushbutton function.
• Series: Part of the Eaton E22 pushbutton, indicating light, and selector switch platform.
• Compliance: UL 508 certified and CE Marked for use in commercial and industrial control panel assemblies.

Certifications & Compliance

• UL 508 Certified
• CE Marked
• NEMA 1 Enclosure Rating

Technical Specifications

• Product Type: Legend Plate
• Series: E22

Typical Applications

• Pushbutton Station Identification on Control Panels
• Industrial Machine Control Enclosures
• Commercial and Industrial Electrical Installations
• Panelboard and Operator Interface Labeling
• Renovation and New Construction Control Panel Upgrades

Why Eaton?

Eaton's E22 legend plates are built with durable plastic construction and UL 508 certification, giving electrical professionals a reliable way to label pushbutton stations on control panels. With NEMA 1 enclosure suitability and CE Marked compliance, this legend plate supports code-compliant, professional-grade control panel installations across commercial and industrial facilities. Eaton's E22 pushbutton platform is engineered for consistent fit and function across its full family of operators, indicating lights, selector switches, and legend plates, helping panel builders and maintenance teams standardize on a single, dependable pushbutton system. Choosing genuine Eaton E22 components helps ensure proper fit, long-term durability, and continued compliance with UL 508 requirements for control panel devices.
