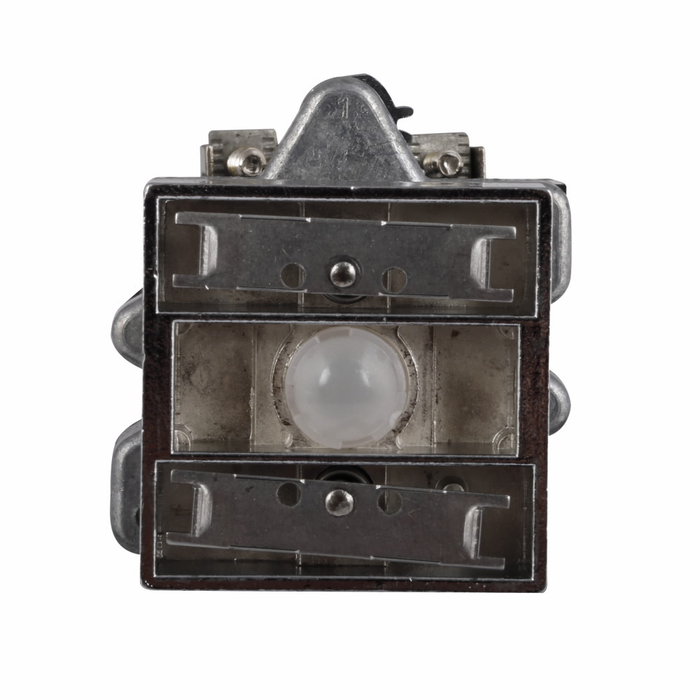

Eaton E30 30.5mm Square Multifunction Illuminated Pushbutton Light Unit

Eaton E30 30.5mm Square Multifunction Illuminated Pushbutton Light Unit

(No reviews yet) Write a Review

Model: E30ED

In Stock (leaves warehouse same day if ordered before 3pm ET)

$653.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E30 30.5mm Square Multifunction Illuminated Pushbutton Light Unit

The Eaton E30 30.5mm Square Multifunction Illuminated Pushbutton Light Unit is a two-button, illuminated operator engineered for demanding industrial control applications. This light unit uses an incandescent, transformer-type lamp (LED lamp number 6PSB) rated for 480 Vac, with a momentary operating mode on the bottom button, and a compact 2.1 in. product height. Rated NEMA 3, 3R, 4, 12, 13, this E30 Series component is suitable for indoor and outdoor industrial environments including washdown, dusty, and wet locations, and is CSA Certified for code-compliant performance on machine control panels and operator stations.

Key Features

  • Type: 30.5 mm, Square Multifunction operator light unit for standard E30 pushbutton stations.
  • Product Height: 2.1 in. compact profile for space-constrained panel layouts.
  • Actuator Configuration: Two button design with momentary operation on the bottom button for reliable, spring-return control signaling.
  • Light Unit Type: Incandescent, transformer light unit rated for 480 Vac; catalog notes confirm the light unit will also accept an LED lamp for future upgrades.
  • Illumination: Illuminated design provides clear visual status indication for operator awareness on the panel.
  • LED Lamp Number: 6PSB reference lamp for replacement and maintenance planning.
  • Environmental Rating: NEMA 3, 3R, 4, 12, 13 rated for use in wet, dusty, and washdown industrial environments.
  • Series: Part of the Eaton E30 Series of modular industrial control components.

Certifications & Compliance

  • CSA Certified
  • NEMA 3, 3R, 4, 12, 13 Rated Enclosure
  • Suitable for Wet, Dusty, and Washdown Locations

Technical Specifications

  • Warranty: 1 year
  • Series: E30
  • Department: Electrical

Typical Applications

  • Industrial Control Panels and Enclosures
  • Machine Operator Stations and HMI Panels
  • Two-Button Momentary Control Circuits
  • Washdown and Wet-Location Industrial Environments
  • Panelboard and Equipment Control Wiring
  • Renovation and New Industrial Control Installations

Why Eaton?

Eaton engineers the E30 Series for the reliability that industrial control applications demand, combining an illuminated, incandescent/transformer light unit with a NEMA 3, 3R, 4, 12, 13 rated enclosure and CSA Certification. Whether specified for a new machine build or a panel retrofit, this Eaton E30 light unit delivers consistent, code-compliant illuminated actuation backed by a 1 year warranty.

Manufacturer Resources

Product Specs

Illumination:
Illuminated
Product Height:
2.1 in
Light unit type:
Incandescent, transformer
Product Type:
Pushbutton Light Unit
LED lamp number:
6PSB
Warranty:
1 year
Catalog Notes:
Light unit will also accept LED lamp
Operating mode:
Bottom: momentary
Series:
E30
Actuator:
Two button
Certifications:
CSA Certified
Department:
Electrical
Voltage Rating:
480V
Configuration:
Two Button
Standards:
NEMA 3/3R/4/12/13
Listing:
CSA Certified
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton E30ED – Frequently Asked Questions

1) Does the Eaton E30 illuminated pushbutton light unit come in 240V as well as 480V?
Two light unit voltages are offered: a 240 Vac version, MPN E30EB, and a 480 Vac version, MPN E30ED. The voltage you pick has to match the control voltage feeding the lamp circuit in your panel, not the motor voltage. Order the E30EB for 240 Vac control and the E30ED for 480 Vac control.
2) Can I use this pushbutton in a washdown or outdoor location?
It is rated NEMA 3, 3R, 4, 12, and 13, which covers wet, dusty, and washdown duty as well as outdoor enclosures. The unit is also CSA Certified. The rating only holds if the enclosure it mounts into carries the same rating and the gasket is seated properly.
3) Is this a maintained or momentary pushbutton?
The bottom button operates momentary, so it is spring return and the contact only holds while the operator is pressing it. That suits start or jog signaling into a latching circuit. If your control scheme needs a button that stays in after release, a momentary unit is the wrong choice.
4) How many buttons does the Eaton E30 square multifunction unit have?
Two. It is a two button illuminated operator in a square multifunction body, commonly used for a start/stop or forward/reverse pair on one 30.5 mm hole instead of drilling two.
5) What lamp does this E30 light unit take, and can I put an LED in it?
The light unit is the incandescent, transformer type, and the catalog notes state it will also accept an LED lamp. The LED lamp reference number is 6PSB, which is what to order for a relamp or an LED upgrade on an existing unit.
6) Can I add this illuminated unit to an existing E30 pushbutton station?
Yes, it is a light unit for standard E30 pushbutton stations, part of Eaton's modular E30 line of industrial control components. That means you are adding it to an E30 operator assembly rather than buying it as a complete standalone station, so confirm what contact blocks and mounting hardware the existing station already carries.
