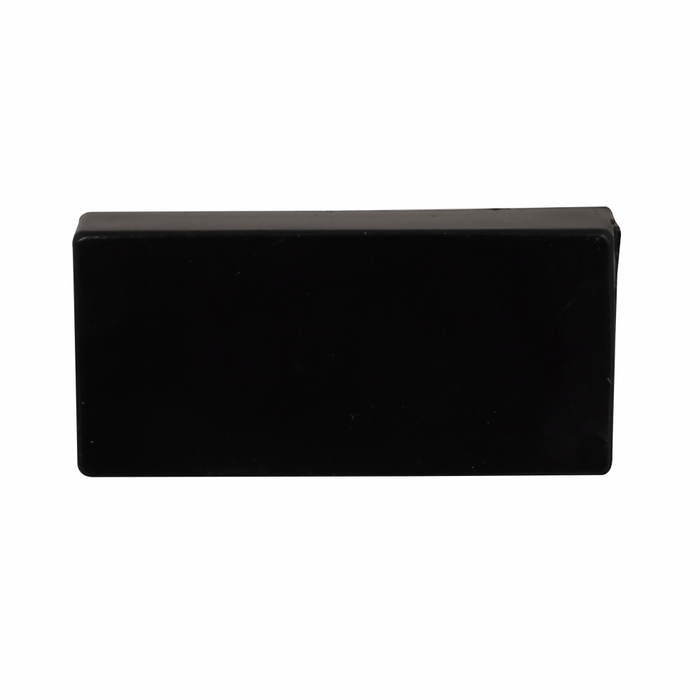

Eaton E30 Square Multifunction Pushbutton Legend Plate, Black, AUTO

Eaton E30 Square Multifunction Pushbutton Legend Plate, Black, AUTO

(No reviews yet) Write a Review

Model: E30KB101

In Stock (leaves warehouse same day if ordered before 3pm ET)

$21.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E30 Square Multifunction Pushbutton Legend Plate, Black, AUTO

The Eaton E30 Square Multifunction Pushbutton Legend Plate is a 30.5 mm watertight/oiltight component engineered for use with Eaton's E30 square multifunction pushbutton line. Featuring a black actuator and the "AUTO" legend in 3/16 inch high letters, this plate is designed to clearly identify pushbutton function on industrial control panels. Backed by UL Listing and Eaton's 1 year warranty, it delivers reliable, code-compliant performance for demanding control applications.

Key Features

  • Trade Size: 30.5 mm square multifunction watertight/oiltight design for use with compatible E30 pushbutton stations.
  • Compact Dimensions: Product width of .6 in and product height of .3 in for a low-profile fit within the pushbutton assembly.
  • Actuator Color: Black actuator for clear visual identification on the control panel.
  • Legend: "AUTO" legend in 3/16 inch high letters for clear function labeling.
  • Compatibility: Used with Pushbutton, square multifunction, for seamless integration into Eaton E30 pushbutton stations.
  • Watertight/Oiltight Rating: Sealed square multifunction design suited for washdown and industrial environments where moisture and oil exposure are a concern.

Certifications & Compliance

  • UL Listed

Technical Specifications

  • Warranty: 1 year
  • Series: E30

Typical Applications

  • Industrial Control Panels
  • Machine Automation Stations
  • Manufacturing and Process Equipment
  • Washdown and Wet-Environment Industrial Settings
  • OEM Panel Building and Retrofit Projects

Why Eaton?

Eaton's E30 series pushbutton components are built with watertight/oiltight sealing and UL Listed construction to deliver dependable performance in demanding industrial environments. Backed by a 1 year warranty, the E30 legend plate offers electrical professionals a trusted, code-compliant solution for clear pushbutton function identification.

Manufacturer Resources

Product Specs

Product Width:
.6 in
Used with:
Pushbutton, square multifunction
Legend:
AUTO
Special features:
Used with Pushbutton, square multifunction
Product Height:
.3 in
Product Type:
Pushbutton Legend Plate
Actuator color:
Black
Warranty:
1 year
Product category:
Button
Series:
E30
Certifications:
UL Listed
Department:
Electrical
Product Color:
Black
Listing:
UL Listed
Configuration:
Square Multifunction
Product Group:
Wiring Devices
Product Subgroup:
Push Buttons

Eaton E30KB101 – Frequently Asked Questions

1) What does the Eaton E30 AUTO legend plate actually fit?
It mounts on Eaton E30 square multifunction pushbuttons, the 30.5 mm watertight/oiltight style. It is the labeled plate that identifies the button function, not the operator or the contact block, so you still need the E30 pushbutton itself and its contact blocks to build a working station.
2) What is the difference between the Type B and Type C actuator styles on the E30 AUTO legend plate?
Two versions are offered, both extended actuator: Type B, Extended (MPN E30KB101) and Type C, Extended (MPN E30KC101). The legend reads AUTO and the actuator is black on both. Match the actuator type to the E30 operator already in your panel, since that is the only difference between the two part numbers.
3) How big is the E30 legend plate and how tall are the AUTO letters?
Product width is .6 in and height is .3 in, a low-profile piece that sits within the pushbutton assembly rather than standing off the panel. The AUTO legend is printed in 3/16 inch high letters, which is the readable size from normal operator standing distance at a machine station.
4) Does the black actuator color on this AUTO plate matter for color-coding a control panel?
Black is the actuator color here, which panel builders typically use for start or general-function buttons rather than stop or emergency stop. If you are color-coding a station, this AUTO plate keeps to that black convention; red is reserved for stop and E-stop functions.
