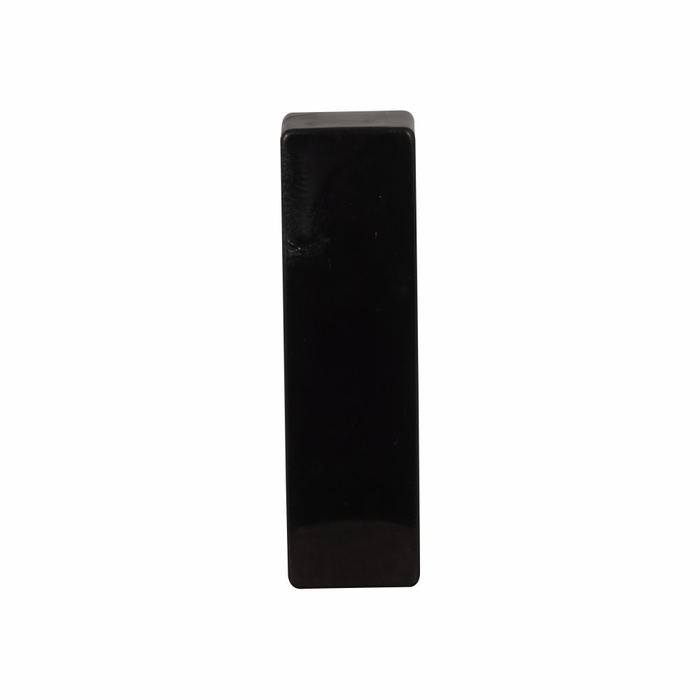

Eaton E30 Series Square Multifunction Pushbutton Legend Plate, Black, Watertight/Oiltight

Eaton E30 Series Square Multifunction Pushbutton Legend Plate, Black, Watertight/Oiltight

(No reviews yet) Write a Review

Model: E30KE125

In Stock (leaves warehouse same day if ordered before 3pm ET)

$21.83
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E30 Series Square Multifunction Pushbutton Legend Plate, Black, Watertight/Oiltight

The Eaton E30 Series Square Multifunction Pushbutton Legend Plate is engineered for use with 30.5 mm square multifunction pushbuttons in industrial control panels and machine operator stations. Built to a Watertight/Oiltight rating, this legend plate features a black actuator finish and clear 1/8 inch high lettering for fast, accurate operator identification on the panel face. Part of Eaton's trusted E30 pushbutton platform, it is designed to hold up in demanding manufacturing, process, and machine-control environments where legibility and durability both matter.

Key Features

  • Trade Size: 30.5 mm square multifunction footprint for direct fit with compatible Eaton E30 pushbuttons.
  • Durable Construction: Watertight/Oiltight rated design resists moisture and oil intrusion in industrial settings.
  • Type/Configuration: Square multifunction legend plate used with square multifunction pushbuttons for consistent panel layouts.
  • Actuator Color: Black actuator finish for high-visibility contrast against panel-mounted legend text.
  • Letter Size: 1/8 inch high lettering keeps legend text legible from typical operator viewing distances.
  • Series: Part of the Eaton E30 pushbutton and pilot device platform for cross-compatible panel builds.

Certifications & Compliance

  • Watertight/Oiltight Rated Construction

Technical Specifications

  • Product Width: 4 in
  • Used with: Pushbutton, square multifunction
  • Type: 30.5 mm, Square Multifunction Watertight/Oiltight
  • Actuator color: Black
  • Letter size: 1/8 in high
  • Product category: Button
  • Warranty: 1 year
  • Series: E30

Typical Applications

  • Industrial Machine Control Panels
  • Manufacturing and Process Equipment
  • Pushbutton Station Labeling
  • Wet, Oily, and Wash-Down Industrial Environments
  • Panel Retrofits and New Machine Builds

Why Eaton?

Eaton's E30 Series pairs a Watertight/Oiltight legend plate with a black actuator and legible 1/8 inch high lettering, giving panel builders a dependable way to label square multifunction pushbuttons in tough industrial conditions. Backed by a 1 year warranty, the E30 platform is built for consistent, code-compliant performance across commercial and industrial control applications.

Manufacturer Resources

Product Specs

Product Width:
4 in
Used with:
Pushbutton, square multifunction
Legend:
REVERSE
Product Type:
Legend Plate
Actuator color:
Black
Warranty:
1 year
Letter size:
1/8 in high
Product category:
Button
Series:
E30
Department:
Electrical
Product Color:
Black
Configuration:
Square Multifunction
Product Size:
30.5 mm
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton E30KE125 – Frequently Asked Questions

1) Will an Eaton E30 legend plate fit a 30.5 mm pushbutton hole?
Yes. The E30 legend plate is sized for the 30.5 mm square multifunction pushbutton footprint, which is the standard large-format operator device hole. It mounts under the pushbutton bezel on that same opening, so no extra panel cutout work is needed on a panel already drilled for 30.5 mm devices.
2) Can this legend plate be used in a wash-down or oily machine area?
It is built to a Watertight/Oiltight rating, so it is intended for panels exposed to moisture, coolant, and oil, such as machine tool stations and process equipment. The enclosure and the pushbutton itself have to carry the same rating for the assembly to hold up.
3) How wide is the Eaton E30 square legend plate on the panel face?
Product width is 4 inches, so allow that much clear space across each device position when laying out a row of buttons. Crowding stations closer than that will not leave room for the plate to sit flat.
4) Is the black legend plate legible from a normal operator standing distance?
Lettering is 1/8 inch high in a clear color on a black plate, which reads fine at typical operator working distance at the panel face. For labels meant to be read from across a plant floor, you want a larger legend size than this.
