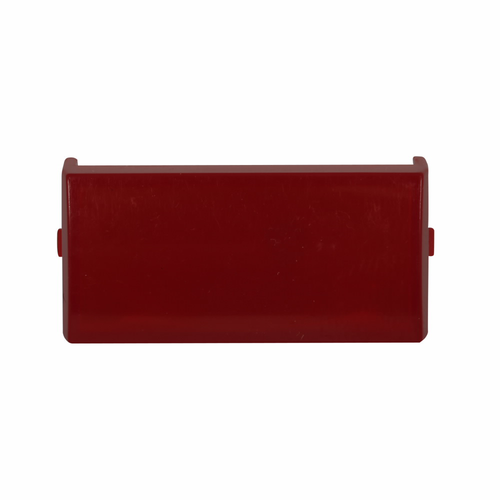

Eaton E30 Series Square Multifunction Pushbutton Lens, Watertight/Oiltight

Eaton E30 Series Square Multifunction Pushbutton Lens, Watertight/Oiltight

(No reviews yet) Write a Review

Model: E30KG20

In Stock (leaves warehouse same day if ordered before 3pm ET)

$11.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E30 Series Square Multifunction Pushbutton Lens, Watertight/Oiltight

The Eaton E30 Series Square Multifunction Pushbutton Lens is a 30.5 mm Square Multifunction Watertight/Oiltight lens designed for use with Eaton E30CA through CM and DA through DM pushbutton operators. Measuring 1.5 in wide, 1 in deep, and .5 in high, this blank-legend lens features a Green actuator color and a Type G actuator, and is UL Listed for reliable performance in industrial control panel applications.

Key Features

  • Compact Dimensions: 1.5 in wide x 1 in deep x .5 in high for precise fit on square multifunction pushbutton operators.
  • Type: 30.5 mm, Square Multifunction Watertight/Oiltight design for use in demanding industrial environments.
  • Actuator Color: Green actuator color for clear visual identification at the control station.
  • Actuator Type: Type G actuator configuration compatible with Eaton E30 series operators.
  • Legend: Blank legend allows for custom labeling or use as a plain indicator lens.
  • Letter Size: 3/16 in high lettering standard for legend engraving when applicable.
  • Compatibility: Used with Pushbutton, square multifunction; compatible with E30CA through CM and DA through DM operators.

Certifications & Compliance

  • UL Listed

Technical Specifications

  • Product Type: Pushbutton Lens
  • Warranty: 1 year
  • Series: E30

Typical Applications

  • Industrial Control Panels
  • Machine Operator Interface Stations
  • Manufacturing and Process Equipment
  • Wet or Oily Industrial Environments
  • OEM Panel Building and Retrofits

Why Eaton?

Eaton's E30 Series pushbutton lens is built to a Watertight/Oiltight standard and is UL Listed, giving electrical professionals a dependable component for industrial pushbutton assemblies. Backed by a 1 year warranty, this lens delivers consistent fit and function when paired with compatible E30 series operators for code-compliant, professional installations.

Manufacturer Resources

Product Specs

Product Width:
1.5 in
Used with:
Pushbutton, square multifunction
Product Length/Depth:
1 in
Special features:
Used with Pushbutton, square multifunction
Product Height:
.5 in
Product Type:
Pushbutton Lens
Actuator color:
Green
Warranty:
1 year
Catalog Notes:
Use with E30CA through CM and DA through DM operators
Letter size:
3/16 in high
Product category:
Lens
Series:
E30
Actuator:
Type G
Certifications:
UL Listed
Department:
Electrical
Product Color:
Green
Configuration:
Square Multifunction
Listing:
UL Listed
Product Group:
Wiring Devices
Product Subgroup:
Push Buttons

Eaton E30KG20 – Frequently Asked Questions

1) Which Eaton E30 pushbutton operators does the E30KG20 lens fit?
The E30KG20 lens is made for Eaton E30 square multifunction pushbutton operators, specifically the E30CA through CM and DA through DM range. If your operator falls outside those catalog ranges, this lens is not the matching part.
2) Can this Eaton lens be used on a washdown or oily machine station?
Yes. The E30 square multifunction lens is built to a watertight/oiltight 30.5 mm standard, so it suits machine stations exposed to coolant, cutting oil, and washdown, provided it is mounted on a matching watertight/oiltight E30 operator.
3) I just need to replace a cracked green lens on an Eaton pushbutton, do I have to buy the whole operator?
No. The E30KG20 is the lens alone, sold as a replacement part for E30 square multifunction pushbuttons. The operator, contact blocks, and mounting stay in the panel; you swap only the lens. Order by MPN E30KG20 to get green with the Type G actuator.
4) Does the Eaton E30KG20 pushbutton lens come with a legend printed on it?
No legend. It ships blank, so you either use it as a plain green indicator or have it engraved to your panel drawing. Standard lettering for that engraving is 3/16 in high.
5) What size is the Eaton E30 square multifunction lens, and will it fit a 30.5 mm panel cutout?
It measures 1.5 in wide by 1 in deep by .5 in high and is part of the 30.5 mm E30 line, so it works with the standard 30.5 mm hole your E30 operator is already mounted in. The lens itself does not set the cutout, the operator does.
6) Is the Eaton E30KG20 lens UL Listed for an industrial control panel?
UL Listed, which is what a panel shop or plant maintenance group needs when standardizing operator components across a listed control panel build.
7) What color is the E30KG20 lens, and what is a Type G actuator?
Green, with a Type G actuator configuration. Green is the usual start or run indication at an operator station, and the Type G designation is the actuator style that mates with the E30 square multifunction operators, so match both the color and the actuator type when reordering to keep a bank of buttons consistent.
