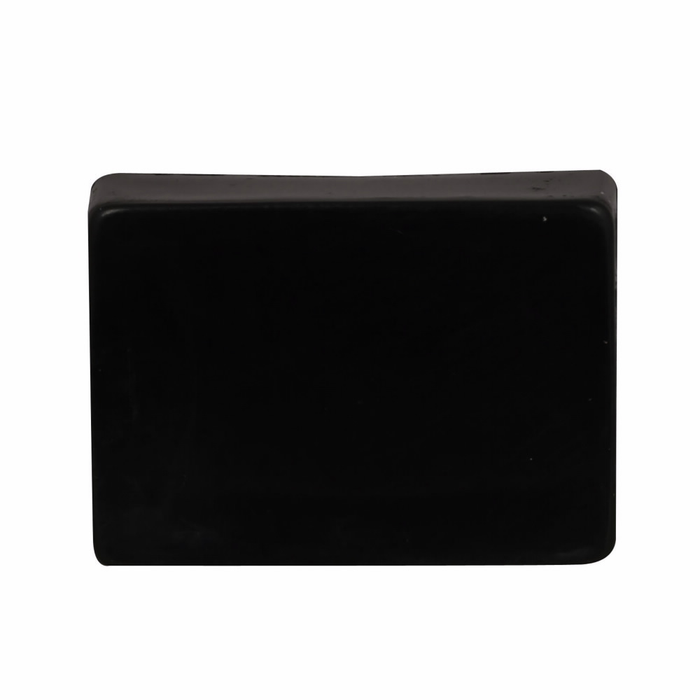

Eaton E30 Square Multifunction Watertight/Oiltight Pushbutton, Black Actuator, RAISE Legend

Eaton E30 Square Multifunction Watertight/Oiltight Pushbutton, Black Actuator, RAISE Legend

The Eaton E30 Square Multifunction Watertight/Oiltight Pushbutton is a 30.5 mm operator component engineered for reliable performance on industrial control panels and pushbutton stations. Finished with a black actuator and marked with a RAISE legend for fast function identification, this E30 series component carries a Watertight/Oiltight rating suited to plant-floor environments where dust, moisture, and oil exposure are a concern. It is UL Listed, designed for use with Eaton square multifunction pushbutton assemblies, and measures 4 in wide x 5 in long/deep x .3 in high.

Key Features

• Compact Footprint: Measures 4 in wide x 5 in long/deep x .3 in high, fitting standard panel cutouts without adding bulk.
• 30.5 mm Square Multifunction: Watertight/Oiltight construction resists moisture and oil intrusion in demanding industrial settings.
• RAISE Legend: Clearly marked black actuator improves operator recognition and helps reduce switching errors on the panel.
• Compatible Platform: Designed for use with Eaton square multifunction pushbutton assemblies for straightforward integration.
• E30 Series: Part of Eaton's E30 line of industrial pushbuttons and operator interface components.
• 1-Year Warranty: Backed by Eaton's manufacturer warranty for added peace of mind.

Certifications & Compliance

• UL Listed
• Watertight/Oiltight Rated Construction

Technical Specifications

• Warranty: 1 year
• Series: E30
• Type: 30.5 mm, Square Multifunction Watertight/Oiltight
• Actuator Color: Black
• Legend: RAISE
• Used With: Pushbutton, square multifunction
• Product Width: 4 in
• Product Length/Depth: 5 in
• Product Height: .3 in

Typical Applications

• Industrial Control Panels
• Pushbutton and Operator Interface Stations
• Machine Control and Automation Systems
• Wet, Damp, and Oily Industrial Environments
• Manufacturing and Process Control Facilities

Why Eaton?

Eaton's E30 series pushbuttons are built for the realities of industrial operation, combining a Watertight/Oiltight rated, UL Listed design with a clearly legended black actuator for dependable, code-compliant performance. Backed by a 1-year manufacturer warranty, this E30 Square Multifunction Pushbutton delivers the consistent operator interface reliability that control panel builders and maintenance teams rely on.
