Eaton Corrosion-Resistant Watertight/Oiltight Incandescent Indicating Light

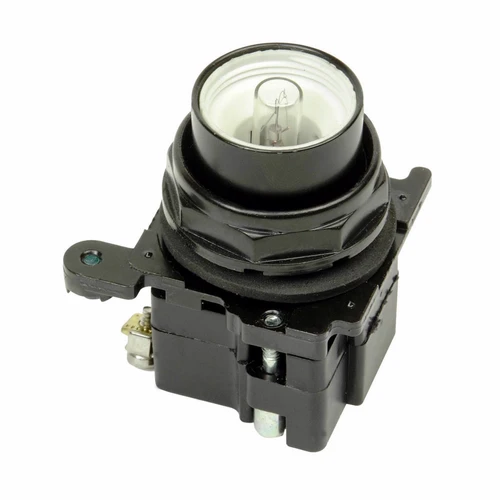

The Eaton Corrosion-Resistant Watertight/Oiltight Incandescent Indicating Light is a 30.5 mm pilot light built for harsh-duty control panels and enclosures that demand reliable visual status indication. Featuring an incandescent, transformer-driven light unit and the convenient PresTest actuator for in-place bulb testing, this indicating light is rated NEMA 3, 3R, 3S, 4, 4X, 12, 13 for 480 V applications and is part of Eaton's E34 series (E34TPB). UL Listed for use in commercial and industrial electrical systems, it's engineered to withstand washdown, oil exposure, and outdoor environments while keeping operators informed at a glance.

Key Features

  • Type: 30.5 mm Corrosion Resistant Watertight/Oiltight indicating light construction for demanding industrial environments.
  • Light Unit: Incandescent, transformer-type light unit for dependable visual signaling.
  • PresTest Actuator: Allows quick lamp testing without removing the lens cap, minimizing downtime during maintenance checks.
  • Environmental Rating: NEMA 3, 3R, 3S, 4, 4X, 12, 13 rated for washdown, outdoor, and corrosive-environment installations.
  • Voltage: 480 V rated for use in industrial control circuits.
  • Series: Part of the Eaton E34 series (E34TPB), designed for corrosion-resistant pushbutton and pilot light stations.
  • Catalog Note: Where exposed to ultraviolet light, Eaton recommends pairing with NEMA 4X 10250T operators for extended service life.

Certifications & Compliance

  • UL Listed
  • NEMA 3, 3R, 3S, 4, 4X, 12, 13 Rated

Technical Specifications

  • Warranty: 1 year
  • Series: E34
  • Light Unit Type: Incandescent, transformer
  • Type: 30.5 mm, Corrosion Resistant Watertight/Oiltight
  • Actuator: PresTest
  • Voltage: 480 V
  • Certifications: UL Listed

Typical Applications

  • Industrial Control Panels and Enclosures
  • Machine and Equipment Status Indication
  • Wet, Washdown, and Outdoor Industrial Environments
  • Oil and Gas and Harsh-Environment Installations
  • Panelboard and Control Station Indication
  • Renovation and New Industrial Construction

Why Eaton?

Eaton's E34 series indicating lights combine corrosion-resistant, watertight and oiltight construction with a UL Listed design rated across multiple NEMA environments, giving electrical professionals confidence in tough, wash-down, and outdoor applications. The incandescent transformer light unit paired with the PresTest actuator simplifies maintenance while the 480 V rating supports demanding industrial control circuits. Backed by Eaton's 1-year warranty, this indicating light delivers the code-compliant, reliable performance electrical contractors expect from Eaton electrical products.

Manufacturer Resources

Product Specs

Light unit type:
Incandescent, transformer
Product Type:
Indicating Light
Warranty:
1 year
Series:
E34
Actuator:
PresTest
Certifications:
UL Listed
Department:
Electrical
Voltage Rating:
480V
Listing:
UL Listed
Standards:
NEMA 3/3R/3S/4/4X/12/13
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton E34TPB480 – Frequently Asked Questions

1) Will an Eaton E34 pilot light hold up in a washdown or outdoor panel?
Yes. The Eaton E34 indicating light is built as a 30.5 mm corrosion-resistant watertight/oiltight unit and carries NEMA 3, 3R, 3S, 4, 4X, 12 and 13 ratings, so it covers rain and outdoor exposure (3, 3R, 3S), hosedown and corrosive washdown (4, 4X), and oil or coolant splash inside a machine enclosure (12, 13). It is also UL Listed.
2) What panel hole size does the Eaton E34 indicating light mount in?
It is a 30.5 mm device, which is the standard heavy-duty control panel cutout used for industrial pushbuttons and pilot lights. If your existing station is punched for 30.5 mm operators, this drops into the same hole.
3) What voltage control circuit is this Eaton pilot light rated for?
480 V. It is intended for industrial control circuits at that rating, which is why the light unit is the transformer type rather than a direct-voltage lamp.
4) Can I test the lamp on this Eaton pilot light without pulling the lens?
Yes, that is what the PresTest actuator does. You press the lens cap in place and the lamp lights, so a technician can confirm a burned-out bulb during a walkdown without opening the enclosure or removing the cap.
5) Is the Eaton E34 indicating light LED or incandescent?
Incandescent, transformer type. The transformer steps the control voltage down to the lamp, so the replacement bulb is a low-voltage incandescent rather than a full-line-voltage lamp. If your maintenance standard has moved to LED lamp units, this is not that device.
6) Which Eaton E34 part numbers should I order?
Two catalog numbers cover this indicating light: E34TPB240 and E34TPB480. Quote the full number on your order, since the trailing digits are what separate the two.
7) Will this pilot light survive direct sunlight on an outdoor control station?
Where the device sees ultraviolet light, Eaton's own guidance is to pair it with NEMA 4X 10250T operators for longer service life. Plan the station that way for rooftop, yard, or south-facing outdoor mounting rather than relying on the E34 unit alone under constant UV.
8) Is this indicating light suitable for a food plant or chemical area panel that gets hosed down?
Yes. The NEMA 4X rating covers hosedown plus corrosion resistance, and 12/13 cover oil and coolant ingress, which is the combination facility and MRO buyers usually specify for washdown production areas and chemical handling rooms. It is UL Listed for use in commercial and industrial electrical systems.
