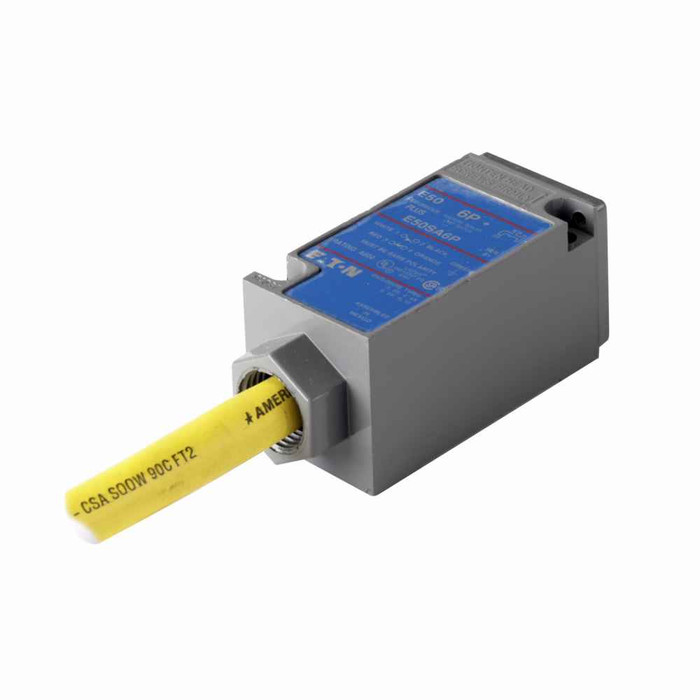

Eaton E50SA6P12 E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 12 Ft. ( 3.7m ) Cable, 10A at 240Vac, 1A at 250Vdc, SOOW-A, 1NO-1NC, 144Foot, Die Cast Zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K, 10A, 1A, -29° to 221°F (-34° to 105°C)

Eaton E50SA6P12 E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 12 Ft. ( 3.7m ) Cable, 10A at 240Vac, 1A at 250Vdc, SOOW-A, 1NO-1NC, 144Foot, Die Cast Zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K, 10A, 1A, -29° to 221°F (-34° to 105°C)

(No reviews yet) Write a Review

Model: E50SA6P12
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$502.31
$452.31
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton E50 Heavy Duty Factory Sealed 6P+ Limit Switch, 12 Ft. ( 3.7m ) Cable, 10A at 240Vac, 1A at 250Vdc, SOOW-A, 1NO-1NC, 144Foot, Die Cast Zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, IP69K, 10A, 1A, -29° to 221°F (-34° to 105°C)

Manufacturer Resources

Product Specs

Cable Type:
SOOW-A
Catalog Notes:
Switch body only; full switch requires a switch body and operating head.
Certifications:
CSA Certified
Compliances:
CE Marked
Connection:
12 ft (3.7 m) cable
Contact Configuration:
1 NO-1 NC
Contact Rating:
10A at 240Vac, 1A at 250Vdc
Cord Length:
144 ft
Enclosure Material:
Die cast zinc
Environmental Rating:
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67, IP69K
Maximum Ac Current:
10:00 AM
Maximum Dc Current:
1:00 AM
Operating Temperature Max:
221 °F
Operating Temperature Min:
-29 °F
Product Height:
3.58 in
Product Length Depth:
1.54 in
Product Weight:
2.1188 lb
Product Width:
1.58 in
Product Group:
Electrical
!
