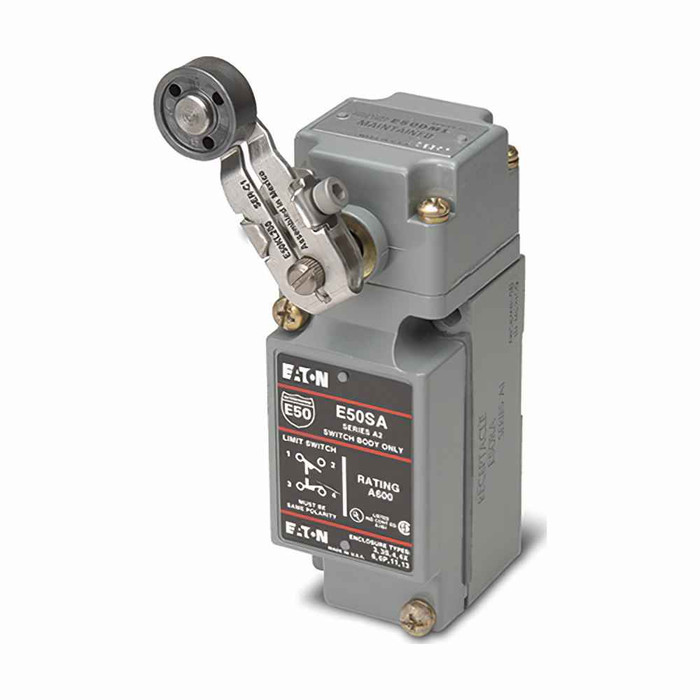

Eaton E50 NEMA heavy duty plug-in limit switch, Within 0.003, 5 Pin Mini Connector, 10A at 240Vac, 1A at 250Vdc, 1NO-1NC, Die Cast Zinc, NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13, IP67, 10A, 1A, 14° to 201°F (-10° to 94°C), Side Push Roller
Manufacturer Resources
Product Specs
- Accuracy:
- Within 0.003
- Certifications:
- UL Listed
- Compliances:
- RoHS Compliant
- Connection:
- 5-pin mini connector
- Contact Configuration:
- 1 NO-1 NC
- Contact Rating:
- 10A at 240Vac, 1A at 250Vdc
- Enclosure Material:
- Die cast zinc
- Environmental Rating:
- NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
- Maximum Ac Current:
- 10:00 AM
- Maximum Dc Current:
- 1:00 AM
- Operating Temperature Max:
- 201 °F
- Operating Temperature Min:
- 14 °F
- Product Height:
- 4.22 in
- Product Length Depth:
- 1.54 in
- Product Weight:
- 1.275 lb
- Product Width:
- 2.94 in
- Switch Type:
- Side push roller
- Product Group:
- Electrical
