Eaton E50AT3 E50 NEMA heavy du...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$596.21
$546.21

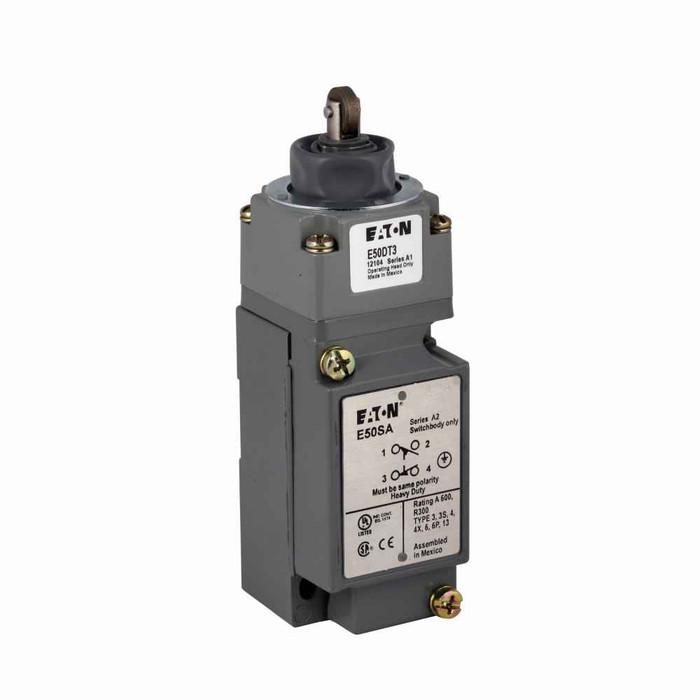

Eaton E50AT3 E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 240 Vac,1A at 250 Vdc,E50DT3,E50DT3,Top push roller,spring return,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A contin,1A,14°to201°F,E50

Eaton E50AT3 E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 240 Vac,1A at 250 Vdc,E50DT3,E50DT3,Top push roller,spring return,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A contin,1A,14°to201°F,E50

(No reviews yet) Write a Review

Model: E50AT3
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$596.21
$546.21
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton E50 NEMA heavy duty plug-in limit switch,Assembly,Screw Terminals,10A at 240 Vac,1A at 250 Vdc,E50DT3,E50DT3,Top push roller,spring return,1NO-1NC,Die cast zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A contin,1A,14°to201°F,E50

Manufacturer Resources

Product Specs

Accessories:
E50DT3
Actuator:
Top push roller, spring return
Certifications:
CSA Certified
Compliances:
RoHS Compliant
Connection:
Screw terminal
Contact Configuration:
1 NO-1 NC
Contact Rating:
10A at 240 Vac, 1A at 250 Vdc
Enclosure Material:
Die cast zinc
Environmental Rating:
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Maximum Ac Current:
10 A continuous
Maximum Dc Current:
1:00 AM
Operating Temperature Max:
201 °F
Operating Temperature Min:
14 °F
Product Height:
2 in
Product Length Depth:
5 in
Product Weight:
1.146 lb
Product Width:
2.25 in
Series:
E50
Type:
Assembly
Product Group:
Electrical
!
