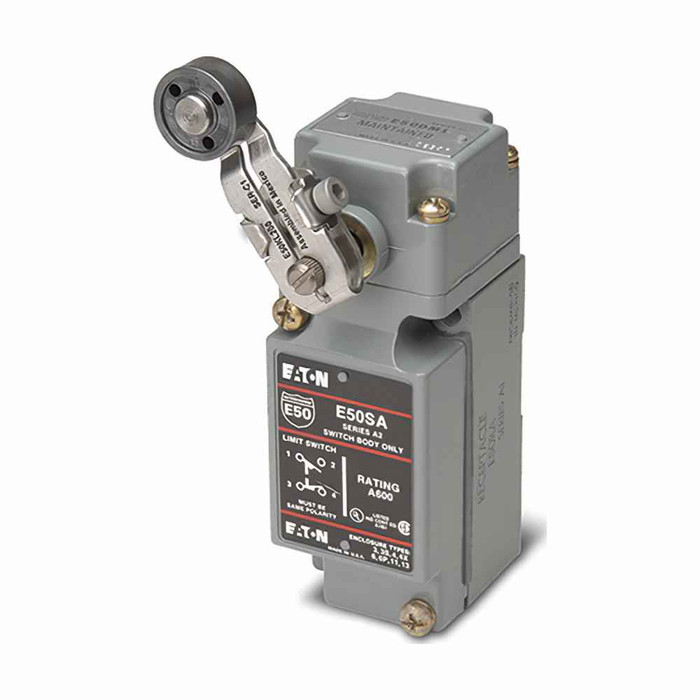

Eaton E50 NEMA heavy duty plug-in limit switch,Screw Terminals,10A at 240Vac,1A at 250Vdc,2NO-2NC,Die Cast Zinc,NEMA 1,3,3S,4,4X,6,6P,13,IP67,10A,1A,-40° to 174°F (-40° to 79°C),Side Rotary
Manufacturer Resources
Product Specs
- Accuracy:
- Refer to installation publication P15836
- Certifications:
- UL Listed
- Compliances:
- RoHS Compliant
- Connection:
- Screw terminal
- Contact Configuration:
- 2 NO-2 NC
- Contact Rating:
- 10A at 240Vac, 1A at 250Vdc
- Enclosure Material:
- Die cast zinc
- Environmental Rating:
- NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
- Maximum Ac Current:
- 10:00 AM
- Maximum Dc Current:
- 1:00 AM
- Operating Temperature Max:
- 174 °F
- Operating Temperature Min:
- -40 °F
- Product Height:
- 1.7 in
- Product Length Depth:
- 1.54 in
- Product Weight:
- 1.1063 lb
- Product Width:
- 2.46 in
- Switch Type:
- Side rotary
- Product Group:
- Electrical
