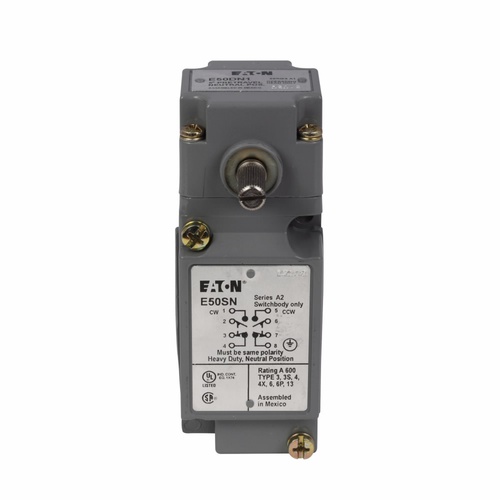

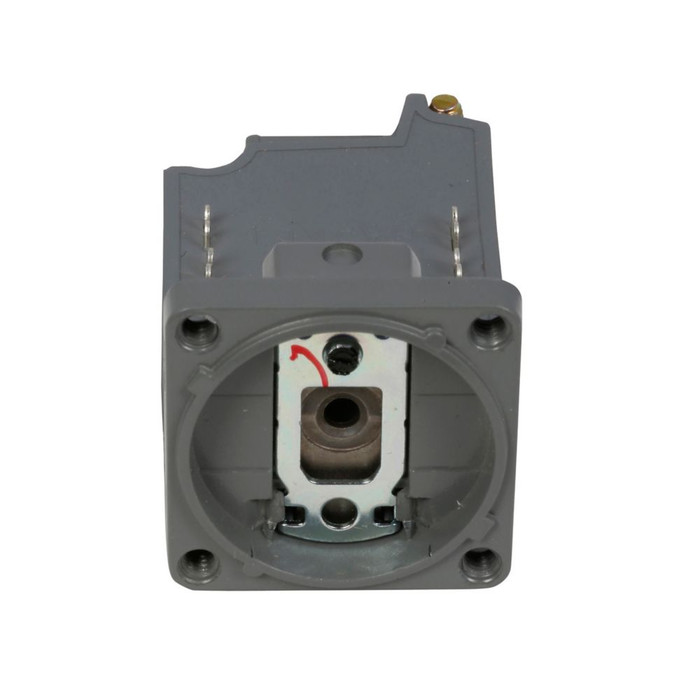

The Eaton E50 Heavy-Duty Plug-In Limit Switch is a NEMA-rated industrial control device built around a die cast zinc enclosure for durability in demanding environments. Configured with 2NO-2NC contacts, this two-pole switch carries a contact rating of 10A at 12 Vac and 1A at 125 Vdc, making it suited for position sensing and interlock duty across a wide range of NEMA 1, 3, 3S, 4, 4X, 6, 6P, and 13 rated locations, plus IP67 protection. CSA Certified and RoHS Compliant, the E50 series delivers dependable switching performance for commercial and industrial control panels.
Key Features
- Contact Configuration: 2NO-2NC arrangement supports redundant or dual-circuit switching logic in a single device.
- Durable Construction: Die cast zinc enclosure provides a rugged, corrosion-resistant housing suited to heavy-duty plug-in service.
- Contact Rating: Rated 10A at 12 Vac and 1A at 125 Vdc for reliable low-voltage control circuit switching.
- Two-Pole Design: Two-pole configuration for straightforward integration into existing control wiring.
- Wide Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, and 13 ratings plus IP67 protection support indoor, outdoor, washdown, and wet-location installations.
- Operating Temperature Range: Rated from -40°F to 250°F for use across demanding thermal environments.
- Heavy-Duty Plug-In Series: Part of the Eaton E50 heavy duty plug-in limit switch series for simplified installation and replacement.
Certifications & Compliance
- CSA Certified
- RoHS Compliant
- NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13 Rated
- IP67 Rated
Technical Specifications
- Series: E50 heavy duty plug in
- Number of Poles: Two-pole
- Contact Configuration: 2 NO-2 NC
- Contact Rating: 10A at 12 Vac, 1A at 125 Vdc
- Maximum AC Current: 10 A
- Maximum DC Current: 1 A
- Enclosure Material: Die cast zinc
- Product Width: 1.54 in
- Product Length/Depth: 3.14 in
- Product Height: 1.73 in
- Operating Temperature - Max: 250 °F
- Operating Temperature - Min: -40 °F
- Environmental Rating: NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
- Certifications: CSA Certified
- Compliances: RoHS Compliant
- Warranty: 1 year
Typical Applications
- Industrial Machinery Position Sensing
- Conveyor System End-of-Travel Detection
- Safety Interlock Circuits
- Heavy-Duty Industrial Control Panels
- Outdoor and Wash-Down Environments
- Commercial and Industrial Electrical Installations
Why Eaton?
Eaton builds the E50 heavy duty plug-in limit switch on a die cast zinc enclosure with a broad NEMA and IP67 environmental rating spread, giving it the durability to hold up in washdown, outdoor, and industrial control environments. CSA Certification and RoHS Compliance back its use in professional electrical and machine control applications where dependable, code-compliant switching performance is required.
