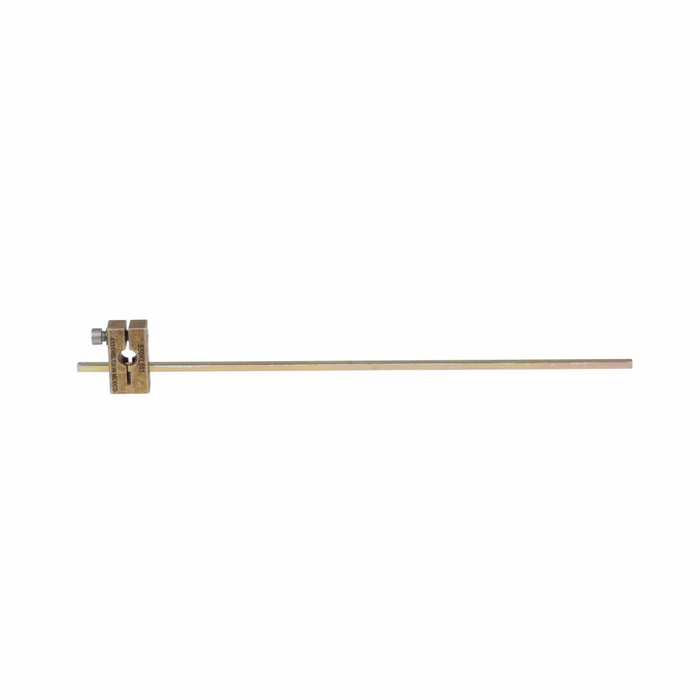

Eaton E50 Limit Switch Operator, Metal

Eaton E50 Limit Switch Operator, Metal

(No reviews yet) Write a Review

Model: E50KL581

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.66
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton E50 Limit Switch Operator, Metal

The Eaton E50 Limit Switch Operator is a metal accessory engineered for use with side rotary limit switches in industrial control and safety-interlock systems. This operator delivers a 1.5 in-oz minimum return force and is rated for operating temperatures from 10 °F to 200 °F, making it suitable for demanding factory-floor environments. Backed by a broad environmental rating and UL Listing, the E50 series operator is built for reliable, code-compliant performance in Eaton limit switch assemblies.

Key Features

  • Series: Part of the Eaton E50 limit switch series, designed as a dedicated operator accessory.
  • Durable Construction: Metal construction for long-term durability in industrial control environments.
  • Side Rotary Compatibility: Used with side rotary limit switches for accurate position sensing.
  • Return Force: 1.5 in-oz minimum return, ensuring dependable operator reset after actuation.
  • Operating Temperature Range: Rated from 10 °F minimum to 200 °F maximum for use across varied industrial conditions.
  • Environmental Rating: NEMA 1, 3, 3S, 4, 4X, 6, 6P, 13 and IP67 rated for use in wet, dusty, and washdown locations.
  • Warranty: Backed by Eaton's 1 year warranty.

Certifications & Compliance

  • UL Listed
  • RoHS Compliant
  • NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13 Rated
  • IP67 Rated

Technical Specifications

  • Product Type: Pushbutton Operator
  • Series: E50
  • Warranty: 1 year
  • Material: Metal
  • Used With: Side rotary limit switches
  • Minimum Return: 1.5 in-oz
  • Operating Temperature - Max: 200 °F
  • Operating Temperature - Min: 10 °F

Typical Applications

  • Industrial Machine Safety Interlocks
  • Side Rotary Limit Switch Assemblies
  • Position Sensing in Harsh or Washdown Environments
  • Panel and Enclosure-Mounted Control Systems
  • Outdoor and Wet-Location Industrial Installations

Why Eaton?

Eaton's E50 series limit switch operators are built with durable metal construction and a broad NEMA and IP67 environmental rating, giving electrical professionals confidence in demanding industrial applications. UL Listed and RoHS Compliant, this operator accessory is engineered to deliver dependable, code-compliant performance as part of Eaton's trusted sensing solutions lineup.

Manufacturer Resources

Product Specs

Used with:
Used with side rotary
Special features:
Used with Used with side rotary
Product Type:
Limit Switch Operator
Product Material:
Metal
Operating temperature - max:
200 °F
Operating temperature - min:
10 °F
Warranty:
1 year
Series:
E50
Compliances:
RoHS Compliant
Certifications:
UL Listed
Department:
Electrical
Listing:
UL Listed
Standards:
RoHS Compliant
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton E50KL581 – Frequently Asked Questions

1) What does the Eaton E50 limit switch operator actually do, and does it work on any limit switch?
The E50 operator is the actuating head that mounts on a limit switch body, not a complete switch. It is built specifically for use with side rotary limit switches. If your switch is a plunger, top roller, or wobble stick style, this is the wrong head. Construction is metal.
2) Which actuator styles does the Eaton E50 operator come in?
Two actuator styles: a standard ball bearing roller (E50KL553) and an adjustable rod (E50KL581). Pick the roller when a cam or moving machine member sweeps past the lever at a fixed radius; pick the adjustable rod when you need to tune the contact length to reach the target. Both are side rotary heads.
3) Can the Eaton E50 operator be used in a washdown or outdoor area?
Yes. The E50 operator carries NEMA 1, 3, 3S, 4, 4X, 6, 6P and 13 ratings plus IP67, which covers dust, hosedown, and temporary immersion. It is also UL Listed and RoHS compliant. The sealing rating only holds if the switch body it mounts to is sealed to the same level.
4) Do I get a complete limit switch when I order an Eaton E50KL553 or E50KL581?
No. Both are operator heads only. You order the E50 switch body, contact block, and receptacle separately and assemble them. That modular approach is why an MRO shop can stock one body style and swap between the ball bearing roller head and the adjustable rod head as the application changes.
5) Will the E50 operator hold up in a cold warehouse or next to a hot process line?
Its rated operating range is 10 degrees F minimum to 200 degrees F maximum. That covers unheated indoor plants and hot machine areas like ovens, dryers, and press lines, but it is not rated for sub-zero freezer or outdoor winter service.
6) Does the E50 head spring back on its own after the machine member passes?
Yes, it resets itself. The operator is specified with a 1.5 in-oz minimum return force, so the lever returns to its home position once the actuating cam or arm clears it. No external return spring or reset is needed.
7) Is a metal operator head worth it over a plastic one for a factory floor?
On a machine where a cam, pallet, or conveyor flight strikes the lever thousands of times a shift, metal is the one to run. The E50 head is metal throughout, and paired with the IP67 and NEMA 4X ratings it suits impact-prone, wet, and corrosive positions where a molded head would crack or absorb moisture.
8) Can I standardize the same Eaton E50 operator across safety interlocks and position sensing on different machines?
Yes, and that is the usual reason facilities buy it. The E50 series operator is used across industrial machine safety interlocks, side rotary limit switch assemblies, position sensing in harsh or washdown areas, and panel or enclosure mounted control systems. Standardizing on the E50 head means one spare part covers all of those positions.
