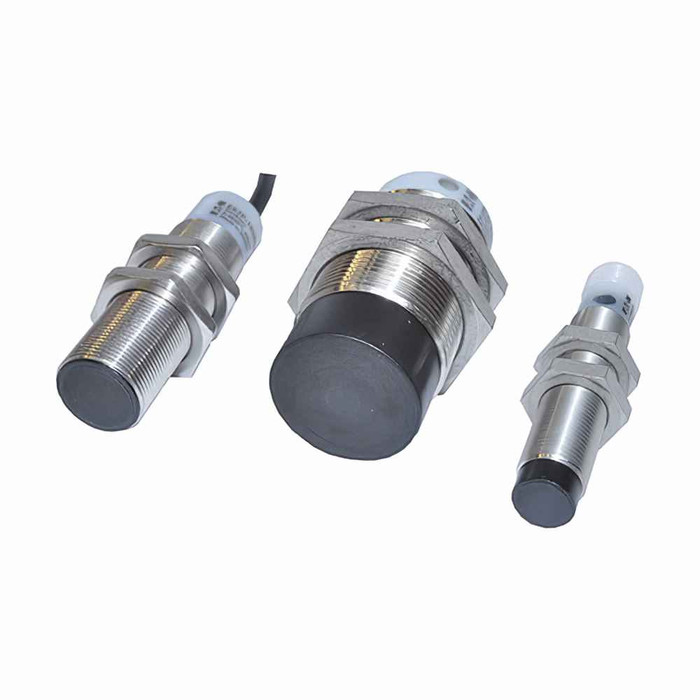

Eaton E57PS PROX, 18MM, DC, UNSH, PNP, NO, ST, SN=8MM, 5M CBL
Manufacturer Resources
Product Specs
- Accuracy:
- 3%
- Actuator Function:
- Normally open
- Cable Type:
- Polyvinyl Chloride (PVC)
- Certifications:
- UL Listed
- Compliances:
- CE Marked
- Connection:
- Cable
- Contact Rating:
- 300 mA
- Cord Length:
- 196.8503935 m
- Enclosure Material:
- Stainless steel
- Environmental Rating:
- IP67, IP69K NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
- Led Indicator:
- Output status
- Number Of Wires:
- 3
- Operating Speed:
- 1200 Hz
- Operating Temperature Max:
- 158 °F
- Operating Temperature Min:
- -40 °F
- Operating Voltage:
- 10-48 Vdc
- Output:
- PNP
- Product Height:
- .71 in
- Product Length Depth:
- 1.77 in
- Product Weight:
- .42 lb
- Product Width:
- .71 in
- Protection:
- Auto reset short circuit
- Series:
- E57
- Temperature Rating:
- -40 to 158 °F
- Voltage Rating:
- 10-48 VDC
- Wire Size:
- #24 AWG
- Product Group:
- Electrical
