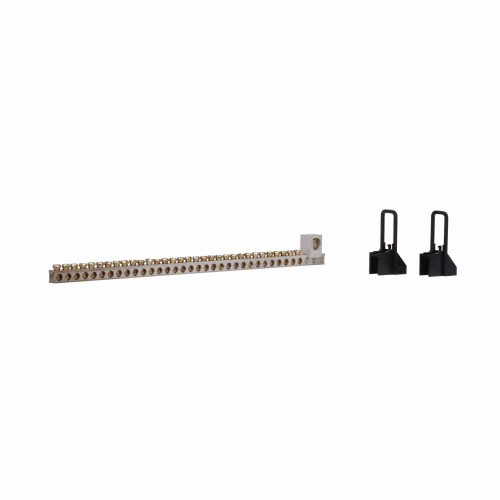

Eaton Neutral Bar 225A 3/4-Inch CH Loadcenter C-Type Box Three-Phase Aluminum

Eaton CH Neutral Bar 225A 3/4-Inch Loadcenter Accessory

Professional Electrical Panel Neutral Bar Component

The Eaton CH Neutral Bar delivers exceptional electrical power distribution performance for CH loadcenter applications. This 225A three-phase neutral bar provides reliable electrical grounding and neutral connection designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance

• 225A Current Rating - High-capacity neutral bar designed for demanding three-phase electrical distribution applications with reliable current handling
• 10 kAIC Interrupt Rating - Professional-grade interrupting capacity ensures safe electrical fault protection in commercial and industrial installations
• Three-Phase Configuration - Engineered for balanced three-phase electrical systems providing optimal power distribution and neutral grounding
• Aluminum Bus Construction - Durable aluminum bus material offers excellent conductivity and corrosion resistance for long-term electrical performance

Installation & Protection

• C-Type Box Compatibility - Specifically designed for all C-type CH loadcenter boxes ensuring proper fit and electrical connection
• NEMA 1 Enclosure Rating - Indoor electrical enclosure protection suitable for dry commercial and residential electrical panel applications
• 3/4-Inch Design - Compact profile maximizes space efficiency in electrical panels while maintaining full electrical performance

Technical Specifications

Amperage Rating: 225A, Interrupt Rating: 10 kAIC, Phase: Three-phase, Bus Material: Aluminum, Enclosure: NEMA 1, Size: 3/4 inch, Used With: Box C CH loadcenters, Main Circuit Breaker: CH, Product Dimensions: 34.1" L x 14.3" W x 1.1" H, Weight: 8.6 lbs, Special Features: All C type boxes, Certifications: Contact Manufacturer

Installation & Usage

1. Verify power is completely disconnected and lockout/tagout procedures are followed before beginning neutral bar installation
2. Confirm compatibility with C-type CH loadcenter box and verify proper clearances for 225A neutral bar installation
3. Position neutral bar in designated location within CH loadcenter ensuring proper alignment with existing electrical connections
4. Secure neutral bar using appropriate mounting hardware and torque connections to manufacturer specifications
5. Connect neutral conductors to designated terminals ensuring proper wire gauge compatibility and secure connections
6. Verify all connections are tight and properly seated before energizing electrical system and conducting final testing

Professional Applications

Ideal for:

• Commercial Electrical Panels - Office buildings, retail facilities, and commercial properties requiring reliable neutral bar replacement
• Industrial Power Distribution - Manufacturing facilities and industrial plants with three-phase electrical systems and CH loadcenters
• Electrical Panel Upgrades - Modernization projects requiring neutral bar replacement in existing CH loadcenter installations
• Maintenance and Repair - Replacement neutral bars for damaged or corroded components in C-type CH electrical panels
• New Construction Projects - Commercial and industrial electrical installations using CH loadcenter systems with C-type boxes
• Electrical Contractor Applications - Professional electrical work requiring high-quality neutral bar components for reliable installations
• Facility Management - Building maintenance and electrical system upgrades in commercial and industrial facilities
• Three-Phase Systems - Balanced electrical distribution systems requiring proper neutral grounding and connection points

CH Loadcenter Advantage

This neutral bar is specifically engineered for Eaton CH loadcenter systems, ensuring perfect compatibility with C-type boxes and CH circuit breakers. The aluminum bus construction provides excellent electrical conductivity while resisting corrosion, and the 225A rating handles demanding electrical loads in commercial and industrial applications. The three-phase design ensures balanced electrical distribution and proper neutral grounding essential for safe electrical system operation.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this neutral bar meets the highest standards for electrical safety and reliability. With comprehensive UL/CSA listings and trusted performance, Eaton electrical components are the preferred choice of electricians, electrical contractors, and facility professionals worldwide who demand dependable electrical protection and power distribution solutions.
