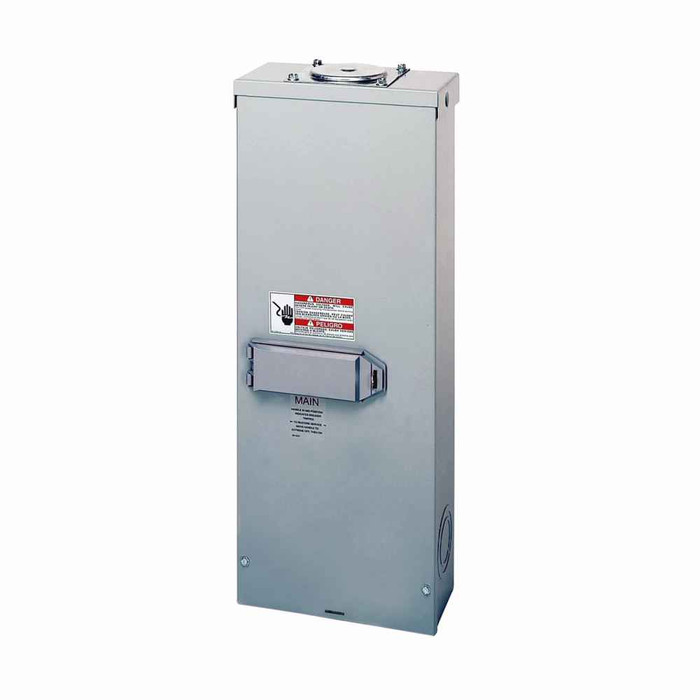

Eaton ECC Circuit Breaker Enclosure 200A 25kAIC 240V Outdoor Rainproof System
Professional Outdoor Power Distribution & Protection
The Eaton ECC Circuit Breaker Enclosure delivers reliable outdoor power distribution with 200A capacity and 25kAIC interrupt rating at 240V. This rainproof enclosure system accommodates CC circuit breakers with professional-grade protection for single-phase and three-phase applications, featuring ground lug connectivity and wire compatibility from #2 AWG to 300 kcmil.
Professional Features & Benefits
- 200A Amperage Rating: Provides substantial power handling capacity for demanding electrical distribution applications.
- 25kAIC Interrupt Rating: Delivers high fault current protection capability for enhanced system safety and reliability.
- 240V Operation: Compatible with standard commercial and residential voltage systems for versatile installation options.
- Rainproof Construction: Ensures reliable outdoor operation with weather-resistant protection for continuous service.
- CCV Frame Compatibility: Designed specifically for CC circuit breakers with proper frame integration and mounting.
- Flexible Wire Range: Accommodates conductors from #2 AWG to 300 kcmil for diverse connection requirements.
- Ground Lug Integration: Includes grounding provisions for proper electrical safety and code compliance.
Technical Specifications
- Amperage Rating: 200 A
- Catalog Notes: Order circuit breaker separately. Rainproof panels are furnished with hcp. One ground lug accepting
- Circuit Breaker Frame Type: CCV
- Interrupt Rating: 25 kAIC
- Product Details: Enclosed circuit breaker
- Used With: CC Circuit breakers
- Voltage Rating: 200V
- Wire Size: #2 AWG-300 kcmil
Installation & Operation
- Mount the unit in a suitable location with appropriate clearance and access for connections and service.
- Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
- Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
- Configure any available load management or control features as supported by the provided specifications.
- Test automatic transfer or operational functionality and verify proper performance before placing into service.
- Complete final inspection and follow ongoing maintenance practices appropriate to the product category.
Professional Applications
- Commercial Building Power Distribution
- Industrial Facility Electrical Systems
- Outdoor Service Entrance Applications
- Multi-Unit Residential Properties
- Retail and Office Building Infrastructure
- Municipal and Institutional Facilities
- Emergency Service Installations
Why Choose Eaton Quality?
Eaton circuit breaker enclosures provide dependable outdoor power distribution with rainproof construction and high interrupt rating capability. The 25kAIC rating and 200A capacity deliver professional-grade protection for demanding electrical applications, while the CCV frame compatibility ensures proper integration with CC circuit breakers for reliable long-term service.
Manufacturer Resources
Product Specs
- Amperage Rating:
- 200 A
- Catalog Notes:
- Order circuit breaker separately. Rainproof panels are furnished with hcp. One ground lug accepting
- Circuit Breaker Frame Type:
- CCV
- Interrupt Rating:
- 25 kAIC
- Product Details:
- Enclosed circuit breaker
- Used With:
- CC Circuit breakers
- Voltage Rating:
- 200V
- Wire Size:
- #2 AWG-300 kcmil
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Product Type:
- Enclosure
