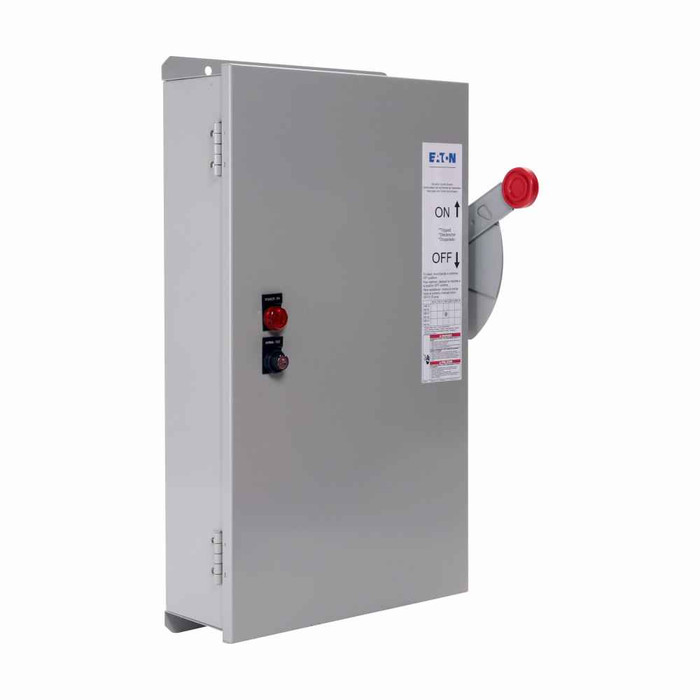

Eaton elevator control switch, 120 Vac coil fire safety interface relay, single-pole fire alarm voltage monitoring relay, green pilot light, isolated full capacity neutral lug, 100 A, NEMA 3R, #8-1/0 Al or Cu, 480 V, 1NO/NC Main switch
Manufacturer Resources
Product Specs
- Amperage Rating:
- 100A
- Catalog Notes:
- Class J Fuses not included, Contact factory for dimensions for NEMA 4 enclosure, Optional neutral lug size same as line and load.
- Certifications:
- UL 98
- Enclosure:
- NEMA 3R
- Main Lug Wire Size:
- #8-1/0 Al/Cu
- Product Category:
- Elevator Control Switch
- Product Height:
- 29.62 in
- Product Length Depth:
- 11.18 in
- Product Weight:
- 60 lb
- Product Width:
- 16.35 in
- Special Features:
- 120 Vac coil fire safety interface relay, single-pole fire alarm voltage monitoring relay, green pilot light, isolated full capacity neutral lug
- Type:
- Elevator control switch
- Voltage Rating:
- 480 V
- Product Group:
- Electrical
