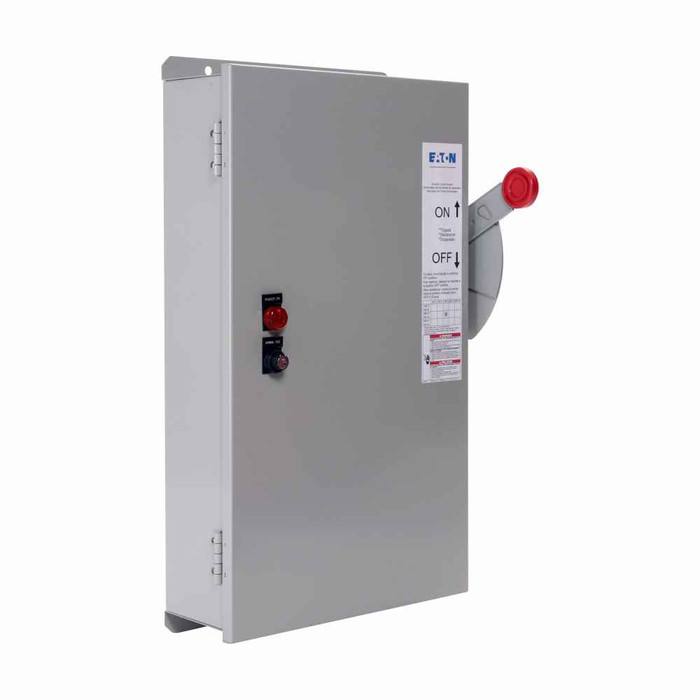

Eaton elevator control switch, 400 A, NEMA 1
Manufacturer Resources
Product Specs
- Amperage Rating:
- 400A
- Catalog Notes:
- Class J Fuses not included, Standard overside enclosure to mount control power transformer fire safety interface relay and control terminal blocks, Optional neutral lug size same as line and load.
- Certifications:
- UL Listed file E182262
- Enclosure:
- NEMA 1
- Main Lug Wire Size:
- (2) #1/0-300 kcmil or (1) #1/0-750 kcmil Al/Cu
- Product Category:
- Elevator Control Switch
- Product Height:
- 54.63 in
- Product Length Depth:
- 12.69 in
- Product Weight:
- 146 lb
- Product Width:
- 25.21 in
- Special Features:
- 120 Vac coil fire safety interface relay, single-pole fire alarm voltage monitoring relay, green pilot light, no neutral lug
- Type:
- Elevator control switch
- Voltage Rating:
- 208 V
- Product Group:
- Electrical
