Eaton 1251E-6503 Enhanced 50 S...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$407.46
$357.46

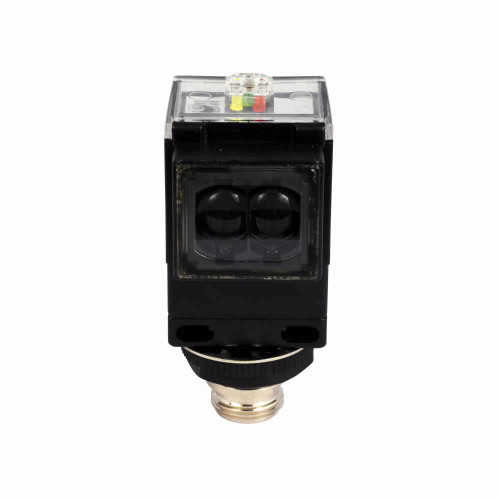

Eaton 1251E-6503 Enhanced 50 Series Photoelectric Sensor, Sensor distance: 500 Ft., Iso SS Relay, 300 mA at 240 Vac/Vdc, 4 Pin Mini Connector, 12–240 Vdc 24–240 Vac input, Reverse polarity, short circuit and overload, Thu-Beam

Eaton 1251E-6503 Enhanced 50 Series Photoelectric Sensor, Sensor distance: 500 Ft., Iso SS Relay, 300 mA at 240 Vac/Vdc, 4 Pin Mini Connector, 12–240 Vdc 24–240 Vac input, Reverse polarity, short circuit and overload, Thu-Beam

(No reviews yet) Write a Review

Model: 1251E-6503
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$407.46
$357.46
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton Enhanced 50 Series Photoelectric Sensor, Sensor distance: 500 Ft., Iso SS Relay, 300 mA at 240 Vac/Vdc, 4 Pin Mini Connector, 12–240 Vdc 24–240 Vac input, Reverse polarity, short circuit and overload, Thu-Beam

Manufacturer Resources

Product Specs

Certifications:
CSA Certified
Compliances:
Contact Manufacturer
Connection:
4-pin mini connector
Contact Configuration:
Isolated solid state relay
Contact Rating:
300 mA at 240 Vac/Vdc
Enclosure Material:
Fiberglass reinforced plastic
Environmental Rating:
IP67, IP69K
Input Voltage:
12-240 Vdc, 24-240 Vac
Led Indicator:
Marginal gain: red
Maximum Ac Current:
300 mA
Maximum Dc Current:
300 mA
Operating Mode:
Thru-beam
Operating Temperature Max:
131 °F
Operating Temperature Min:
-13 °F
Product Height:
4.16 in
Product Length Depth:
1.91 in
Product Weight:
.3375 lb
Product Width:
1.81 in
Protection:
Reverse polarity and short circuit protected
Sensor Type:
Through beam
Switch Type:
Photoelectric
Product Group:
Electrical
!
