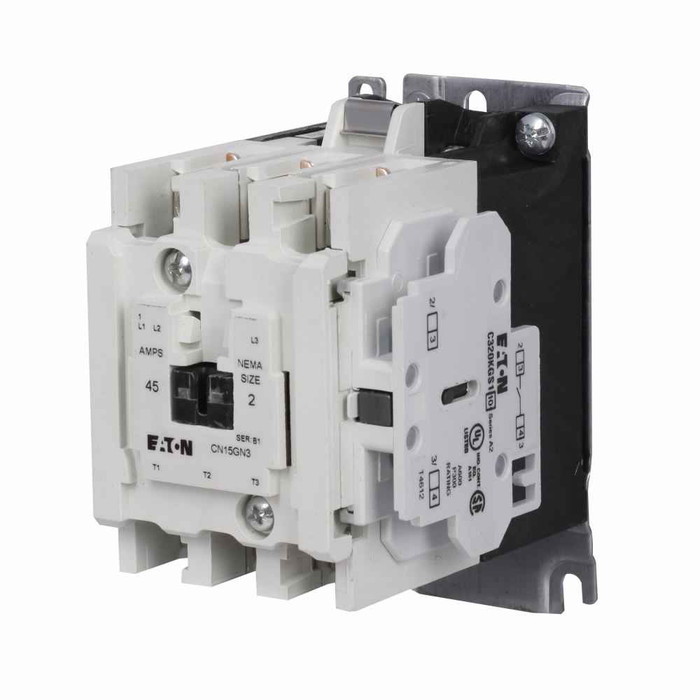

Eaton Freedom NEMA motor control contactor, NEMA Freedom Series Non-Reversing Contactor, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 208 Vac coil voltage, 45A, Five-pole, Size 2
Manufacturer Resources
Product Specs
- Amperage Rating:
- 45A
- Certifications:
- UL Listed
- Hp Rating Max:
- 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V
- Number Of Poles:
- Five-pole
- Phase:
- Single-phase, three-phase
- Product Height:
- 5.05 in
- Product Length Depth:
- 4.44 in
- Product Weight:
- 4.8 lb
- Product Width:
- 4.32 in
- Size:
- 2
- Product Group:
- Electrical
