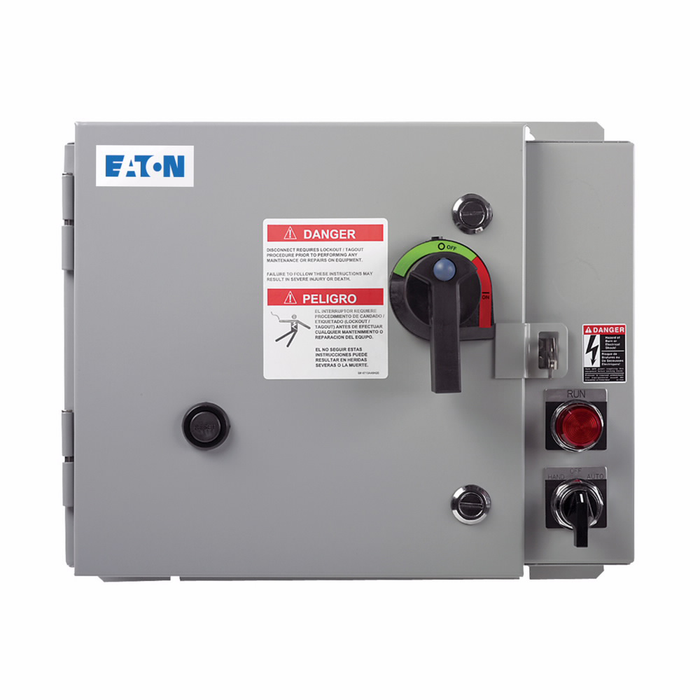

Eaton Freedom Combination Non-Reversing Motor Starter, NEMA 1 Enclosure

Eaton Freedom Combination Non-Reversing Motor Starter, NEMA 1 Enclosure

(No reviews yet) Write a Review

Model: ECH1611AAA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$964.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Freedom Combination Non-Reversing Motor Starter, NEMA 1 Enclosure

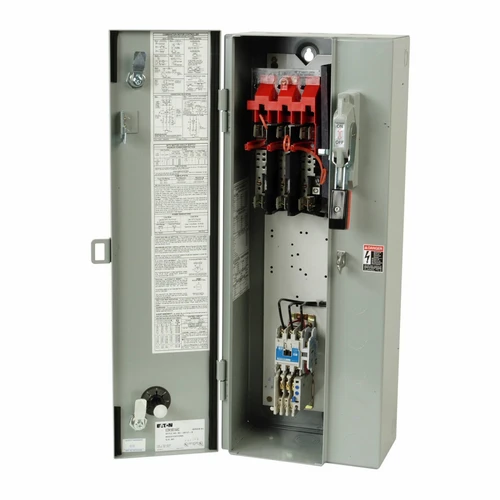

The Eaton Freedom Combination Non-Reversing Motor Starter is a combination non-reversing—fusible disconnect assembly built for dependable motor control and branch-circuit protection in commercial and industrial systems. Housed in a NEMA 1 enclosure for general-purpose indoor installations, this Eaton Freedom series starter combines a fusible disconnect switch with motor control components in a single, panel-ready unit. It is CE Marked and OSHPD Certified, making it suitable for projects that require seismic and life-safety compliance in addition to standard motor branch-circuit protection.

Key Features

  • Combination Non-Reversing Design: Combination non-reversing—fusible disconnect configuration integrates disconnect and starter functions for simplified motor control wiring.
  • NEMA 1 Enclosure: Enclosure rated NEMA 1 for general-purpose indoor applications, protecting internal components from incidental contact and dust.
  • Compact Panel Dimensions: Overall enclosure measures 16.26 in wide, 6.7 in deep, and 14.37 in tall for straightforward placement in electrical rooms and control panels.
  • Fusible Disconnect Protection: Integrated fusible disconnect provides branch-circuit protection and a lockable means of disconnect for the motor circuit.
  • Eaton Freedom Series Reliability: Part of the Eaton Freedom line of motor control products engineered for consistent performance in demanding industrial and commercial environments.
  • Backed by Eaton's Warranty: Covered by Eaton Selling Policy 25-000, warranted for one (1) year from installation or eighteen (18) months from shipment, whichever occurs first.

Certifications & Compliance

  • CE Marked
  • OSHPD Certified

Technical Specifications

  • Product Type: Motor Starter
  • Department: Electrical
  • Product Width: 16.26 in
  • Product Length/Depth: 6.7 in
  • Product Height: 14.37 in
  • Coil Voltage: 120V/60 Hz
  • Enclosure: NEMA 1
  • Type: Combination non-reversing—fusible disconnect
  • Compliances: CE Marked
  • Certifications: OSHPD Certified
  • Warranty: Eaton Selling Policy 25-000, one (1) year from installation or eighteen (18) months from shipment, whichever occurs first.

Typical Applications

  • Commercial and Industrial Motor Control Installations
  • Panelboard and Control Panel Wiring
  • Fusible Motor Branch-Circuit Protection
  • Facilities Requiring OSHPD-Certified Equipment
  • New Construction and Electrical Retrofits

Why Eaton?

Eaton's Freedom series combination non-reversing motor starters are engineered for code-compliant, reliable motor control in professional electrical installations. With a NEMA 1 enclosure, integrated fusible disconnect protection, CE Marking, and OSHPD Certification, this Eaton Freedom starter delivers the durable construction and compliance documentation electrical professionals rely on for commercial and industrial motor control projects.

Manufacturer Resources

Product Specs

Product Width:
16.26 in
Coil voltage:
120V/60 Hz
Product Size:
NEMA size 1
Product Length/Depth:
6.7 in
Compliances:
CE Marked
Product Height:
14.37 in
Product Type:
Motor Starter
Configuration:
NEMA 1 Enclosure
Certifications:
OSHPD Certified
Department:
Electrical
Series:
Freedom
Standards:
OSHPD Certified
Product Group:
Starters & Contactors

Eaton ECH1611AAA – Frequently Asked Questions

1) What control voltage does the Eaton Freedom ECH1611AAA motor starter coil need?
The coil on the ECH1611AAA runs on 120V, 60 Hz. If your control circuit is 24V, 208V, or 480V, this starter is not the one to order; you would either need a control power transformer feeding a 120V control circuit or a different coil voltage build of the Freedom starter.
2) Can this Eaton Freedom combination starter be mounted outdoors or in a washdown area?
No. The ECH1611AAA comes in a NEMA 1 enclosure, which is general-purpose indoor only. It guards against incidental contact and falling dirt, but gives you no protection from rain, hose-down, or corrosive atmospheres. For a mechanical yard, rooftop, or wet process area you need a NEMA 3R, 4, or 4X enclosed starter instead.
3) What size motor does a NEMA size 1 Freedom starter handle?
The ECH1611AAA is a NEMA size 1 starter. Size 1 is the common step above size 00 and 0, typically used for small to mid horsepower three-phase motors, so confirm your motor nameplate FLA against the size 1 rating and the overload relay range before you wire it in. If your motor draws more than a size 1 covers, step up to a size 2 unit.
4) Do I need a separate disconnect switch ahead of this Eaton starter?
No separate safety switch is required at the starter. The ECH1611AAA is a combination non-reversing unit with a fusible disconnect built in, so the branch-circuit fusing and a lockable disconnecting means for the motor circuit are in the same enclosure as the contactor and overload. You do supply the fuses themselves, sized to the motor and the fuse class your design calls for.
5) Is the Eaton Freedom ECH1611AAA acceptable for a California hospital project?
It is OSHPD Certified, which is the pre-approval California healthcare projects look for on seismically anchored electrical equipment. It also carries CE Marking. Your structural anchorage still has to follow the certification's mounting details for the installation to count.
6) How much wall space do I need for the Eaton Freedom ECH1611AAA starter?
Plan on 16.26 in wide by 14.37 in tall, with 6.7 in of depth off the wall. That footprint decides whether it fits between studs, beside a panelboard, or inside a control room layout, and you still need working clearance in front of it per NEC for a disconnecting means.
7) Will this starter reverse a motor?
No. It is a non-reversing starter, single direction only. For a motor that has to run both ways, such as a damper actuator, hoist, or reversible conveyor, you need a reversing combination starter with two mechanically interlocked contactors.
8) What is the exact part number to order this Eaton combination starter?
Order Eaton part number ECH1611AAA, from the Freedom series of enclosed combination motor starters. That single catalog number covers the NEMA 1 enclosure, the fusible disconnect, the size 1 non-reversing starter, and the 120V 60 Hz coil.
