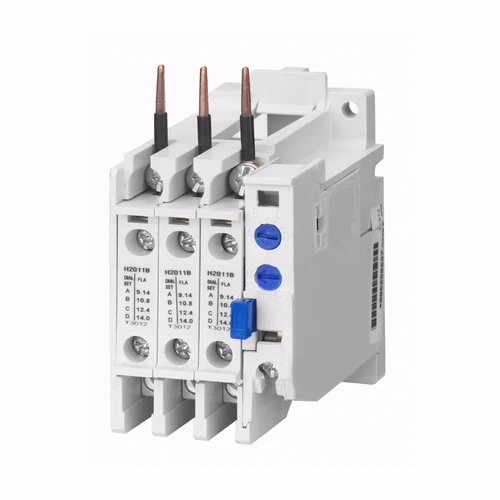

Eaton NEMA Freedom Three-Pole Thermal Overload Relay, Panel Mounted
Model: COLL-439413-112553
Eaton

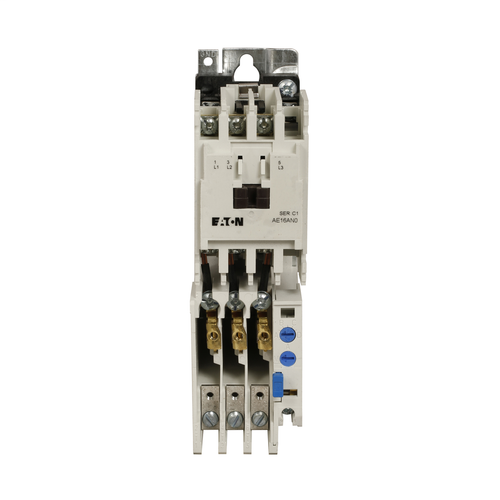

Eaton Freedom Series Three-Phase Reversing IEC Starter, C306 Overload Relay
Model: EAT-P93
Eaton
Eaton Freedom NEMA Reversing Reset Overload Relay Motor Starter, Size 1, Three-Pole
The Eaton Freedom NEMA Reversing Reset Overload Relay Motor Starter is a Size 1, three-pole starter built for reversing motor control duty, rated 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208/240V, and 10 hp at 480/600V maximum horsepower. It operates on a 120V/60 Hz or 110V/50 Hz coil voltage with a 27A rating, and is suitable for both single-phase and three-phase motor circuits. The manual reset overload relay design gives installers a dependable, code-compliant way to protect motors in commercial and industrial control panels.
Key Features
- NEMA Size 1 Rating: Three-pole reversing starter configuration for standard NEMA motor control panels.
- Horsepower Ratings: 2 hp at 115V, 3 hp at 230V, 7-1/2 hp at 208/240V, and 10 hp at 480/600V maximum horsepower for flexible motor application coverage.
- Coil Voltage: 120V/60 Hz or 110V/50 Hz coil for compatibility across common control power supplies.
- Amperage Rating: 27A rated for reliable continuous motor control performance.
- Reset Overload Relay: Manual reset overload protection helps prevent nuisance tripping and simplifies restart after a fault condition.
- Phase Compatibility: Suitable for single-phase and three-phase motor control circuits.
- Compact Footprint: Product Width 4.38 in, Length/Depth 4.61 in, Height 3.31 in for space-efficient panel layouts.
Certifications & Compliance
- NEMA Size 1 Rated Motor Starter
Technical Specifications
- Product Type: Motor Starter
- Department: Electrical
- Number Of Poles: Three-pole
- Coil Voltage: 220-240 Vac, 50/60 Hz
- Phase: Single-phase, three-phase
- Product Width: 4.38 in
- Product Length/Depth: 4.61 in
- Product Height: 3.31 in
Typical Applications
- Commercial and Industrial Motor Control Panels
- Reversing Motor Control Circuits
- Pump and Fan Motor Control Applications
- OEM Machine Control System Integration
- Motor Control Center and Panelboard Retrofits
Why Eaton?
Eaton's Freedom Series motor starters combine NEMA Size 1 construction with a manual reset overload relay to deliver dependable, code-compliant motor protection for demanding industrial and commercial control applications. Backed by Eaton's Selling Policy 25-000 warranty coverage, this three-pole reversing starter is engineered for consistent performance across single-phase and three-phase motor circuits.
Manufacturer Resources
Product Specs
- Number Of Poles:
- Three-pole
- Product Width:
- 4.38 in
- Coil voltage:
- 220-240 Vac, 50/60 Hz
- Product Length/Depth:
- 4.61 in
- Product Height:
- 3.31 in
- Phase:
- Single-phase, three-phase
- Catalog Notes:
- Heater Packs must be purchased separately
- Product Type:
- Motor Starter
- Department:
- Electrical
- Series:
- Freedom
- Configuration:
- Three-Pole
- Amperage Rating:
- 27A
- Product Group:
- Starters & Contactors
