Eaton General Duty

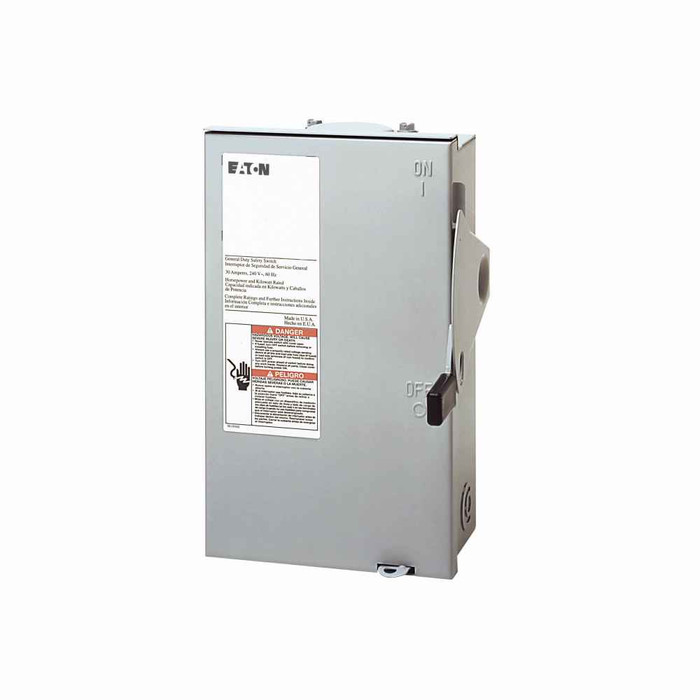

Eaton General Duty Safety Switch 240V NEMA 1/3R UL Listed

(No reviews yet) Write a Review

Model: DG223NRB
$238.76
$232.63

In Stock (leaves warehouse same day if ordered before 3pm ET)

$238.76
$232.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton General Duty Safety Switch 240V NEMA 1/3R UL Listed

Professional electrical disconnect solution for versatile applications

The Eaton General Duty Safety Switch delivers reliable electrical disconnect and protection with 240V rating and dual NEMA 1/NEMA 3R enclosure options. This UL Listed safety switch provides professional-grade performance for both indoor and outdoor installations, featuring Class H fuse provisions for comprehensive circuit protection and load management.

Professional Features & Benefits

  • 240V Voltage Rating: Supports standard residential and light commercial electrical systems with reliable power handling capacity.
  • NEMA 1/NEMA 3R Dual Rating: Versatile enclosure design suitable for both indoor general purpose and outdoor weather-resistant installations.
  • Class H Fuse Provision: Accommodates standard Class H fuses for effective overcurrent protection and circuit safety.
  • UL Listed Certification: Meets rigorous safety standards ensuring code compliance and professional installation confidence.
  • General Duty Construction: Robust design engineered for dependable service in standard electrical applications.
  • Eaton Quality Engineering: Manufactured to professional standards for long-term reliability and performance.

Technical Specifications

  • Certifications: UL Listed
  • Fuse Class Provision: Class H fuses
  • Nema Rating: NEMA 1, NEMA 3R
  • Voltage Rating: 240V

Professional Applications

  • Residential electrical service disconnects
  • Light commercial facility power control
  • HVAC equipment disconnect applications
  • Motor control and protection systems
  • Outdoor electrical equipment installations
  • General purpose electrical safety switching
  • Code-compliant disconnect requirements

Why Choose Eaton Quality?

Eaton safety switches deliver proven reliability through UL Listed certification and professional-grade construction. The dual NEMA 1/3R rating provides installation flexibility while Class H fuse compatibility ensures comprehensive circuit protection for demanding electrical applications.

Manufacturer Resources

Spec Sheet

Product Specs

Certifications:
UL Listed
Fuse Class Provision:
Class H fuses
Nema Rating:
NEMA 1, NEMA 3R
Voltage Rating:
240V
Department:
Electrical
Product Group:
Accessories
Product Type:
Switch

Eaton DG223NRB – Frequently Asked Questions

1) What fuses go in the Eaton fusible general duty safety switch?
The fuse clips take Class H fuses. Class H is the one-time, non-current-limiting class, cheap and common, and it is what the switch is built around. If the equipment or the engineer calls for current-limiting protection, a Class H switch is the wrong starting point and you want an Eaton heavy duty switch with Class R rejection clips instead. Worth settling before the fuses get ordered, because Class R fuses will not seat correctly in plain Class H clips.
2) What amperage sizes does the Eaton general duty safety switch come in?
Six ratings: 30A, 60A, 100A, 200A, 400A and 600A. That spread covers the usual jobs, a 30 or 60 amp at a rooftop or pad-mounted HVAC unit, 100 or 200 amp for a residential service or a small commercial feeder, and 400 or 600 amp for larger equipment feeders. Size the switch to the overcurrent device and conductor ahead of it, not to the nameplate FLA alone.
3) Is a 240V Eaton general duty disconnect OK for 208V three phase?
Yes. The switch is rated 240V, and a 208V three phase system sits under that, so the 240V rating covers it. Order the 3P version for three phase. What it will not do is 480V, general duty at 240V tops out well below a 277/480 system, so a 480V feeder needs a 600V rated heavy duty switch instead.
4) Is a general duty switch heavy enough for a commercial building, or do I need heavy duty?
General duty is built for residential and light commercial work, 240V and below, with Class H fuse provisions. It suits service disconnects, HVAC shutoffs, and light commercial power control. Where it runs out is higher voltage, current limiting fuse requirements, or industrial duty cycling, all of which point to a heavy duty switch. For a property manager standardizing HVAC disconnects across a building at 240V, general duty is the right tool. For a 480V industrial feeder it is not.
