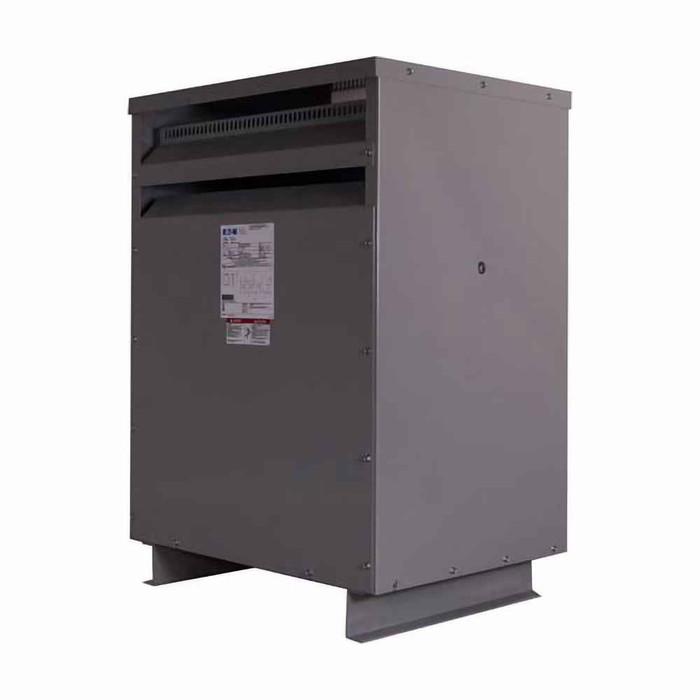

Eaton General purpose ventilated transformer, CU windings, DOE 2016, NEMA 2, FR944, 220°C, 225 kVA, Floor mnt, 3-phase, PV: 480V delta, SV: 208Y/120, NEMA ST-20, 2 at +2.5%, 4 at -2.5%, 115°C, 225 kVA, WS61, 280B
Manufacturer Resources
Product Specs
- Catalog Notes:
- 10 CFR Part 431 (2016) Efficient
- Certifications:
- UL Listed
- Coil Material:
- Copper
- Compliances:
- DOE2016 Efficient
- Efficiency:
- 10 CFR Part 431-2016 (DOE 2016)
- Enclosure:
- NEMA 2
- Frame:
- FR944
- Frequency Rating:
- 60 Hz
- Insulation:
- 220 °C
- Kva Rating:
- 225 kVA
- Material:
- Copper windings
- Mounting:
- Floor
- Phase:
- Three-phase
- Primary Voltage:
- 480 V delta
- Product Height:
- 1.1 in
- Product Length Depth:
- 1.1 in
- Product Weight:
- 2082 lb
- Product Width:
- 1.1 in
- Secondary Voltage:
- 208Y/120 V
- Sound Level:
- NEMA ST-20
- Tap Size:
- 2 at +2.5%, 4 at -2.5%
- Temperature Rise:
- 115 °C rise
- Type:
- Energy-efficient marine duty transformer
- Volt Ampere Rating:
- 225 kVA
- Voltage Rating:
- 480 Vac-208Y/120 Vac
- Weathershield:
- WS61
- Wiring Connection:
- 280B
- Product Group:
- Electrical
