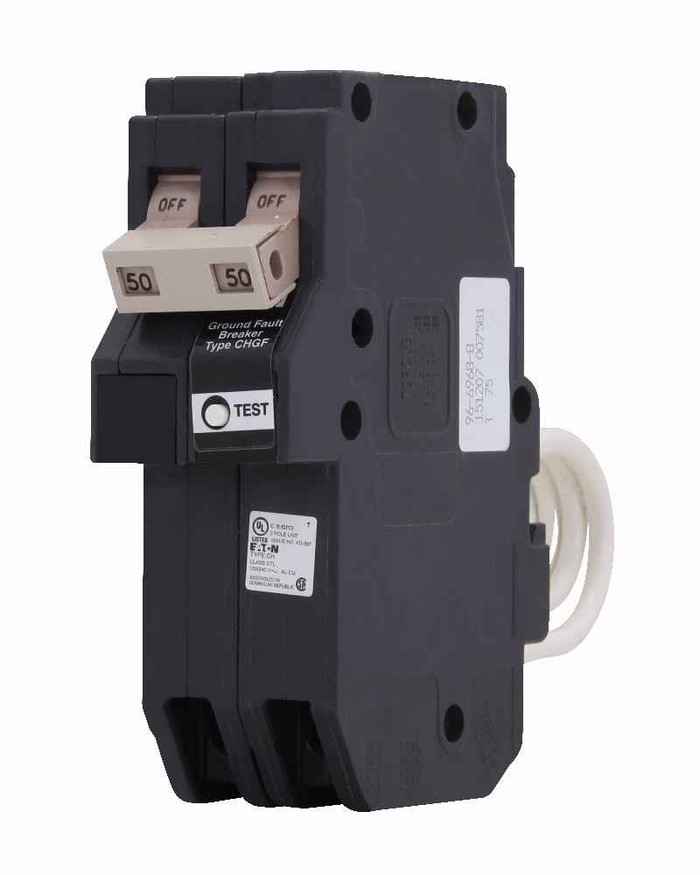

Eaton CH Series 50A Two-Pole GFCI Circuit Breaker with 5mA Personnel Protection

Eaton CH Series 50A Two-Pole GFCI Circuit Breaker with 5mA Personnel Protection

Professional Class-A GFCI Protection for Electrical Safety

The Eaton CH Series 50A Two-Pole GFCI Circuit Breaker delivers reliable ground fault circuit interruption protection with 5mA personnel protection sensitivity. This Class-A GFCI breaker accommodates #14-3 AWG wire sizes and features pigtail connections for professional electrical installations requiring enhanced safety protection.

Professional Features & Benefits

• 50 Ampere Rating: Handles substantial electrical loads while maintaining reliable overcurrent protection for demanding applications.
• Two-Pole Configuration: Provides simultaneous protection for both hot conductors in 240V circuits with coordinated tripping action.
• 5mA Personnel Protection: Delivers sensitive ground fault detection to prevent electrical shock hazards and enhance workplace safety.
• Class-A GFCI Technology: Meets stringent safety standards for personnel protection in residential and commercial environments.
• Pigtail Connection Design: Facilitates secure wiring connections with flexible lead configuration for various installation requirements.
• UL 943 Certification: Ensures compliance with recognized safety standards for ground fault circuit interrupters.
• #14-3 AWG Compatibility: Accommodates standard wire gauges for versatile electrical system integration.

Technical Specifications

• Certifications: UL 943
• Product Details: CH 2-Pole GFCI Breaker
• Product Height: 3.5 in
• Product Length Depth: 6.1 in
• Product Weight: 1 lb
• Product Width: 2.25 in

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical panels requiring GFCI protection for high-amperage circuits
• Commercial facilities with equipment requiring ground fault protection
• Industrial installations where personnel safety is critical
• Outdoor electrical systems and wet location applications
• Pool and spa electrical systems requiring enhanced safety measures
• Workshop and garage electrical circuits with power tool usage

Why Choose Eaton Quality?

Eaton CH Series circuit breakers provide dependable electrical protection with UL 943 certification ensuring compliance with industry safety standards. The compact 3.5 x 2.25 x 6.1 inch design and lightweight 1 lb construction facilitate professional installation while delivering long-term reliability in demanding electrical environments.
