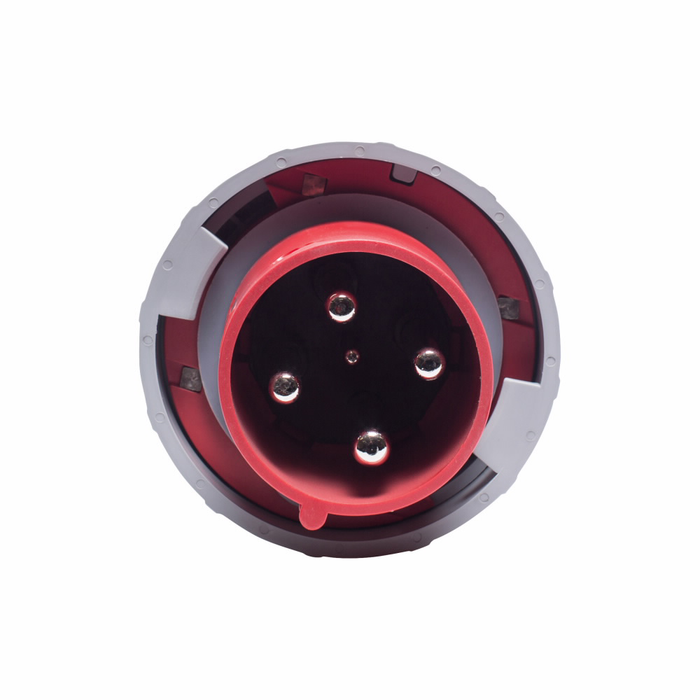

Eaton Arrow Hart IP69K-Rated Pin and Sleeve Plug, 100A, 3-Pole, 480V
The Eaton Arrow Hart IP69K-Rated Pin and Sleeve Plug is an extra heavy-duty industrial plug engineered for demanding power connections. Rated 100A at 480V three-phase, this three-pole, four-wire pin and sleeve plug features a durable nylon face and body with nickel-plated brass contacts. Its IP69K rating provides protection against high-pressure, high-temperature washdown, making it well suited for industrial, food and beverage, and wastewater treatment environments.
Key Features
- Electrical Rating: Rated 100A at 480V three-phase for extra heavy-duty, three-pole, four-wire industrial power connections supporting up to 20 hp loads.
- Pin and Sleeve Design: Male-gender pin and sleeve plug with back-wire termination, accepting #4 -1/0 AWG power conductors and #12 - #16 AWG pilot wiring.
- Durable Construction: Nylon face and body construction paired with nickel-plated brass contacts for corrosion resistance and long service life.
- Washdown Resistance: IP69K rated for high-pressure, high-temperature washdown resistance, with additional IP67 environmental resistance for wet and harsh-duty locations.
- Torque Rating: Rated to 70 lbf-inch torque for a secure, reliable termination.
- Cord Range: Accommodates cord diameters from 0.97-1.94in (2.46-5.00cm).
- Color-Coded Body: Red housing for quick visual identification of voltage and amperage class in multi-device industrial setups.
Certifications & Compliance
- IP69K Rated
- IP67 Environmental Resistance
- Refer to Manufacturer for Additional Certification Details
Technical Specifications
- Number Of Poles: Three-pole
- Phase: Three-phase
- Voltage rating: 3ø 480 V
- Amperage Rating: 100A
- Horsepower: 20 hp
- Torque rating: 70 lbf-inch
- Contact material: Nickel plated brass
- Face/body material: Nylon
- Gender: Male
- Wiring method: Back wire
- Allowable wire size: #4 -1/0 AWG, #12 - #16 AWG (pilot)
- Number of wires: 4
- Cord diameter: 0.97-1.94in (2.46-5.00cm)
- Product Width: 5.5 in
- Product Height: 5.625 in
- Product Length/Depth: 13.375 in
- Product Color: Red
- Device grade: Extra Heavy-Duty
- Warranty: Refer to warranty document.
Typical Applications
- Industrial Manufacturing Facilities
- Food and Beverage Processing
- Wastewater Treatment Plants
- High-Pressure Washdown Environments
- Temporary and Portable Power Distribution
- Extra Heavy-Duty Industrial Power Connections
Why Eaton?
Eaton Arrow Hart pin and sleeve devices are built with extra heavy-duty nylon construction and nickel-plated brass contacts to withstand demanding industrial environments. With an IP69K rating for high-pressure washdown resistance and a 70 lbf-inch torque-rated termination, this plug delivers dependable, code-compliant performance for professional electrical installations. Choose Eaton for durable, reliable power connections built to perform in the toughest industrial conditions.
