Eaton A200/B100 NEMA Overload Heater for Size 2 Starters

Eaton A200/B100 NEMA Overload Heater for Size 2 Starters

(No reviews yet) Write a Review

Model: FH70

In Stock (leaves warehouse same day if ordered before 3pm ET)

$97.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

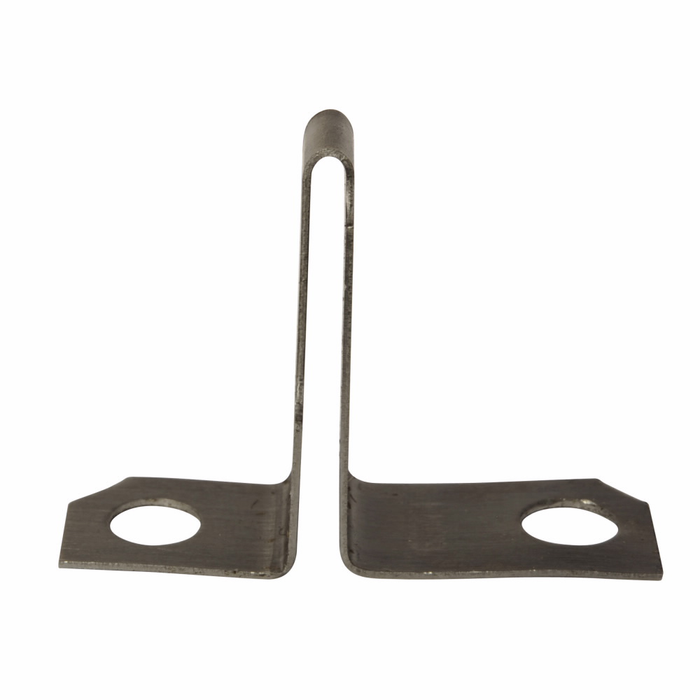

Eaton A200/B100 NEMA Overload Heater for Size 2 Starters

The Eaton A200/B100 NEMA Overload Heater is engineered for use with Starter Size 2 motor starters, providing precise thermal and fast-trip overload protection for motor circuits. Featuring a NEMA design and UL Listed construction, this heater element is selected based on the full load current (FLA) shown on the motor nameplate, with coverage across an Ambient full load current range of 0.25-0.27 A and 0.29-0.31 A, as well as Non-Comp ranges of 320.1-350.2 A and 380.0-410.9 A. It is compatible with Type A and Type B overload relays, making it a reliable choice for industrial motor protection applications.

Key Features

  • Type: A200/B100 Heater designed for use with Starter Size 2.
  • Trip Type: Thermal and fast trip protection for reliable overload response.
  • Design: NEMA design for standardized motor control applications.
  • Overload Relay Compatibility: Compatible with Type A and Type B overload relays.
  • Full Load Current Range: Ambient 0.25-0.27 A and 0.29-0.31 A; Non-Comp 320.1-350.2 A and 380.0-410.9 A, selected per motor nameplate FLA.
  • Compact Footprint: Product Width 1.3 in, Product Length/Depth 2.1 in, and Product Height .8 in for standard enclosure fit.
  • Application Guidance: Heater coils rated to protect a 40 degree C rise with a service factor of 1.15; Single-Phase requires 2 heaters, Three-Phase requires 3 heaters.

Certifications & Compliance

  • UL Listed

Technical Specifications

  • Department: Electrical
  • Type: A200/B100 Heater
  • Design: NEMA
  • Used With: Starter Size 2
  • Trip Type: Thermal and fast trip
  • Overload Relay: Type A and B
  • Full Load Current Range: Ambient 0.25-0.27, 0.29-0.31 A; Non-Comp 320.1-350.2, 380.0-410.9 A
  • Product Width: 1.3 in
  • Product Length/Depth: 2.1 in
  • Product Height: .8 in
  • Certifications: UL Listed

Typical Applications

  • Motor Control Centers and Starter Assemblies
  • Size 2 Motor Starter Overload Protection
  • Single-Phase and Three-Phase Motor Circuits
  • Industrial and Commercial Motor Control Panels
  • Overload Relay Retrofits and Replacements

Why Eaton?

Eaton overload heaters are built to precise thermal and fast-trip specifications, ensuring dependable motor overload protection in demanding industrial environments. With UL Listed certification and NEMA design standards, this A200/B100 heater delivers code-compliant, dependable performance for Starter Size 2 applications, backed by Eaton's selling policy warranty coverage.

Manufacturer Resources

Product Specs

Department:
Electrical
Product Type:
Overload Heater
Series:
A200/B100
Configuration:
Starter Size 2
Listing:
UL Listed
Product Group:
Wiring Devices

Eaton FH70 – Frequently Asked Questions

1) How do I pick the right Eaton FH heater for my Size 2 starter?
You size an Eaton A200/B100 heater off the full load amps stamped on the motor nameplate, not off the horsepower or the breaker. The heater element is matched to that FLA figure, and the two models offered here are FH55 and FH70. Pull the nameplate FLA first, then match it to the heater's rated range before you order.
2) How many overload heaters do I need for a three phase motor?
Three. A three-phase motor circuit takes three heaters, one per phase. A single-phase circuit takes two. Heaters are sold individually, so order the quantity your circuit requires rather than assuming a set comes in the box.
3) What is the difference between the Eaton FH55 and FH70 heaters?
Same A200/B100 family, same Size 2 starter application, same Type A and B relay compatibility. The difference is the current rating of the element, which sets the trip point. You choose between them purely on the motor nameplate FLA, so they are not interchangeable on the same motor.
4) Do these Eaton heaters work with Type A and Type B overload relays?
Both. The A200/B100 heater is compatible with Type A and Type B overload relays, which is what the A200/B100 designation refers to. That covers the common Eaton NEMA relay blocks found in motor control centers and starter assemblies.
5) What service factor and temperature rise are these Eaton heater coils rated to protect?
The heater coils are rated to protect a motor with a 40 degree C rise and a 1.15 service factor. If your motor nameplate shows a 1.0 service factor, the standard practice is to select the element more conservatively, because the trip curve on these coils assumes the 1.15 margin.
6) What kind of trip does an Eaton A200/B100 heater give on an overload?
Thermal and fast trip. The element heats in proportion to motor current and trips the overload relay, with fast-trip response for harder faults. It is overload protection only, not short circuit protection, so the branch circuit still needs its breaker or fuses.
