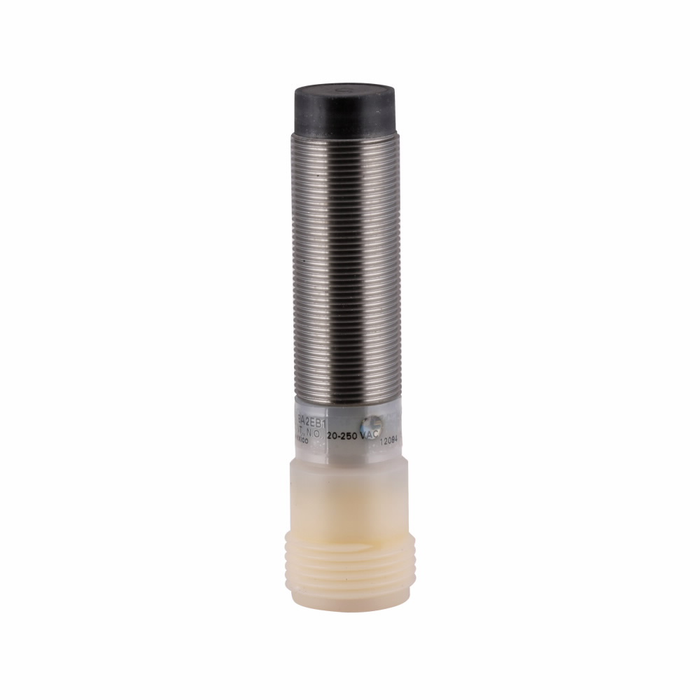

Eaton Inductive Proximity Sensor, Unshielded, Stainless Steel

Eaton E57 Inductive Proximity Sensor, Unshielded, Stainless Steel

The Eaton E57 Inductive Proximity Sensor is a straight-body, unshielded mini sensor built in 303 stainless steel with a 360° viewable LED indicator for fast status checks from any angle. Rated for 20-250 V input with a 250 mA at 250 V contact rating (2-wire AC, NO), this E57 series sensor is engineered for demanding automation and machine-control environments where reliable, non-contact target detection is required. With a compact .71 in width/height and 3.39 in length/depth, it fits tight mounting locations while maintaining sensing accuracy of less than 3% of sensing range across a -13°F to 122°F operating temperature window.

Key Features

• Compact Footprint: .71 in width, .71 in height, and 3.39 in length/depth for installation in space-constrained equipment panels.
• Durable Construction: 303 stainless steel enclosure provides corrosion resistance and mechanical durability in industrial settings.
• Unshielded Actuator Function: Straight, unshielded design supports flush and non-flush mounting configurations for flexible target sensing.
• 360° Viewable LED Indicator: Visible sensor status from any viewing angle for quick troubleshooting and commissioning.
• Electrical Rating: 20-250 V input voltage with a 250 mA at 250 V contact rating and 2-wire AC, NO contact configuration.
• Wide Operating Temperature Range: Performs from -13°F to 122°F for indoor and demanding industrial environments.
• Sensing Accuracy: Less than 3% sensing range accuracy for consistent, repeatable target detection.
• Mini Connection with PVC Cable: 3-pin mini connector and polyvinyl chloride (PVC) cable for straightforward field wiring.

Certifications & Compliance

• UL Listed
• CE Marked
• NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 Rated
• IP67 and IP69K Rated

Technical Specifications

• Product Type: Electrical Component
• Accuracy: < 3% sensing range
• Warranty: 1 year
• Series: E57
• Number of pins: 3
• Department: Electrical
• Enclosure material: 303 stainless steel
• Connection: Mini
• LED indicator: 360° viewable LED
• Contact Rating: 250 mA at 250V
• Input voltage: 20-250 V
• Contact configuration: 2-wire AC, NO
• Cable type: Polyvinyl Chloride (PVC)
• Environmental rating: NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67, IP69K

Typical Applications

• Industrial Automation and Machine Control
• Conveyor and Material Handling Systems
• Panel and Enclosure-Mounted Target Sensing
• Wet, Wash-Down, and Harsh Industrial Environments
• Position and Proximity Detection on Production Equipment

Why Eaton?

Eaton builds the E57 Inductive Proximity Sensor with a 303 stainless steel enclosure, UL Listed and CE Marked compliance, and NEMA/IP-rated sealing for dependable performance in wet, wash-down, and harsh industrial conditions. The combination of wide-range input voltage, tight sensing accuracy, and a 360° viewable LED makes this sensor a code-compliant, professional-grade choice for automation and machine-control applications.
