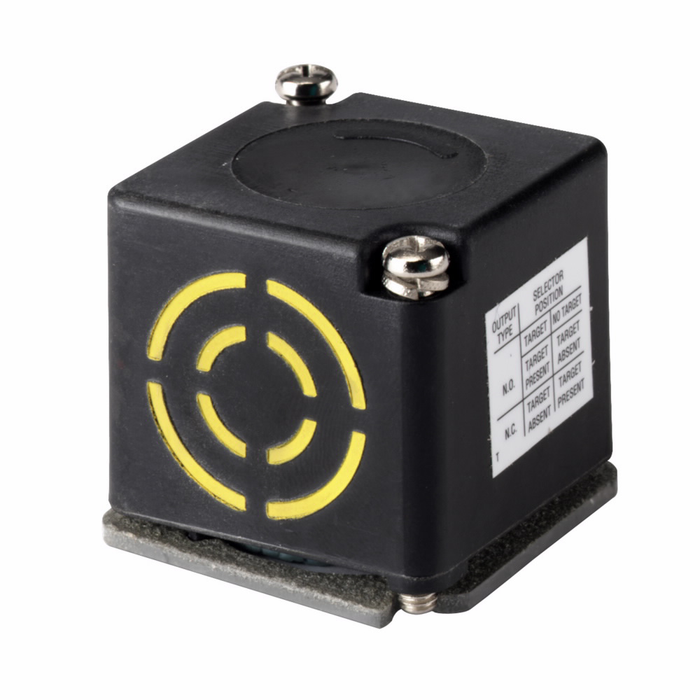

Eaton E51 Series Inductive Proximity Sensor, NEMA Rated
The Eaton E51 Series Inductive Proximity Sensor is an inductive proximity sensor built for demanding industrial sensing applications where reliable, non-contact detection is required. Housed in a compact plastic enclosure measuring 1.51 in wide, 1.51 in deep, and 1.38 in high, this sensor delivers accuracy of less than 0.3% and is rated NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, and IP67 for use in harsh, wet, and washdown environments. It carries UL Listed certification and is CE Marked, making it a dependable choice for professional automation and machine control installations.
Key Features
- Compact Footprint: Product Width of 1.51 in and Product Length/Depth of 1.51 in for space-constrained mounting.
- Low-Profile Height: Product Height of 1.38 in suits panel and machine-frame installation.
- Durable Construction: Plastic enclosure resists corrosion while supporting demanding NEMA-rated environments.
- Sensor Type: Inductive proximity sensing technology for reliable non-contact target detection.
- High Accuracy: Rated accuracy of < 0.3% for precise, repeatable switching performance.
- Wide Operating Temperature Range: Rated from -13 °F minimum to 158 °F maximum for indoor and outdoor use.
- Color-Coded Target Symbols: Yellow indicates standard frequency, green indicates alternate frequency, red indicates ferrous targets, and blue indicates non-ferrous targets; alternate-frequency units help eliminate interference when mounted close to standard-frequency units.
- Environmental Rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, and IP67 for wet, dusty, and washdown locations.
Certifications & Compliance
- UL Listed
- CE Marked
- NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 Rated
- IP67 Rated
Technical Specifications
- Sensor Type: Inductive proximity
- Enclosure Material: Plastic
- Product Width: 1.51 in
- Product Length/Depth: 1.51 in
- Product Height: 1.38 in
- Operating Temperature - Min: -13 °F
- Operating Temperature - Max: 158 °F
- Environmental Rating: NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 12, NEMA 13, IP67
- Accuracy: < 0.3%
- Certifications: UL Listed
- Compliances: CE Marked
- Warranty: 1 year
Typical Applications
- Industrial Automation and Machine Control
- Position and Presence Sensing on Conveyors and Assembly Lines
- Limit Switch Replacement in Harsh or Washdown Environments
- Outdoor and Wet-Location Industrial Installations
- Panel and Enclosure-Mounted Sensing Systems
Why Eaton?
Eaton engineers the E51 Series Inductive Proximity Sensor with a durable plastic enclosure, UL Listed certification, and CE Marked compliance to support reliable, code-compliant performance across NEMA 3 through NEMA 13 and IP67-rated environments. With < 0.3% accuracy and a wide -13 °F to 158 °F operating range, it is engineered for consistent, dependable sensing in professional industrial automation systems.
Variant Specifications
| Shielding | Model | SKU |
|---|---|---|
| Shielded | E51DS1-P | E51DS1 |
| Unshielded (NEMA Rated) | E51DS2 | E51DS2 |
| Shielded | E51DT1-P | E51DT1 |
| Shielded | E51DT2-P | E51DT2 |
Manufacturer Resources
Product Specs
- Department:
- Electrical
- Operating temperature - max:
- 158 °F
- Product Type:
- Switch
- Product Width:
- 1.51 in
- Product Material:
- Plastic
- Warranty:
- 1 year
- Operating temperature - min:
- -13 °F
- Enclosure material:
- Plastic
- Product Group:
- Accessories
- Product Subgroup:
- Lighting & Lighting Controls
Eaton E51DS1 – Frequently Asked Questions
1) Which E51 sensor head do I order, side sensing or top sensing?
The Eaton E51 D-series sensor heads come both ways, and the choice is purely about which direction the target passes. Side sensing units are E51DS1 (standard frequency) and E51DS2 (alternate frequency); top sensing units are E51DT1 (standard frequency) and E51DT2 (alternate frequency). Pick the face that points at the target from your mounting position, then pick the frequency.
2) Why would I choose the alternate frequency version of the Eaton E51 proximity sensor?
Mounting two standard-frequency inductive sensors close together can cause them to interfere with each other. Eaton's alternate-frequency units (E51DS2 and E51DT2) are built to eliminate that crosstalk, so you alternate standard and alternate units down a line of closely spaced sensing points. Eaton color codes the target symbols: yellow is standard frequency, green is alternate, red marks ferrous targets and blue non-ferrous.
3) Will an Eaton E51 proximity sensor survive a washdown line?
Yes. The E51 Series sensor head is rated NEMA 3, 3S, 4, 4X, 6, 6P, 12 and 13, plus IP67, which covers hosedown, dust, and temporary immersion. The plastic enclosure will not corrode the way a metal barrel can in a caustic washdown. It is UL Listed and CE Marked.
4) What is the difference between the shielded and unshielded E51 versions?
Shielded heads (E51DS1, E51DT1, E51DT2) are the ones to use when the sensor is mounted flush in or surrounded by metal, because the field is contained to the face. The unshielded option is E51DS2, which projects a field further out but needs clearance from surrounding metal to avoid false triggering. All carry the same NEMA and IP67 environmental ratings.
5) Can I mount an Eaton E51 sensor outdoors or in a freezer application?
The operating range runs from -13 degrees F up to 158 degrees F, so unheated outdoor installations and cool storage are within spec. Combined with the NEMA 4X, 6P and IP67 ratings, it handles wet and exposed locations. Below -13 F you need a different sensing technology.
6) How much panel or machine-frame space does the E51 sensor head take up?
It is a compact block, 1.51 in wide by 1.51 in deep by 1.38 in high. That low height helps where the sensor has to sit inside a guard or tight against a conveyor frame rather than protruding like a threaded barrel type.
7) Can an E51 proximity sensor replace a mechanical limit switch on a conveyor?
That is one of its intended uses. Non-contact inductive sensing removes the wear point of a mechanical limit switch arm, and the NEMA 4X, 6P and IP67 rating lets it go where a limit switch would be flooded or fouled. Switching repeatability is rated at better than 0.3 percent accuracy, so the trip point stays put across cycles.
8) Will the Eaton E51 sensor detect aluminum and stainless, or only steel?
Inductive sensing picks up metal targets generally, and Eaton marks the units for target type with color-coded symbols: red for ferrous targets, blue for non-ferrous. Match the symbol on the unit to the metal you are sensing, because sensing distance on non-ferrous targets like aluminum is not the same as on mild steel.
