Eaton Locking Receptacle 50A Three-Pole 125/250V Industrial Back Wiring Non-NEMA

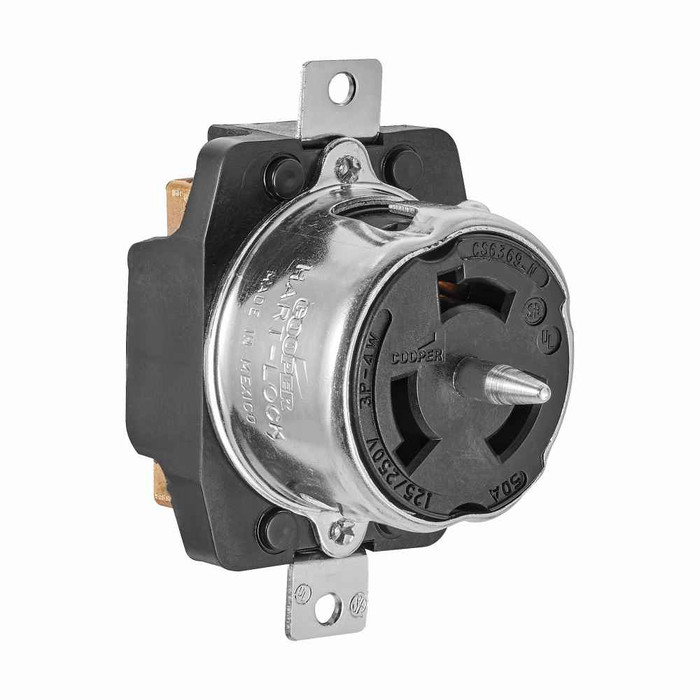

Eaton CS6369 Locking Receptacle

Professional Industrial Electrical Receptacle

The Eaton CS6369 Locking Receptacle delivers exceptional electrical power connection performance for industrial applications. This 50A three-pole locking receptacle provides reliable power distribution designed for professional electricians, electrical contractors, and facility managers, offering the proven reliability and advanced technology that professionals trust from the global leader in intelligent power management.

Professional Features & Benefits

Electrical Performance

• 50 Ampere Rating - High-capacity power handling for demanding industrial electrical applications with reliable current carrying performance
• 125/250V Dual Voltage Rating - Versatile voltage compatibility for various industrial power distribution systems and equipment connections
• Three-Pole Four-Wire Configuration - Complete electrical connection with proper grounding for safe industrial power distribution
• Locking Plug Design - Secure connection prevents accidental disconnection in high-vibration industrial environments

Construction & Protection

• Steel Construction - Durable metal housing provides superior mechanical protection and long-term reliability in industrial settings
• Glass Filled Nylon Face Body - High-strength polymer construction resists impact and environmental stress
• Zinc Plated Brass Contacts - Corrosion-resistant contact material ensures reliable electrical connection and extended service life

Installation & Safety

• Back Wiring Method - Professional rear termination allows clean installation and easy maintenance access
• Extra Heavy Duty Device Grade - Industrial-grade construction withstands demanding commercial and industrial environments

Technical Specifications

Amperage Rating: 50A, Voltage Rating: 125/250V, Configuration: Three-pole four-wire, Wire Size: #10-6 AWG, Wiring Method: Back wiring, Material: Steel construction with glass filled nylon face body, Contact Material: Zinc plated brass, Device Grade: Extra heavy duty, Operating Temperature: -40 to 105°C (-40 to 221°F), Dimensions: 6.25" L x 3.25" H x 3" W, Weight: 0.79 lb, Color: Black, Standard: California standard, Certifications: CSA certified, Compliance: RoHS compliant, Type: Non-NEMA locking receptacle

Installation & Usage

1. Verify power is disconnected and follow proper lockout/tagout procedures before installation
2. Mount receptacle securely in appropriate electrical enclosure or panel using proper mounting hardware
3. Connect #10-6 AWG conductors to back wiring terminals following NEC wiring practices and local electrical codes
4. Ensure proper grounding connection for four-wire configuration safety requirements
5. Verify all connections are tight and properly torqued according to manufacturer specifications
6. Test installation with appropriate electrical testing equipment before energizing circuit

Professional Applications

Ideal for:

• Industrial Power Distribution - Manufacturing facilities, production equipment, and heavy machinery power connections
• Commercial Electrical Systems - Large commercial buildings, retail facilities, and office complex power distribution
• Equipment Connection Points - Motor control centers, industrial control panels, and machinery electrical connections
• Temporary Power Applications - Construction sites, event power distribution, and portable equipment connections
• Maintenance and Service Areas - Equipment service points, maintenance shops, and repair facility power outlets
• High-Current Applications - Welding equipment, large motors, and industrial heating systems
• Vibration-Prone Environments - Manufacturing equipment, conveyor systems, and industrial machinery installations
• California Standard Compliance - Projects requiring California electrical standard compliance and certification

Locking Connection Advantage

The locking plug design provides secure mechanical connection that prevents accidental disconnection in industrial environments with vibration, movement, or high activity. This safety feature ensures continuous power delivery and reduces the risk of arc faults or equipment damage from loose connections, making it essential for critical industrial applications where power interruption could cause production delays or safety hazards.

Why Choose Eaton Quality?

Eaton's century-plus experience in electrical power management innovation ensures this locking receptacle meets the highest standards for industrial electrical applications. With CSA certification and RoHS compliance, this receptacle delivers the trusted performance and electrical safety that electricians, electrical contractors, and facility professionals worldwide depend on for reliable power distribution in demanding industrial environments.
