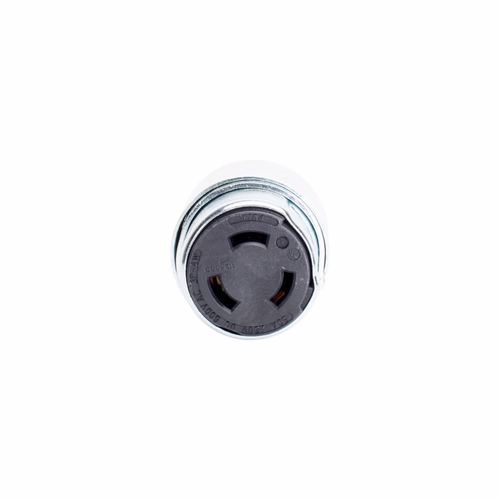

Eaton Industrial Armored Locking Connector, 50A 250V Back-Wiring
Model: EAT-P438899
Eaton
Leviton CS6369-P Industrial Grade California Style Single Locking Receptacle, 50A 125/250V
Model: LEV-VAR-436007
Leviton
Eaton 50A Industrial Locking Receptacle California Standard Non-NEMA Extra Heavy Duty
Model: EAT-CSA
Cooper Wiring Devices

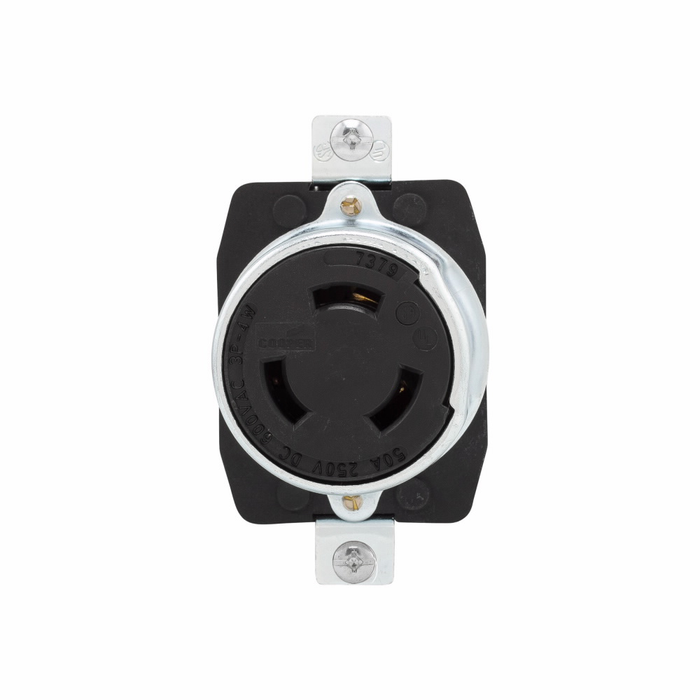

Eaton Industrial Locking Receptacle, 50A, 600V/250V AC/DC, Black
The Eaton Industrial Locking Receptacle is a three-pole, back-wired locking receptacle engineered for demanding industrial power applications. Rated 50A at 600 Vac / 250 Vdc and built to an extra heavy duty device grade, this UL Listed receptacle features a safety grip locking flanged outlet that keeps connections secure under vibration and heavy load. With a durable steel body, glass filled nylon face/body material, and zinc plated brass contacts, it is designed to stand up to tough industrial environments where a secure, non-NEMA locking connection is required. The single receptacle design type accepts #10-6 AWG wire through a back wiring method, and it is finished in black for easy visual identification on the plant floor.
Key Features
- Amperage & Voltage Rating: 50A at 600 Vac / 250 Vdc for demanding industrial power circuits.
- Three-Pole Design: Three-pole, grounding wire configuration for reliable single receptacle installations.
- Allowable Wire Size: Accepts #10-6 AWG wire for flexible field termination.
- Back Wiring Method: Simplifies termination in tight panels and enclosures.
- Durable Construction: Steel body with glass filled nylon face/body material and zinc plated brass contacts for corrosion resistance.
- Extra Heavy Duty Grade: Built for continuous-duty industrial application.
- Safety Grip Locking Flanged Outlet: Special locking feature helps prevent accidental disconnection under vibration or load.
- Operating Temperature: Rated -40 to 105 °C (-40 to 221 °F) for wide-range environmental performance.
- Compact Dimensions: Measures 2.38 in wide, 2.38 in high, and 3.75 in deep for predictable panel and enclosure fit.
Certifications & Compliance
- UL Listed
Technical Specifications
- Number Of Poles: Three-pole
- Contact Material: Zinc plated brass
- Voltage Rating: 600 Vac, 250 Vdc
- Amperage Rating: 50 A
- Device Grade: Extra heavy duty
- NEMA Configuration: Non-NEMA
- Face/Body Material: Glass filled nylon
- Material: Steel
- Allowable Wire Size: #10-6 AWG
- Receptacle Type: Locking
- Warranty: Refer to warranty document.
Typical Applications
- Industrial and Commercial Electrical Installations
- Heavy-Duty Power Distribution Panels
- Manufacturing and Processing Facilities
- Equipment Requiring Secure Locking Power Connections
- Portable Power and Machinery Hookups
- Renovation and New Construction Projects
Why Eaton?
Eaton builds this locking receptacle with a steel body, glass filled nylon face, and zinc plated brass contacts to deliver dependable, code-compliant performance in extra heavy duty industrial settings. The UL Listed rating, wide -40 to 105 °C operating range, and safety grip locking flanged outlet design give electrical professionals confidence in secure, long-lasting 50A power connections for critical industrial equipment and machinery.
Manufacturer Resources
Product Specs
- Number Of Poles:
- Three-pole
- Contact material:
- Zinc plated brass
- Product Width:
- 2.38 in
- Voltage Rating:
- 600V
- Amperage Rating:
- 50A
- Device grade:
- Extra heavy duty
- Product Color:
- Black
- NEMA configuration:
- Non-NEMA
- Product Length/Depth:
- 3.75 in
- Special features:
- Safety grip locking flanged outlet
- Application:
- Industrial
- Wiring method:
- Back
- Operating temperature:
- -40 to 105 °C (-40 to 221 °F)
- Face/body material:
- Glass filled nylon
- Product Height:
- 2.38 in
- Product Type:
- Receptacle
- Product Material:
- Steel
- Design type:
- Single receptacle
- Allowable wire size:
- #10-6 AWG
- Warranty:
- Refer to warranty document.
- Receptacle type:
- Locking
- Number of wires:
- Grounding
- Certifications:
- UL Listed
- Department:
- Electrical
- Configuration:
- Single Receptacle
- Grade:
- Extra Heavy Duty
- Listing:
- UL Listed
- Product Group:
- Wiring Devices
