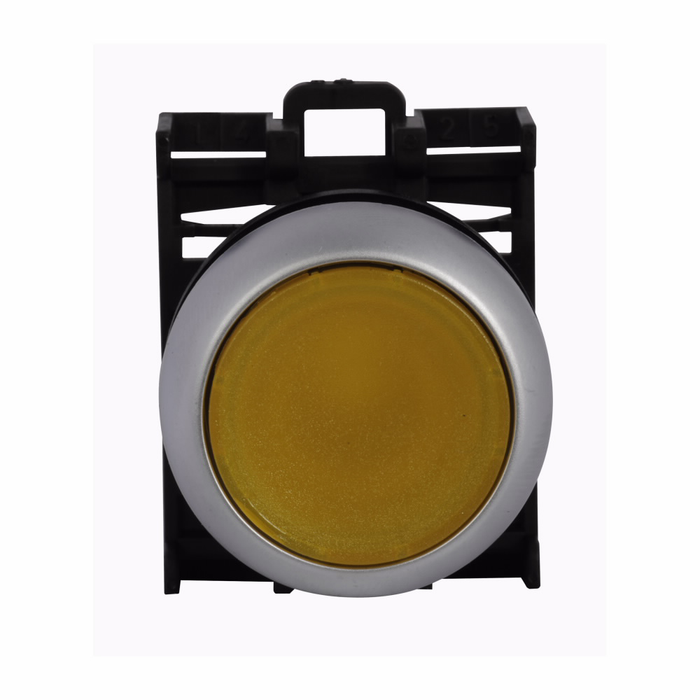

Eaton M22 Modular Illuminated Pushbutton, Momentary, Silver Bezel

Eaton M22 Modular Illuminated Pushbutton, Momentary, Silver Bezel

(No reviews yet) Write a Review

Model: M22-DL-A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$14.03
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton M22 Modular Panel-Mount Pushbutton

The Eaton M22 Pushbutton is a 22.5 mm modular panel-mount operator built for demanding industrial control panels and machine interfaces. This M22 series pushbutton is rated IP67, IP69K, NEMA 4X, and NEMA 13, making it suitable for washdown, wet, and dust-laden environments. Backed by a rated life of 5,000,000 mechanical operations, it delivers reliable, code-compliant performance for professional electrical and automation installations. Available in a range of actuator and bezel options to suit your control-panel requirements.

Key Features

  • Trade Size: 22.5 mm modular design for standard M22 series panel cutouts and mounting adapters.
  • Actuator Options: Available in multiple actuator styles and functions for a wide range of start/stop, control, and signaling operations.
  • Bezel Options: Offered in a selection of bezel finishes for a clean, professional panel appearance.
  • Environmental Rating: Rated IP67, IP69K, NEMA 4X, and NEMA 13 for washdown-duty, wet-location, and dust-tight applications.
  • Mechanical Life: Rated for 5,000,000 mechanical operations, supporting long-term reliability in high-cycle applications.
  • Included Hardware: Includes a contact block mounting adapter for streamlined assembly.
  • Series: Part of the Eaton M22 modular pilot device series for consistent panel-wide compatibility.

Certifications & Compliance

  • IP67 Rated
  • IP69K Rated
  • NEMA 4X Rated
  • NEMA 13 Rated

Technical Specifications

  • Series: M22
  • Size: 22.5 mm
  • Type: 22.5 mm Modular
  • Operating Cycles: 5 million
  • Product Height: .39 in
  • Product Width: 1.17 in
  • Product Length/Depth: 1.17 in
  • Environmental Rating: IP67, IP69K, NEMA 4X, NEMA 13
  • Catalog Notes: Includes contact block mounting adapter.

Typical Applications

  • Industrial Control Panels and Operator Interfaces
  • Machine Start/Stop and Signal Control Stations
  • Washdown and Sanitary Processing Environments
  • Outdoor and Wet-Location Equipment Enclosures
  • Manufacturing and Automation Equipment
  • Panel Retrofits and New Control System Builds

Why Eaton?

Eaton's M22 series modular pilot devices are engineered for consistent fit, finish, and function across an entire control panel, backed by IP67, IP69K, NEMA 4X, and NEMA 13 environmental ratings and a 5,000,000 mechanical operation rated life. For professional electrical and automation work where long-term reliability and washdown durability matter, the M22 modular pushbutton delivers dependable, code-compliant performance panel after panel.

Variant Specifications

ColorActuatorSKUMPN
WhitePush-buttonM22-DL-AM22DLA
White/BlueStandardM22-DL-WM22DLW
Yellow/Green/RedStandardM22-DL-YM22DLY
WhiteExtendedM22-DLH-AM22DLHA

Manufacturer Resources

Product Specs

Catalog Notes:
Includes contact block mounting adapter.
Actuator function:
Momentary
Department:
Electrical
Series:
M22
Illumination:
Illuminated
Product Type:
Pushbutton
Product Size:
22.5 mm
Operating cycles:
5 million
Application:
Pushbutton
Configuration:
Momentary
Product Width:
1.17 in
Special features:
M22 series
Standards:
NEMA 4X
Product Length/Depth:
1.17 in
Bezel:
Silver
Environmental rating:
IP67, IP69K, NEMA 4X, NEMA 13
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton M22-DL-A – Frequently Asked Questions

1) What panel cutout does the Eaton M22 illuminated pushbutton need?
The M22 actuator mounts in the standard 22.5 mm round cutout used across the Eaton M22 modular pilot device line, so it drops into any panel already punched for 22.5 mm operators. The front footprint measures 1.17 in by 1.17 in, which is what you need to clear adjacent devices when laying out a row of buttons.
2) Can an Eaton M22 pushbutton be used in a washdown or outdoor enclosure?
Yes. The M22 illuminated pushbutton carries IP67, IP69K, NEMA 4X, and NEMA 13 ratings, so it holds up to high-pressure, high-temperature washdown, wet locations, dust, and oil-laden air. That IP69K rating is the one that matters in food and beverage or sanitary processing where the panel gets hosed down at pressure.
3) Is the Eaton M22-DL pushbutton momentary or maintained?
Momentary. The actuator returns to its rest position as soon as you let go, which is what you want for machine start, jog, reset, and signal functions. For a latching on/off function you need a maintained M22 actuator instead, not this one.
4) Does the Eaton M22 illuminated pushbutton come with contact blocks and a lamp?
What ships with the actuator is the contact block mounting adapter. The contact blocks and the LED element themselves are separate M22 components you order to suit the circuit, so budget for those on the BOM before the panel gets built.
5) What lens colors does the Eaton M22-DL illuminated pushbutton come in?
Four actuators are offered: M22-DL-A in white with a push-button style actuator, M22-DL-W in white/blue, M22-DL-Y in yellow/green/red, and M22-DLH-A, a white extended actuator. The multi-color parts carry more than one lens so you can set the color to match the function on the panel legend.
6) What is the difference between the M22-DL-A and the M22-DLH-A pushbutton?
Actuator height. The M22-DL-A is a flush push-button style actuator, while the M22-DLH-A uses an extended actuator that stands proud of the bezel. Pick the extended version where operators wear gloves or need to hit the button without looking; stay flush where you want to reduce the chance of an accidental press.
7) How many operations is the Eaton M22 pushbutton rated for?
5 million mechanical operations. On a station cycled a few hundred times a shift that is years of service, which is why this series gets specified on high-cycle machine start/stop stations rather than a general-purpose operator.
