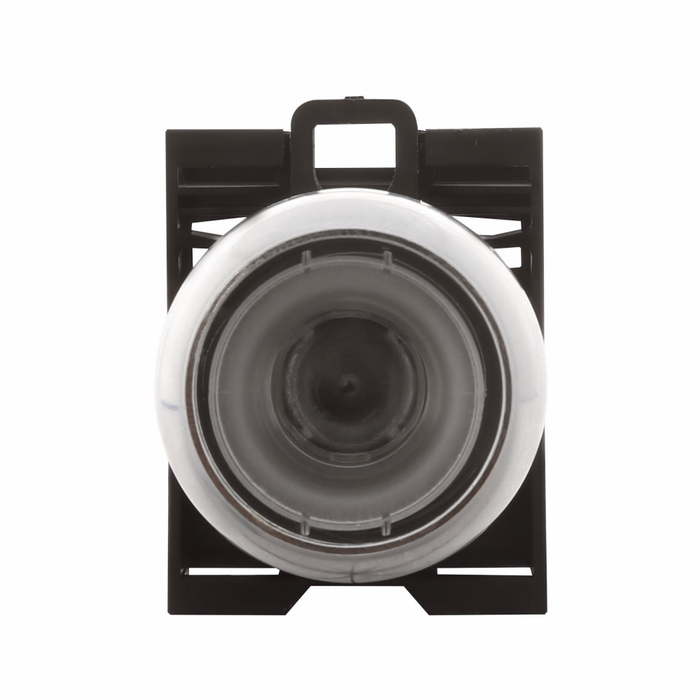

Eaton M22 Modular Pushbutton, Non-Illuminated Momentary, Metal, NEMA 4X/13

Eaton M22 Modular Pushbutton, Non-Illuminated Momentary, Metal, NEMA 4X/13

(No reviews yet) Write a Review

Model: M22M-D-X

In Stock (leaves warehouse same day if ordered before 3pm ET)

$10.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton M22 Modular Pushbutton, Non-Illuminated Momentary, Metal, NEMA 4X/13

The Eaton M22 Modular Pushbutton is a 22.5 mm, non-illuminated, momentary control device built with a durable metal bezel for demanding industrial environments. Part of Eaton's M22MD Series, this buttonless pilot device features a green button and flush mounting, and is rated NEMA 4X, 13 with IP67 and IP69K (IP66 key-release) environmental protection for reliable operation in washdown, outdoor, and harsh-duty applications. It is CE Marked for compliance in demanding commercial and industrial control panels.

Key Features

  • Trade Size: 22.5 mm mounting size for standard M22 series panel cutouts.
  • Durable Construction: Metal bezel construction for enhanced strength and long service life in industrial settings.
  • Operating Mode: Momentary, non-illuminated pushbutton for direct manual control actions.
  • Mounting Method: Flush mounting for a clean, low-profile panel installation.
  • Button Color: Green, for clear visual identification on control panels.
  • Environmental Rating: NEMA 4X, 13 rated with IP67 and IP69K (IP66 key-release) protection for washdown and wet or dusty locations.
  • Special Features: Buttonless design for a streamlined, tamper-resistant profile.
  • Series: Part of the Eaton M22 modular pilot device series for consistent panel integration.

Certifications & Compliance

  • CE Marked
  • NEMA 4X, 13 Rated
  • IP67 Rated
  • IP69K Rated (IP66 Key-Release)

Technical Specifications

  • Series: M22
  • Product Type: Pushbutton
  • Illumination: Non-illuminated
  • Mounting Method: Flush
  • Size: 22.5 mm
  • Button Color: Green
  • Operating Mode: Momentary
  • Bezel: Metal
  • Compliances: CE Marked
  • Environmental Rating: IP67, IP69K (IP66 key-release)
  • Special Features: Buttonless

Typical Applications

  • Industrial Machine Control Panels
  • Washdown and Wet-Location Environments
  • Outdoor Equipment and Enclosure Controls
  • Food and Beverage Processing Equipment
  • Harsh-Duty Manufacturing and Automation Systems

Why Eaton?

Eaton's M22 modular pushbutton delivers rugged, metal-bezel construction backed by NEMA 4X, 13 and IP67/IP69K environmental ratings, making it a dependable choice for operators who need consistent performance in wet, dusty, or washdown conditions. The CE Marked, buttonless design supports clean panel integration for code-compliant, professional electrical control installations. Choose Eaton M22 Series pilot devices for long-lasting, reliable control in demanding industrial environments.

Manufacturer Resources

Product Specs

Illumination:
Non-illuminated
Mounting Method:
Flush
Product Size:
22.5 mm
Button color:
Green
Operating mode:
Momentary
Series:
M22
Bezel:
Metal
Compliances:
CE Marked
Environmental rating:
IP67, IP69K (IP66 key-release)
Special features:
Buttonless
Product Type:
Pushbutton
Department:
Electrical
Product Material:
Metal
Product Color:
Green
Configuration:
Momentary
Standards:
NEMA 4X
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton M22M-D-X – Frequently Asked Questions

1) Will an Eaton M22 pushbutton fit a standard 22.5 mm panel cutout?
Yes. The M22 modular pushbutton is a 22.5 mm device and drops into the standard M22 panel hole used across the series, with flush mounting for a low-profile face on the panel door.
2) Does the M22M-D pushbutton include contact blocks, or do I need to order them separately?
The M22M-D is the operator (actuator) head only. Contact blocks and the mounting adapter are separate M22 modular components and have to be specified and ordered on their own to complete a working NO/NC circuit. That is how the M22 modular system is built: the operator, the fixing adapter, and the contact elements stack together behind the panel.
3) Is this a momentary or a maintained pushbutton?
Momentary. The button returns on release, so it signals only while pressed. If you need the contact to stay changed after you let go, you want a maintained or a selector-type M22 operator instead, not this one.
4) What button colors does the Eaton M22M-D come in?
Three operator types are offered: M22M-D-G-GB1 and M22M-D-R, and M22M-D-X. The green button is the standard catalogued color for the M22M-D described here, with red available as M22M-D-R for stop or off functions.
5) Can I use this as an illuminated indicator or pilot light?
No. This M22 operator is non-illuminated, so there is no lamp or LED element behind the button and no place to fit one. For a lit button or a status indicator you need the illuminated M22 operator or an M22 indicator light.
6) Does the Eaton M22 pushbutton meet CE requirements for a European-bound control panel?
It is CE Marked, which covers panel builds shipping into or built to European requirements. Beyond CE, the device carries NEMA 4X and 13 ratings for enclosure integrity.
7) Can I mix this metal-bezel M22 with the plastic-bezel M22 buttons already on my panel?
Functionally yes, since both use the same 22.5 mm M22 cutout and the same modular contact blocks behind the panel. The visible difference is the front: this one has a metal bezel, so on a panel populated with plastic-bezel devices the ring finish will not match. For a uniform look across a fleet of panels, standardize on one bezel material.
8) What does the buttonless M22 design mean on a machine panel?
Buttonless refers to the low, flush-profile actuator face: it sits nearly level with the panel rather than standing proud like an extended or mushroom head. That reduces the chance of accidental actuation from a passing operator or cart, and it is easier to wipe down on a food and beverage or washdown line. If you want the opposite, a head an operator can hit fast and by feel, choose an extended or mushroom M22 operator instead.
