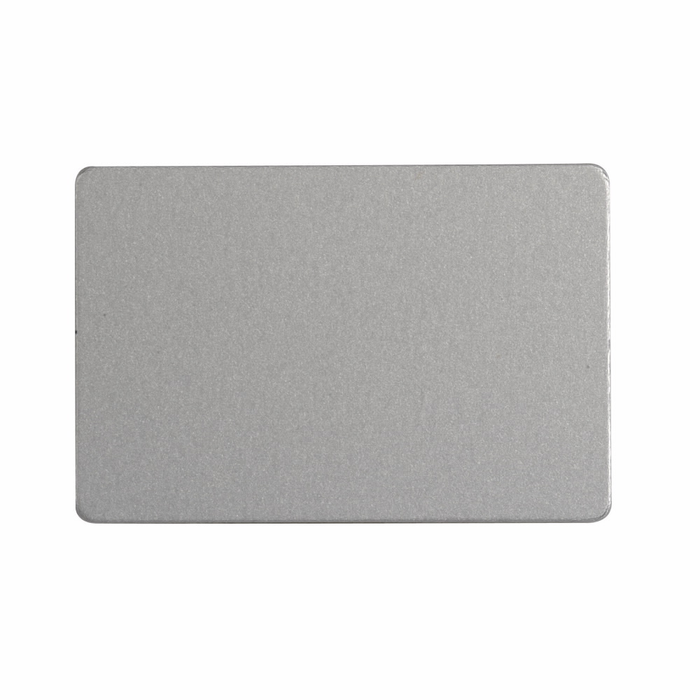

Eaton M22 Modular Pushbutton Insert Label, Blank Silver Aluminum

Eaton M22 Modular Pushbutton Insert Label, Blank Silver Aluminum

(No reviews yet) Write a Review

Model: M22-XST

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton M22 Modular Pushbutton Insert Label, Blank Silver Aluminum

The Eaton M22 Modular Pushbutton Insert Label is a blank, silver aluminum legend insert designed for M22 modular pushbutton and pilot device assemblies, sized for 18x27mm openings. Built for durability in demanding environments, this insert carries an IP66, NEMA 4X, and NEMA 13 environmental rating, making it well suited for washdown and harsh industrial applications where reliable panel labeling is required. With no inscription, it provides a clean, uniform look for control panels and operator stations that don't require printed text, giving panel builders flexibility for custom legend plates or blank cover applications.

Key Features

  • Dimensions: Compact .5 in product width, 1.06 in product length/depth, and .71 in product height, sized to fit 18x27mm M22 modular openings.
  • Durable Construction: Aluminum material offers corrosion resistance, rigidity, and long-term durability in industrial control environments.
  • Finish: Silver color provides a clean, professional, low-glare appearance on control panels and enclosures.
  • Blank Insert: No inscription is provided, making this insert ideal for custom labeling, engraving, or applications where a plain legend is preferred.
  • Environmental Rating: IP66, NEMA 4X, and NEMA 13 rated for protection against dust, driving water, hose-directed washdown, and corrosive environments.
  • Modular Compatibility: Engineered to fit Eaton M22 modular pushbutton and pilot device systems for consistent panel appearance.
  • Compliance Marking: CE Marked for use in applicable installations, with CSA Certification for added quality assurance.

Certifications & Compliance

  • CSA Certified
  • CE Marked
  • IP66 Rated
  • NEMA 4X Rated
  • NEMA 13 Rated

Technical Specifications

  • Product Width: .5 in
  • Inscription: No inscription
  • Color: Silver
  • Product Length/Depth: 1.06 in
  • Product Height: .71 in
  • Material: Aluminum
  • Environmental Rating: IP66, NEMA 4X, NEMA 13
  • Compliances: CE Marked
  • Certifications: CSA Certified
  • Warranty: Eaton Selling Policy 25-000, one (1) year from date of installation or eighteen (18) months from date of shipment, whichever occurs first.

Typical Applications

  • Industrial Control Panels and Operator Stations
  • Machine Operator Interfaces and HMI Panels
  • Washdown and Wet-Location Equipment
  • Panelboard and Switchgear Pushbutton Stations
  • Custom-Labeled Pilot Device Assemblies
  • OEM Control Enclosures Requiring Blank Legend Plates

Why Eaton?

Eaton engineers the M22 modular pushbutton insert label with rugged aluminum construction and an IP66, NEMA 4X, and NEMA 13 environmental rating, delivering CSA certified and CE marked reliability for demanding industrial control applications. This blank silver insert supports consistent, code-compliant panel labeling and gives electrical professionals a durable, ready-to-install option for pilot device assemblies across commercial and industrial facilities.

Manufacturer Resources

Product Specs

Product Width:
.5 in
Inscription:
No inscription
Product Color:
Silver
Product Length/Depth:
1.06 in
Compliances:
CE Marked
Product Height:
.71 in
Product Material:
Aluminum
Environmental rating:
IP66, NEMA 4X, NEMA 13
Certifications:
CSA Certified
Product Type:
Insert Label
Department:
Electrical
Listing:
CSA Certified
Standards:
CE Marked
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices

Eaton M22-XST – Frequently Asked Questions

1) Will the Eaton M22-XST blank insert fit a standard M22 pushbutton legend opening?
The M22-XST is made for Eaton M22 modular pushbutton and pilot device assemblies with 18x27mm legend openings. It is the blank version, so it drops into the same holder any printed M22 legend insert uses. If your operator station is built on a different pilot device platform (22mm bezels from another series), the 18x27mm insert geometry will not seat correctly.
2) Does the M22-XST insert label come with any text printed on it?
No text at all. The inscription field is blank, which is the point of this part: panel builders use it where a legend holder has to be filled but no printed wording is wanted, or where the shop engraves its own text or applies a custom label. If you need START, STOP, E-STOP or an arrow already marked, you want a printed M22 legend insert rather than the XST.
3) Can Eaton M22 blank insert labels be used on washdown equipment?
Yes. The blank M22 insert is rated IP66, NEMA 4X and NEMA 13, which covers hose-directed water, dust, and oil or coolant spray. That makes it usable on food and beverage lines, packaging equipment and other machines that get sanitized. The rating is achieved as part of a properly assembled M22 device stack, so the holder and bezel it sits in have to be seated correctly for the enclosure to hold its rating.
4) What material and finish is the Eaton M22-XST insert, and will it hold up in a corrosive plant?
Aluminum, in a silver finish. The aluminum body resists corrosion and stays rigid, which is why it pairs with the NEMA 4X rating for corrosive and washdown areas rather than a plain plastic legend. The silver is low glare, so a run of them across an operator station reads uniformly under panel lighting.
5) Is the Eaton M22-XST insert acceptable for a panel that has to be CSA certified?
The M22-XST is CSA Certified and CE Marked, so it does not compromise a control panel being built to a CSA scope. For institutional and OEM work where every component in the enclosure has to carry a recognized mark, that is usually the deciding detail on a labeling part.
6) Should I order blank M22 inserts and engrave them, or buy pre-printed legends?
Buy the blank M22-XST when your legends are plant-specific, in a language or abbreviation Eaton does not stock, or when you want a run of identical blanks for future function changes. Buy pre-printed inserts for standard functions, since nobody has to touch them on site. Because the XST is aluminum rather than plastic, it takes engraving and stays legible in washdown areas better than a printed plastic film would.
7) What is the Eaton part number for the blank silver M22 legend insert?
Order it as Eaton M22-XST. That is the blank silver aluminum legend insert for the M22 modular pushbutton and pilot device line. Distributors will also see it written without the hyphen as M22XST; same part.
