Eaton M22R Series Potentiometer, Knob Actuator, IP20

Eaton M22R Series Potentiometer, Knob Actuator, IP20

(No reviews yet) Write a Review

Model: M22-R10K

In Stock (leaves warehouse same day if ordered before 3pm ET)

$157.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

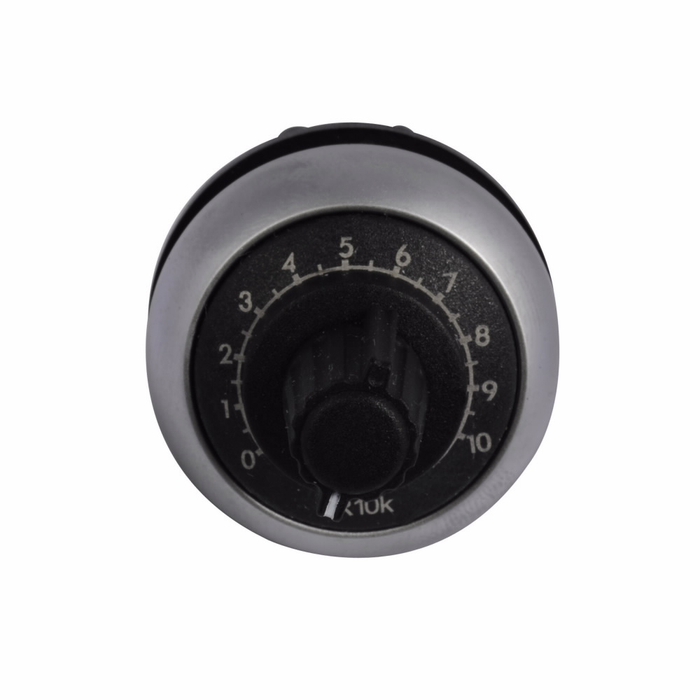

Eaton M22R Series Potentiometer, Knob Actuator, IP20

The Eaton M22R Series Potentiometer is a 22.5 mm pilot device designed for panel-mount control applications requiring smooth, precise adjustment. Featuring a knob-style actuator with a Silver bezel and Black finish, this potentiometer includes a built-in resistive element and a legend surrounding the knob for clear operator identification. Rated IP20 and CSA Certified, it is engineered for reliable performance in industrial control and operator interface panels.

Key Features

  • Mounting Size: 22.5 mm cutout, compatible with standard M22 series pilot device panels.
  • Knob Actuator: Knob-style actuator with a built-in legend surrounding the knob for at-a-glance operator reference.
  • Bezel Finish: Silver bezel paired with a Black body for clean panel aesthetics.
  • Resistive Element Included: Integrated resistive element allows direct use as a panel-mounted potentiometer without additional components.
  • Environmental Rating: IP20 rated for protection against solid foreign objects in standard indoor control environments.
  • Compact Dimensions: Measures 1.17 in wide x 1.17 in deep x 1.15 in high, suited for space-conscious panel layouts.
  • M22 Series Compatibility: Part of the Eaton M22 modular pilot device platform for consistent panel design across control systems.

Certifications & Compliance

  • CSA Certified
  • IP20 Environmental Rating

Technical Specifications

  • Series: M22
  • Department: Electrical

Typical Applications

  • Industrial Control Panels
  • Machine Operator Interfaces
  • Process Control Equipment
  • Building Automation and HVAC Control Panels
  • OEM Equipment Panels
  • Panel-Mounted Adjustment and Calibration Controls

Why Eaton?

Eaton's M22 Series pilot devices are built for consistent, dependable performance across industrial and commercial control panels. With a CSA Certified rating, an IP20 environmental rating, and an integrated resistive element, this M22R potentiometer delivers the reliability professionals expect from Eaton's control platform. Choose Eaton for code-compliant, panel-ready components that support long-term operational performance.

Manufacturer Resources

Product Specs

Product Width:
1.17 in
Product Color:
Black
Product Size:
22.5 mm
Product Length/Depth:
1.17 in
Product Height:
1.15 in
Bezel:
Silver
Actuator:
Knob
Environmental Rating:
IP20
Certifications:
CSA Certified
Department:
Electrical
Product Finish:
Silver
Listing:
CSA Certified
Product Group:
Motor Control & Automation
Product Subgroup:
Push Buttons & Pilot Devices
Product Length:
1.17 in
Product Weight:
0.068 lb
Series:
M22
Product Type:
Potentiometer

Eaton M22-R10K – Frequently Asked Questions

1) What resistance values does the Eaton M22R potentiometer come in?
Two resistance values are offered: M22-R10K (10K ohm) and M22-R47K (47K ohm). Both share the same knob actuator, silver bezel, black body and 22.5 mm mounting, so the resistance value is the only ordering decision between them. Match it to what your controller or drive speed-reference input expects, because the taper value is not field changeable.
2) Is an IP20 potentiometer okay for a washdown or outdoor control panel?
No. IP20 covers protection against solid foreign objects only, with no water protection at all, so the M22R knob potentiometer belongs inside a dry indoor enclosure. For washdown areas, wet process rooms, or anything exposed to weather, put it behind a sealed enclosure window or use a device carrying a water-rated IP number instead.
3) Do I need to order a separate resistive element or potentiometer module with this?
No separate element is needed. The resistive element is built into the M22R device, so the knob actuator and the pot come as one assembly ready to mount in the 22.5 mm hole. That is different from M22 pushbuttons and selectors, where you buy the operator and the contact block separately.
4) How much room do I need behind the panel door for the M22R potentiometer?
Plan for a device footprint of 1.17 in wide by 1.17 in deep by 1.15 in high. The 1.17 in depth figure is what matters for clearance against terminal blocks, DIN rail, or wireway mounted close to the door, and the 1.17 in square outline sets your minimum center-to-center spacing if you are lining up several devices in a row.
5) Is the Eaton M22R potentiometer certified for use in a Canadian control panel?
It is CSA Certified, which is the listing panel shops in Canada are typically asked to show for pilot devices. That is the only agency mark carried on the device; nothing further is claimed for it.
6) Will the finish match the other M22 devices already on my panel door?
It should. The M22R potentiometer uses a silver bezel with a black body, which is the standard M22 look, so it sits consistently alongside existing M22 pushbuttons and selector switches on the same door. The knob also carries a legend around it for operator reference, so you do not need a separate legend plate to mark the adjustment range.
