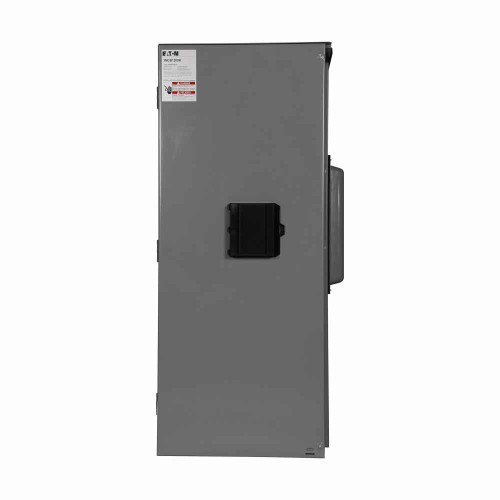

Eaton main circuit breaker, 900A, Aluminum, NEMA 3R, Underground, 100 kAIC, NGH, Four-wire, Three-phase, 120/208V, (4) #4/0 AWG-500 kcmil
Manufacturer Resources
Product Specs
- Amperage Rating:
- 900 A
- Bus Material:
- Aluminum
- Catalog Notes:
- Units are primarily bottom feed, but can be top fed by pulling wire past live bus to make breaker connection. Can be used with residential modular stacks as a center fed main.
- Certifications:
- UL Listed
- Enclosure:
- NEMA 3R
- Feed Type:
- Bottom
- Interrupt Rating:
- 100 kAIC
- Main Circuit Breaker:
- NGH
- Number Of Wires:
- 4
- Phase:
- Three-phase
- Product Height:
- 47.6 in
- Product Length Depth:
- 13.8 in
- Product Weight:
- 160 lb
- Product Width:
- 20.2 in
- Voltage Rating:
- 120/208 V
- Wire Size:
- (4) #4/0 AWG-500 kcmil
- Product Group:
- Electrical
