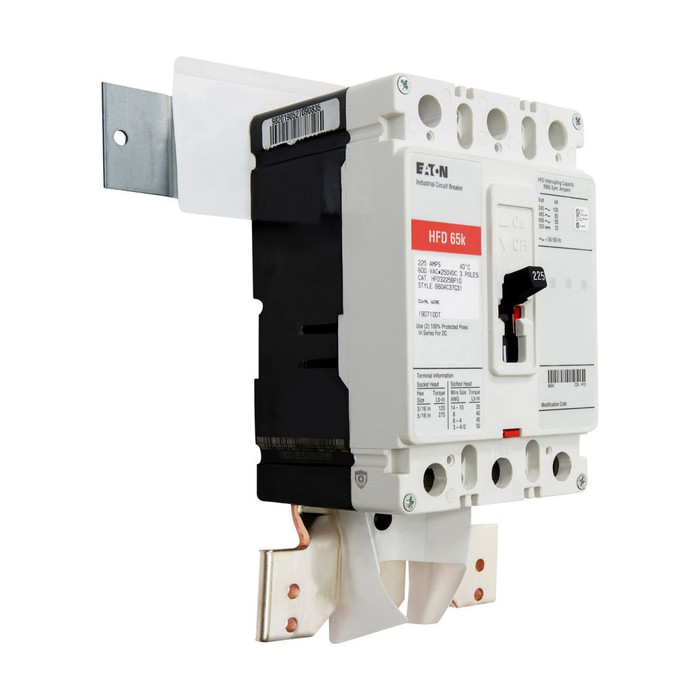

Eaton Main Breaker Kit Pow-R-Stock Series ED Single/Three Phase Top/Bottom Mount
Professional Main Breaker Solution for Versatile Panel Applications
The Eaton Main Breaker Kit from the trusted Pow-R-Stock Series ED delivers reliable circuit protection with flexible mounting options for both single-phase and three-phase electrical panels. This compact 7 lb unit features ED-type circuit breaker technology with top and bottom mounting capability, providing professional-grade performance in a space-efficient 3" x 4" x 6" design.
Professional Features & Benefits
- ED Circuit Breaker Type: Provides reliable overcurrent protection with proven Eaton circuit breaker technology for consistent performance.
- Dual Phase Compatibility: Supports both single-phase and three-phase applications, offering versatility for diverse electrical system requirements.
- Flexible Mounting Options: Top and bottom mounting capability allows for optimal installation positioning in various panel configurations.
- Compact Design: 3" x 4" x 6" dimensions maximize space efficiency while maintaining full functionality and accessibility.
- Pow-R-Stock Series Quality: Part of Eaton's established Pow-R-Stock product line, ensuring reliable performance and compatibility.
- Lightweight Construction: 7 lb weight facilitates easier handling and installation while maintaining robust construction.
Technical Specifications
- Circuit Breaker Type: ED
- Mounting Method: Top, bottom
- Phase: Single-phase, three-phase
- Product Height: 3 in
- Product Length Depth: 6 in
- Product Weight: 7 lb
- Product Width: 4 in
- Series: Pow-R-stock
Professional Applications
- Residential Electrical Panels
- Commercial Building Distribution
- Industrial Control Panels
- Multi-Unit Properties
- Professional Offices
- Retail Establishments
- Light Industrial Facilities
Why Choose Eaton Quality?
Eaton's Pow-R-Stock Series represents decades of electrical engineering excellence, delivering dependable main breaker solutions with the compact design and dual-phase flexibility needed for modern electrical installations. The ED circuit breaker type ensures consistent overcurrent protection while the versatile mounting options provide installation flexibility for diverse applications.
Manufacturer Resources
Product Specs
- Circuit Breaker Type:
- ED
- Mounting Method:
- Top, bottom
- Phase:
- Single-phase, three-phase
- Product Height:
- 3 in
- Product Length Depth:
- 6 in
- Product Weight:
- 7 lb
- Product Width:
- 4 in
- Series:
- Pow-R-stock
- Department:
- Electrical
- Product Group:
- Circuit Protection
- Product Type:
- Circuit Breaker
- Product Subgroup:
- Circuit Breakers
- Product Length:
- 6 in
Eaton BKED225 – Frequently Asked Questions
1) Will the Eaton BKED main breaker kit work in a three-phase panel, or is it single-phase only?
Both. The Pow-R-Stock ED main breaker kit is rated for single-phase and three-phase applications, so the same kit covers a 120/240V single-phase service panel and a three-phase distribution panel. That is the phase rating on the kit itself; the panel it goes into still has to be an Eaton enclosure that accepts an ED-frame main breaker conversion.
2) Can the Eaton Pow-R-Stock ED breaker kit be installed at the bottom of the panel instead of the top?
Top or bottom, both are supported. The mounting method on the ED kit covers top and bottom positions, which matters when the service feed enters from below and you do not want to run the conductors the full height of the enclosure to reach a top-fed main.
3) What amperages does the Eaton BKED main breaker kit come in?
Three ratings: 100A (BKED100), 200A (BKED200) and 225A (BKED225). Pick the one that matches the panel bus rating and the service size, not the load calc alone. A 225A main in a 200A rated bus does not buy headroom, it defeats the bus protection.
4) I need a 150A main breaker kit for an Eaton panel, will one of these work?
No. The Pow-R-Stock ED kit is stocked at 100A, 200A and 225A only, so there is no 150A option in this group. Going up to the 200A kit is only correct if the panel bus and the service conductors are rated for 200A; otherwise you need a different frame kit at the 150A rating.
5) How much space do I need to leave in the panel for the Eaton ED main breaker kit?
The kit measures 3 in high, 4 in wide and 6 in deep. The 6 in depth is the number to check first against a shallow or flush-mounted enclosure, and the 3 x 4 face has to clear the gutter space where the kit lands at the top or bottom of the interior.
6) What is the difference between a main breaker kit and just buying a main breaker?
A main breaker kit like the Eaton BKED is the ED-frame breaker plus the mounting hardware that converts a main lug panel into a main breaker panel, which is why it is specified by mounting position (top or bottom) rather than only by amperage. A loose ED breaker on its own gives you the device with no means of landing it on the panel bus. If the panel already has a main breaker position occupied, the loose breaker is the replacement; if you are converting a main lug interior, the kit is what you need.
7) Is the ED frame the right breaker type for a commercial distribution panel, or should I be looking at a larger frame?
ED is a molded case frame that tops out at 225A in this kit, which covers residential services, small commercial distribution and control panel mains. Above 225A the ED frame is not the answer and you move to a larger Eaton frame class. For a multi-family or retail building where the service is 200A or 225A, the ED kit is the correct main.
8) Is an Eaton main breaker kit a one-person install, or do I need help lifting it?
7 lb, so one electrician handles it on a ladder without a second set of hands. That is the kit alone, not the panel it mounts into.
