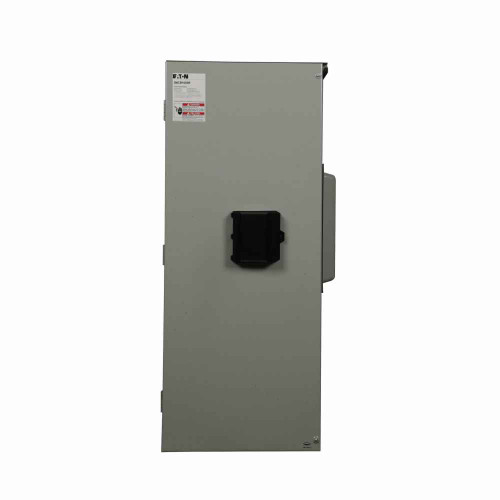

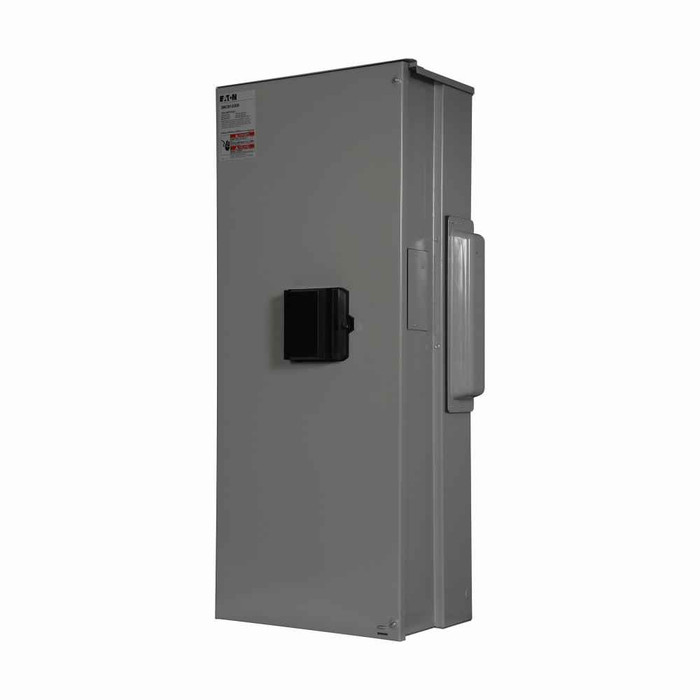

Eaton main circuit breaker, Bus duct connector, 1200A, Copper, Underground, Four-wire, Three-phase, 120/208V, (4) #4/0 AWG-500 kcmil, Compression lug pads, Internal, Left mounting, Standard T
3HMCB1200BCLGT - spec sheet
3HMCB1200BCLGT - spec sheet
Manufacturer Resources
Product Specs
- Accessories:
- Compression lug pads
- Amperage Rating:
- 1200A
- Bus Material:
- Copper
- Catalog Notes:
- Right means that the bus duct is to the right of the main and left means that the bus duct is to the left of the main
- Certifications:
- UL Listed
- Feed Type:
- Bottom
- Ground:
- Internal
- Mounting:
- Left
- Number Of Wires:
- Four-wire
- Phase:
- Three-phase
- Phasing:
- Standard T
- Product Height:
- 39.4 IN
- Product Length Depth:
- 13.8 IN
- Product Weight:
- .01 LB
- Product Width:
- 27 IN
- Type:
- Bus duct connector
- Voltage Rating:
- 120/208V
- Wire Size:
- (4) #4/0 AWG-500 kcmil
- Product Group:
- Electrical
