Eaton BR Series Main Lug Loadcenter 120/240V Single-Phase NEMA 1 Enclosure

Eaton BR Series Main Lug Loadcenter 120/240V Single-Phase NEMA 1 Enclosure

Professional electrical distribution for residential and commercial applications

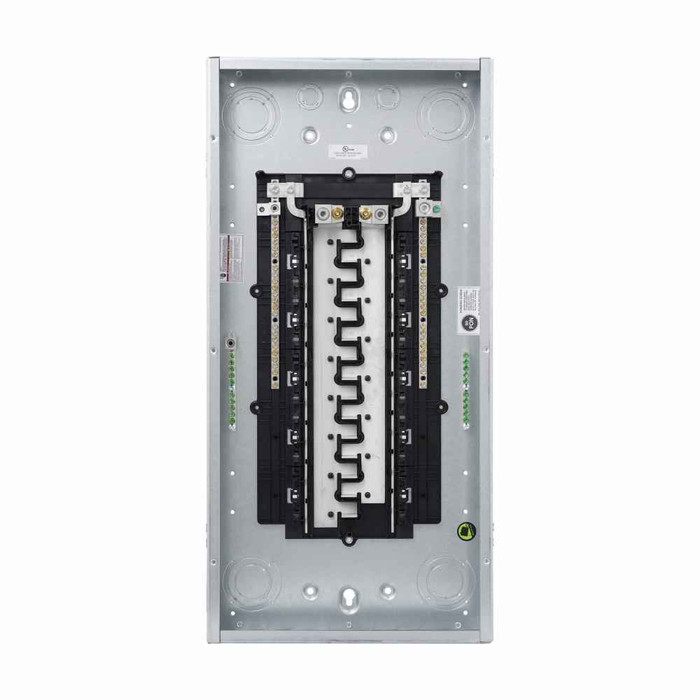

The Eaton BR Series Main Lug Loadcenter delivers reliable electrical distribution with 120/240V single-phase capacity in a durable NEMA 1 metallic enclosure. This professional-grade loadcenter features aluminum bus construction and 10 kAIC interrupt rating, designed for use with Type BR 1-inch breakers to provide versatile circuit protection and power distribution.

Professional Features & Benefits

• 120/240V Single-Phase Rating: Provides standard residential and light commercial voltage compatibility for versatile installation applications.
• NEMA 1 Metallic Enclosure: Delivers robust protection against environmental factors while maintaining professional appearance and durability.
• 10 kAIC Interrupt Rating: Ensures reliable fault current interruption capability for enhanced electrical safety and system protection.
• Aluminum Bus Construction: Offers excellent conductivity and corrosion resistance for long-term reliable electrical connections.
• Type BR Breaker Compatibility: Designed specifically for Type BR 1-inch breakers, ensuring proper fit and optimal electrical performance.
• UL 67 Certification: Meets rigorous safety standards for panelboards, providing confidence in professional electrical installations.
• Flexible Mounting Options: Supports both surface and flush mounting methods for adaptable installation requirements.

Technical Specifications

• Bus Material: Aluminum
• Certifications: UL 67
• Cover Type: Cover included
• Enclosure: NEMA 1
• Enclosure Material: Metallic
• Interrupt Rating: 10 kAIC
• Mounting Method: Surface, flush
• Nema Rating: NEMA 1
• Number Of Poles: Single-pole
• Number Of Wires: Two hots, neutral and ground
• Phase: Single-phase
• Product Color: Gray
• Product Details: MLO
• Product Height: 3.88 in
• Product Width: 14.31 in
• Used With: Type BR 1-inch breakers
• Voltage Rating: 120/240V

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Residential electrical distribution and circuit protection
• Small commercial facilities and office buildings
• Multi-unit residential properties and condominiums
• Retail establishments and service businesses
• Light industrial applications requiring reliable power distribution
• Renovation and upgrade projects requiring modern loadcenter solutions

Why Choose Eaton Quality?

Eaton delivers proven reliability through UL 67 certification and robust NEMA 1 metallic enclosure construction. The aluminum bus material and 10 kAIC interrupt rating ensure long-term performance and safety in demanding electrical distribution applications.
