Cooper Wiring Devices Two-Pole Manual Motor Controller, 600V

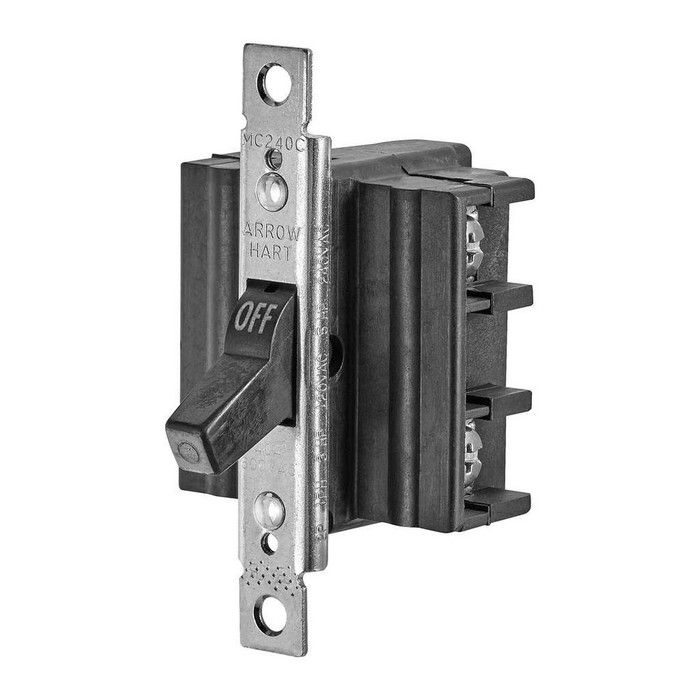

The Cooper Wiring Devices Two-Pole Manual Motor Controller is a two-position, single-throw toggle switch built for industrial motor control applications. Constructed from durable glass-filled nylon, this two-pole controller is rated 600V and 40A, with side wired screw and clamp terminations that accept #14-8 AWG wire for dependable, code-compliant connections.

Key Features

  • Two-Pole, Single-Throw Design: Two-position toggle switch with two-pole, single-throw configuration for reliable manual motor control.
  • Durable Construction: Glass-filled nylon housing delivers strength and durability for industrial use.
  • Side Wired Screw & Clamp Termination: Accepts #14-8 AWG wire for secure side-wired screw and clamp connections.
  • Voltage & Amperage Rating: Rated 600V and 40A to support demanding industrial motor control circuits.
  • Maintained Contact: Maintained closure and maintained contact type for consistent, dependable switching.
  • Open, Panel-Mount Enclosure: Open enclosure design intended for panel mounting.
  • Copper-Alloy Terminals: Copper-alloy terminals with brass screws for dependable electrical connections.
  • Single-Phase Application: Designed for single-phase industrial motor control, switch only.

Technical Specifications

  • Amperage Rating: 40A
  • List Batch: COOPER-20260730
  • Number Of Positions: Two-position
  • Material: Glass-filled nylon
  • Switch Type: Toggle switch
  • Voltage Rating: 600V
  • Throw: Single-throw
  • Wiring Method: Side wired screw & clamp
  • Number Of Poles: Two-pole
  • Allowable Wire Size: #14-8 AWG
  • Application: Industrial
  • Mounting Type: Panel
  • Closure Type: Maintained
  • Contact Type: Maintained contact
  • Enclosure: Open
  • Phase: Single-phase
  • Color: Black
  • Terminals: Copper-alloy terminal, brass screw

Typical Applications

  • Industrial Electrical Installations
  • Panel-Mounted Motor Control Circuits
  • Single-Phase Motor Disconnect and Control
  • Manual Motor Starting and Stopping Applications
  • Commercial and Industrial Equipment Wiring

Why Cooper Wiring Devices?

Cooper Wiring Devices builds this manual motor controller with glass-filled nylon construction, copper-alloy terminals, and brass screws for dependable, long-lasting performance. The maintained contact toggle switch design and 600V, 40A rating make it a solid choice for professional industrial electrical work.

Manufacturer Resources

Product Specs

Number Of Positions:
Two-position
Switch Classification:
Toggle switch
Voltage Rating:
600V
Throw:
Single-throw
Wiring Method:
Side wired screw & clamp
Number Of Poles:
Two-pole
Allowable Wire Size:
#14-8 AWG
Application:
Industrial
Amperage Rating:
40A
Installation Category:
Panel
Closure Type:
Maintained
Contact Type:
Maintained contact
Special Features:
Switch only
Configuration:
Open
Termination Style:
Side wired screw and clamp
Phase:
Single-phase
Terminals:
Copper-alloy terminal, brass screw
Product Type:
Manual Motor Controller
Product Material:
Glass-Filled Nylon
Product Color:
Black
Department:
Electrical
Product Group:
Motor Control & Automation
Product Subgroup:
Motor Starters & Contactors

Cooper Wiring Devices AHMC240C – Frequently Asked Questions

1) Can I use the Cooper AHMC240C manual motor controller on a 480V three-phase motor?
No. The AHMC240C is a single-phase device, two-pole single-throw. Its 600V insulation rating covers 480V circuits, but a three-phase motor needs three switched poles, so you'd want a three-pole manual motor controller instead. Use this one on single-phase loads up to 40A.
2) Does this Cooper manual motor controller come with an enclosure, or do I need to supply one?
It ships as an open device for panel mounting, switch only. There's no box or cover included, so it has to go into a panel, enclosure, or gang box you provide. If the motor disconnect sits out in the open or in a wet area, plan on a separate enclosure rated for the location.
3) What wire size will the terminals on the AHMC240C take?
The terminals accept #14 through #8 AWG, side wired with screw and clamp. At the 40A rating you're typically landing #8 copper, which is the largest the clamp takes, so if your feeder is #6 or bigger you'll need a different controller or a transition in a separate junction box. Terminals are copper-alloy with brass screws.
4) Does this manual motor controller provide overload protection for the motor?
No. The Cooper AHMC240C is switch only, a maintained-contact toggle that opens and closes the circuit. There's no thermal overload element and no fusing in it. Overload and short circuit protection have to come from upstream breakers or fuses, or from a separate combination starter if the motor requires running overload protection.
5) Will the toggle stay where I put it, or does it spring back?
It stays put. This is a maintained closure, maintained contact toggle with two positions, so flipping it to on holds the motor circuit closed until someone flips it back. That's what you want for a manual motor switch or local disconnect, as opposed to a momentary start/stop pushbutton station.
6) Is a manual motor controller like this good enough as the local disconnect at the equipment?
For single-phase motor circuits it's the common choice: a two-pole maintained toggle breaks both legs at once, rated 600V and 40A, mounted in a panel within sight of the equipment. What it is not is an overcurrent device or a lockable safety switch by itself. If your inspector wants a lockable disconnecting means or the load is three-phase, go to a fused or non-fused safety switch instead.
7) Is the body tough enough for a dusty industrial plant?
The housing is glass-filled nylon, which is the standard build for industrial-duty wiring devices, and the device is rated for industrial application. Color is black. Since it's an open device, the dust and moisture protection comes from whatever enclosure you mount it in, not from the controller itself.
8) What's the exact part number for the Cooper 40A two-pole manual motor controller?
Order it as Cooper Wiring Devices AHMC240C. That's the 600V, 40A, two-pole single-throw maintained toggle in black glass-filled nylon, side wired for #14-8 AWG.
