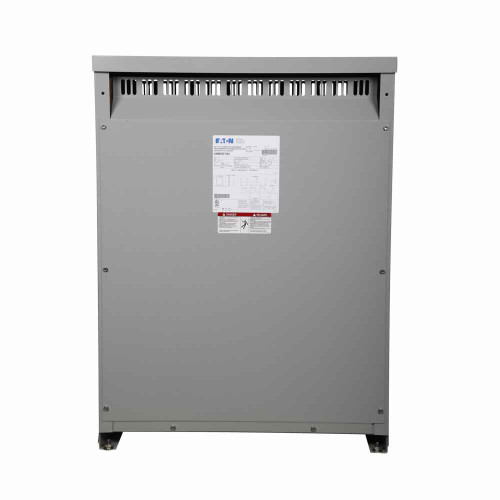

Eaton Marine Duty Transformer, Three-phase, PV: 480V, Taps: 2 at +2.5% FCAN, 4 at -2.5% FCBN, SV: 208Y/120V, 30 kVA, Cu windings, Frame: 912B, uses WS38
Manufacturer Resources
Product Specs
- Catalog Notes:
- NEMA TP-1 efficient
- Certifications:
- UL Listed
- Coil Material:
- Copper
- Enclosure:
- NEMA 2
- Frame:
- 912B
- Frequency Rating:
- 60 Hz
- Kva Rating:
- 30 kVA
- Phase:
- Three-phase
- Primary Voltage:
- 480 V
- Product Height:
- 30 in
- Product Length Depth:
- 16.5 in
- Product Weight:
- 299 lb
- Product Width:
- 23 in
- Secondary Voltage:
- 208Y/120 V
- Tap Size:
- 2 at +2.5% FCAN, 4 at -2.5% FCBN
- Type:
- Marine Duty Transformer
- Weathershield:
- WS38
- Product Group:
- Electrical
