Eaton 1008966ACH Metered Pedes...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,965.34
$1,915.34

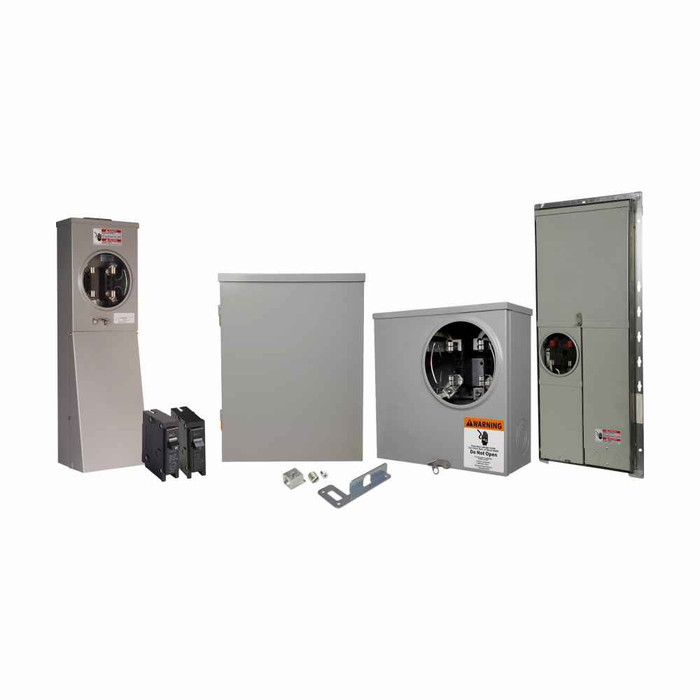

Eaton 1008966ACH Metered Pedestals With Main Breaker, RESI/commercial, (1) 200A bolt-on main breaker, 200A, 120/240V, Ringless, 3-5/16 hub cover plate, Three-wire, Overhead/Underground feed, Horn bypass, Four-jaws, #6-350 kcmil line

Eaton 1008966ACH Metered Pedestals With Main Breaker, RESI/commercial, (1) 200A bolt-on main breaker, 200A, 120/240V, Ringless, 3-5/16 hub cover plate, Three-wire, Overhead/Underground feed, Horn bypass, Four-jaws, #6-350 kcmil line

(No reviews yet) Write a Review

Model: 1008966ACH

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,965.34
$1,915.34
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Eaton 1009085CH Metered Pedestals With Main Breaker, RESI/commercial, (1) 200A plug-in breaker, 100A, 240V, Ringless, 3-5/16 hub opening, Three-wire, Overhead feed, Horn bypass, Four-jaws, 1 socket, #8-2/0 AWG line, #8-2/0 AWG load, Horn bypass

Eaton 1009085CH Metered Pedestals With Main Breaker, RESI/commercial, (1) 200A plug-in breaker, 100A, 240V, Ringless, 3-5/16 hub opening, Three-wire, Overhead feed, Horn bypass, Four-jaws, 1 socket, #8-2/0 AWG line, #8-2/0 AWG load, Horn bypass

Model: EAT-1009085CH

Eaton Metered Pedestals With Main Breaker, RESI/commercial, (1) 200A plug-in breaker, 100A, 240V, Ringless, 3-5/16 hub opening, Three-wire, Overhead feed, Horn bypass, Four-jaws, 1 socket, #8-2/0 AWG...

Eaton

$1,898.64
$1,848.64
Eaton 1009078CH Metered Pedestals With Main Breaker, RESI/commercial, Provisions for 100A max plug-in main breaker, 100A, 240V, Ringless, 22 kAIC, Solid top mounting, Underground feed, Four-jaws, #6-350 kcmil line, #6-250 kcmil load, Horn bypass

Eaton 1009078CH Metered Pedestals With Main Breaker, RESI/commercial, Provisions for 100A max plug-in main breaker, 100A, 240V, Ringless, 22 kAIC, Solid top mounting, Underground feed, Four-jaws, #6-350 kcmil line, #6-250 kcmil load, Horn bypass

Model: EAT-1009078CH

Eaton Metered Pedestals With Main Breaker, RESI/commercial, Provisions for 100A max plug-in main breaker, 100A, 240V, Ringless, 22 kAIC, Solid top mounting, Underground feed, Four-jaws, #6-350 kcmil...

Eaton

$3,957.90
$3,907.90
Eaton Metered Pedestals With Main Breaker, RESI/commercial, (1) 200A bolt-on main breaker, 200A, 120/240V, Ringless, 3-5/16 hub cover plate, Three-wire, Overhead/Underground feed, Horn bypass, Four-jaws, #6-350 kcmil line

Manufacturer Resources

Product Specs

Accessories:
2 in tall load side horns
Amperage Rating:
200A
Bypass:
Horn
Catalog Notes:
Ameren approved
Certifications:
UL Listed
Feed Type:
Top/bottom
Hub Type:
3-5/16 hub cover plate
Line:
#6-350 kcmil
Main Circuit Breaker:
200A bolt-on
Number Of Jaws:
Four-jaw
Number Of Wires:
3
Phase:
Single-phase
Prod Load:
#2/0-250 kcmil
Product Height:
29 in
Product Length Depth:
4.375 in
Product Weight:
1 lb
Product Width:
13 in
Security:
Ringless
Type:
Residential/commercial
Voltage Rating:
120/240 V
Product Group:
Electrical
!
