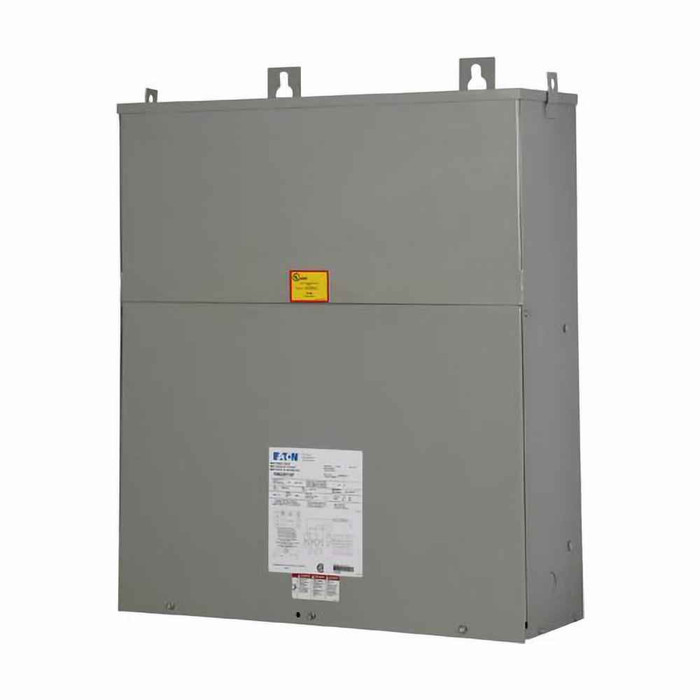

Eaton Mini-Power center, Copper, NEMA 3RX, 307, 60 Hz, Single-phase, 480 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 5 KVA, Indoor-Outdoor, 110A5K
Manufacturer Resources
Product Specs
- Catalog Notes:
- Grade 316 stainless steel enclosure, All copper construction (coil and interior) and accepts bolt-on branch breakers from the BAB family
- Certifications:
- UL Listed
- Coil Material:
- Copper
- Compliances:
- NEMA Compliant
- Enclosure:
- NEMA 3RX
- Frame:
- 307
- Frequency Rating:
- 60 Hz
- Phase:
- Single-phase
- Primary Voltage:
- 480 V
- Product Height:
- 36.14 in
- Product Length Depth:
- 9.66 in
- Product Weight:
- 151 lb
- Product Width:
- 12.56 in
- Secondary Voltage:
- 120/240 V
- Tap Size:
- 2 at -5% FCBN
- Temperature Rise:
- 115 °C rise
- Type:
- Mini-power center
- Volt Ampere Rating:
- 5 kVA
- Weathershield:
- Indoor-Outdoor
- Wiring Connection:
- 110A5K
