Eaton P48G11E25CUB Mini-Power center, mini-power center, copper, NEMA 3R, 310, 60 Hz, single-phase, 480 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 25 KVA, indoor-outdoor, 122A25K
Model: EAT-P48G11E25CUB
Eaton Mini-Power center, mini-power center, copper, NEMA 3R, 310, 60 Hz, single-phase, 480 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 25 KVA, indoor-outdoor, 122A25K
Eaton
$33,579.91
$33,529.91
Eaton P29G11S05CUB Mini-Power center, mini-power center, copper, NEMA 3R, 307, 60 Hz, single-phase, 208 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 5 KVA, indoor-outdoor, 128A5K
Model: EAT-P29G11S05CUB
Eaton Mini-Power center, mini-power center, copper, NEMA 3R, 307, 60 Hz, single-phase, 208 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 5 KVA, indoor-outdoor, 128A5K
Eaton
$15,080.81
$15,030.81
Eaton P29G11S07CUB Mini-Power center, mini-power center, copper, NEMA 3R, 307, 60 Hz, single-phase, 208 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 7.5 KVA, indoor-outdoor, 101A7K
Model: EAT-P29G11S07CUB
Eaton Mini-Power center, mini-power center, copper, NEMA 3R, 307, 60 Hz, single-phase, 208 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 7.5 KVA, indoor-outdoor, 101A7K
Eaton
$17,585.96
$17,535.96
Eaton P29G11S10CUB Mini-Power center, mini-power center, copper, NEMA 3R, 308, 60 Hz, single-phase, 208 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 10 KVA, indoor-outdoor, 109A10K
Model: EAT-P29G11S10CUB
Eaton Mini-Power center, mini-power center, copper, NEMA 3R, 308, 60 Hz, single-phase, 208 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 10 KVA, indoor-outdoor, 109A10KP29G11S10CUB - spec sheet
Eaton
$18,473.19
$18,423.19
Eaton P29G11S05F Mini-Power center, mini-power center, aluminum, NEMA 3R, 284, 60 Hz, single-phase, 208 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 5 KVA, indoor-outdoor, 128A5K
Model: EAT-P29G11S05F
Eaton Mini-Power center, mini-power center, aluminum, NEMA 3R, 284, 60 Hz, single-phase, 208 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 5 KVA, indoor-outdoor, 128A5K
Eaton
$10,331.50
$10,281.50

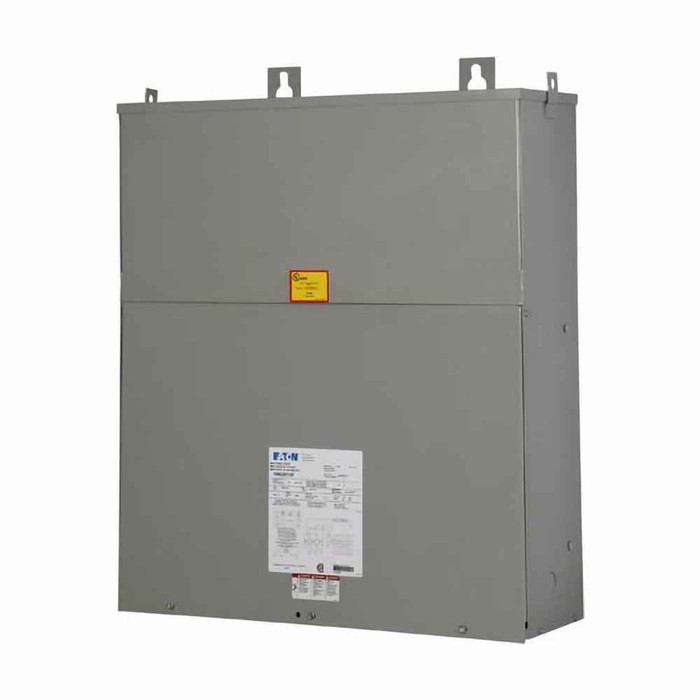

Eaton Mini-Power center, mini-power center, copper, NEMA 3R, 310, 60 Hz, single-phase, 208 V, 120/240 V, 2 at -5% FCBN, 115 °C rise, 25 KVA, indoor-outdoor, 107A25K
Manufacturer Resources
Product Specs
- Catalog Notes:
- All copper construction (coil and interior) and accepts bolt-on branch breakers from the BAB family
- Certifications:
- UL Listed
- Coil Material:
- Copper
- Compliances:
- NEMA Compliant
- Enclosure:
- NEMA 3R
- Frame:
- 310
- Frequency Rating:
- 60 Hz
- Phase:
- Single-phase
- Primary Voltage:
- 208 V
- Product Height:
- 43.37 in
- Product Length Depth:
- 14.58 in
- Product Weight:
- 567 lb
- Product Width:
- 20.41 in
- Secondary Voltage:
- 120/240 V
- Tap Size:
- 2 at -5% FCBN
- Temperature Rise:
- 115 °C rise
- Type:
- Mini-power center
- Volt Ampere Rating:
- 25 kVA
- Weathershield:
- Indoor-Outdoor
- Wiring Connection:
- 107A25K
