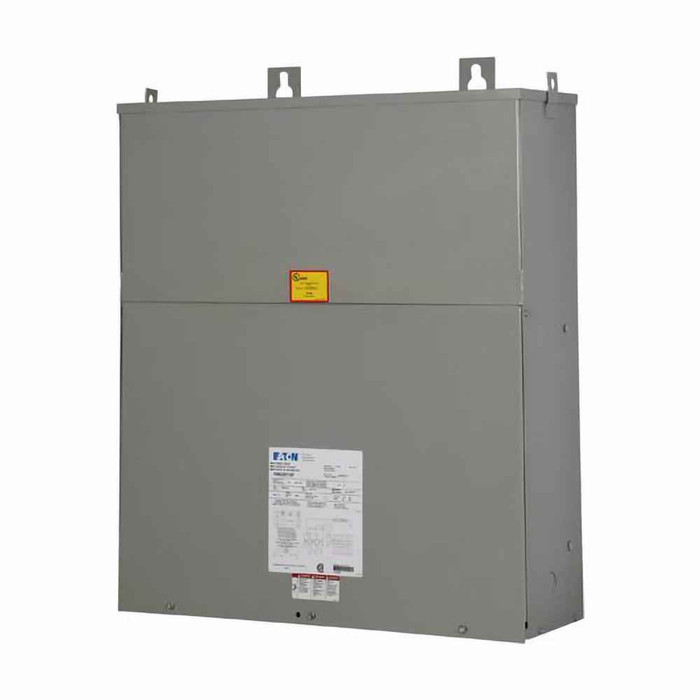

Eaton Mini-Power center, mini–power center, copper, NEMA 3R, 309, 60 Hz, single-phase, 480 V, 120/240 V, 2 at -5% FCBN, 80 °C rise, 15 KVA, indoor-outdoor, 108A15K
Manufacturer Resources
Product Specs
- Catalog Notes:
- Low sound design equivalent to 47 dB, Grade 304 Stainless Steel Enclosure
- Certifications:
- UL Listed
- Coil Material:
- Copper
- Enclosure:
- NEMA 3R
- Frame:
- 309
- Frequency Rating:
- 60 Hz
- Phase:
- Single-phase
- Primary Voltage:
- 480 V
- Product Height:
- 43.91 in
- Product Length Depth:
- 11.82 in
- Product Weight:
- 332 lb
- Product Width:
- 14.97 in
- Secondary Voltage:
- 120/240 V
- Tap Size:
- 2 at -5% FCBN
- Temperature Rise:
- 80 °C rise
- Type:
- Mini–power center
- Volt Ampere Rating:
- 15 kVA
- Weathershield:
- Indoor-Outdoor
- Wiring Connection:
- 108A15K
