Eaton Category 5e RJ45 Modular...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$7.81

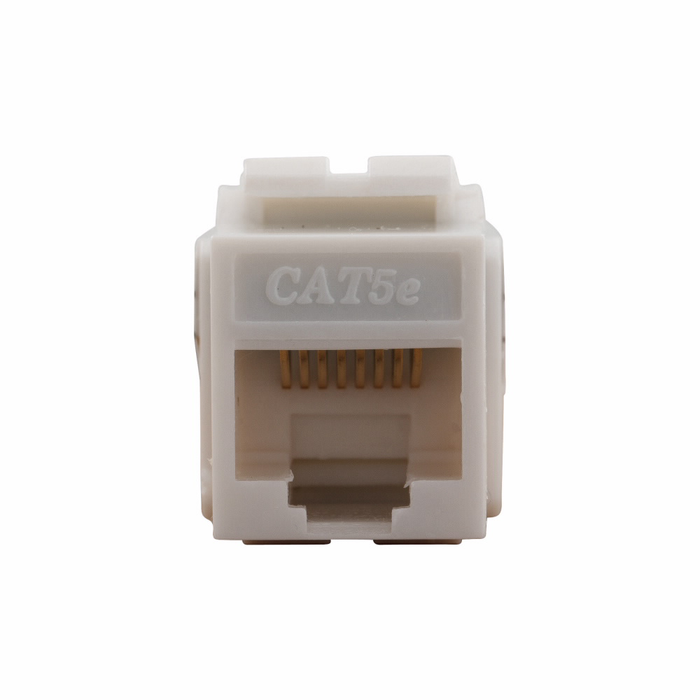

Eaton Category 5e RJ45 Modular Data Jack, 8-Position 8-Conductor, White

Eaton Category 5e RJ45 Modular Data Jack, 8-Position 8-Conductor, White

(No reviews yet) Write a Review

Model: 5547-5EW

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.81
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Eaton Category 5e RJ45 Modular Data Jack, 8-Position 8-Conductor, White

The Eaton Category 5e RJ45 Modular Data Jack (554 Series) is an 8-position, 8-conductor jack built for reliable voice and data terminations in commercial and residential structured cabling systems. Wired for 568A/B termination standards and finished in white, this jack is rated for a 0 to 40 °C operating temperature range and is cULus Listed and RoHS Compliant for code-conscious installations.

Key Features

  • Compact Footprint: Measures 1.1 in wide x .7 in deep x .8 in high for easy fit into standard wall plates and patch panels.
  • Wire Type: Supports 568A/B wiring configurations for flexible field termination.
  • 8-Position, 8-Conductor Design: Full 8P8C jack configuration for Category 5e RJ45 connections.
  • Design Type: Modular jack construction for straightforward integration into keystone-style faceplates and patch panels.
  • Operating Temperature: Rated for 0 to 40 °C, suitable for standard indoor commercial and residential environments.
  • Finish: Clean white housing for a neat, professional appearance in visible installations.

Certifications & Compliance

  • cULus Listed
  • RoHS Compliant

Technical Specifications

  • Product Width: 1.1 in
  • Wire type: 568A/B
  • Color: White
  • Product Length/Depth: .7 in
  • Operating temperature: 0 to 40 °C
  • Product Height: .8 in
  • Type: 8-position, 8-conductor
  • Design type: Jack
  • Compliances: RoHS Compliant
  • Certifications: cULus Listed

Typical Applications

  • Structured Voice and Data Cabling
  • Commercial Office Network Wiring
  • Residential Low-Voltage Data Outlets
  • Keystone Wall Plate and Patch Panel Installations
  • New Construction and Renovation Data Drops

Why Eaton?

Eaton's Category 5e RJ45 modular data jack delivers cULus Listed, RoHS Compliant performance built for dependable low-voltage data terminations. Its precise 568A/B wiring support and compact, code-compliant design make it a trusted choice for electricians and low-voltage contractors on commercial and residential jobs.

Manufacturer Resources

Product Specs

Product Width:
1.1 in
Wire Type:
568A/B
Product Color:
White
Product Length/Depth:
.7 in
Operating Temperature:
0 to 40 °C
Product Height:
.8 in
Product Type:
Data Jack
Design Type:
Jack
Compliances:
RoHS Compliant
Certifications:
cULus Listed
Department:
Electrical
Connection Type:
568A/B
Configuration:
8-Position 8-Conductor
Listing:
cULus
Standards:
RoHS
Product Group:
Wiring Devices
Product Subgroup:
Wiring Devices
Product Weight:
0.026 lb
Product Length:
0.7 in

Eaton 5547-5EW – Frequently Asked Questions

1) Will this Eaton Cat 5e jack snap into a standard keystone wall plate?
The Eaton 554 Series Cat 5e RJ45 jack is a modular keystone-style jack, and it measures 1.1 in wide, .7 in deep, .8 in high, which is the standard keystone opening footprint used in wall plates and patch panels. If your plates take keystone inserts, this drops in.
2) Can I terminate this Eaton data jack to T568A or is it B only?
Both. The jack is wired for 568A/B, so you pick the scheme that matches the rest of the run. Keep the whole building on one standard, since mixing A on one end and B on the other creates a crossover.
3) Is this Eaton jack an 8-conductor jack that will carry PoE and gigabit runs?
It is a full 8-position, 8-conductor Cat 5e RJ45 jack, so all four pairs are terminated rather than the two used on voice-only jacks. That is what Gigabit Ethernet and PoE over all four pairs require at the outlet.
4) Is this Eaton Cat 5e jack UL listed for commercial work?
Yes, it is cULus Listed and RoHS Compliant, which covers both US and Canadian listing requirements on a spec job.
5) What is the difference between the two Eaton 554 Series jack models, 5546-6W and 5547-5EW?
They are the two orderable models of the Eaton Cat 5e RJ45 modular jack, both white and both 8-position 8-conductor with 568A/B wiring. Order by the model number your spec or existing outlets already use so the jacks match across the building.
6) Does the Eaton Cat 5e data jack come with a wall plate?
No. It is the modular jack insert only. You order the keystone faceplate or patch panel separately, plus a mounting bracket or low-voltage ring if the opening is not already prepped.
7) Will this jack match my existing white data outlets across a building?
The housing is white, so it blends with white keystone plates and the white device trim most offices and apartments already use. For a property manager standardizing drops across units, this is the color to stay on.
8) Can I use this Cat 5e jack for a phone line as well as data?
Yes. The 554 Series jack is built for voice and data terminations in structured cabling, and an 8P8C RJ45 jack accepts a 6-position phone plug, so a single jack type can serve both drops on a job.
