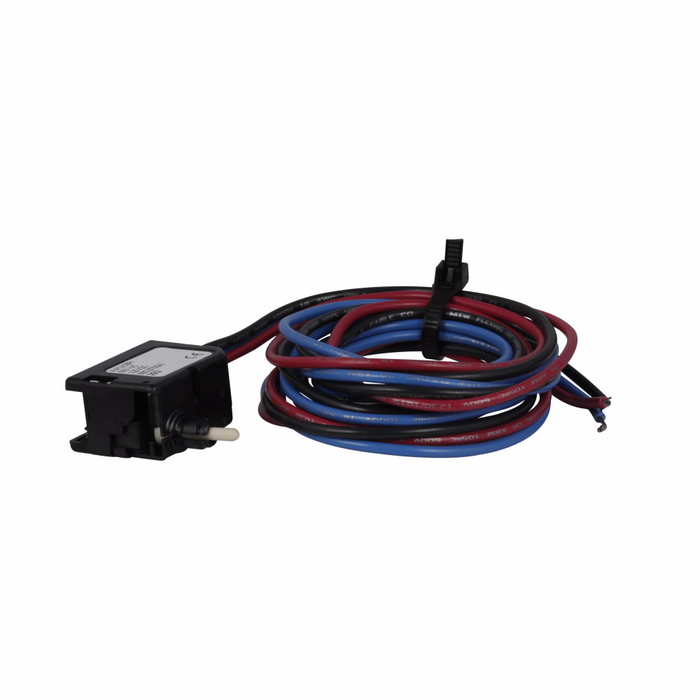

Eaton EG-/JG-Frame Series G Auxiliary Switch Accessory

The Eaton EG-/JG-Frame Series G Auxiliary Switch Accessory is a molded case circuit breaker auxiliary switch engineered for use with EG- and JG-Frame breakers, Frame size Frame J-K. Featuring a 1A-1B contact configuration, this Series G accessory reports breaker on/off status for remote monitoring, control, and interlock circuits. Compact dimensions of 3.5 in width, 3 in length/depth, and 5.5 in height allow it to mount directly onto compatible Eaton breakers without consuming additional panel space.

Key Features

  • Frame Compatibility: Used with EG- and JG-Frame molded case circuit breakers, Frame size Frame J-K.
  • Series G Design: Purpose-built accessory within Eaton's Series G molded case circuit breaker platform.
  • Contact Configuration: 1A-1B auxiliary contact arrangement for remote breaker status signaling.
  • Compact Footprint: Product width of 3.5 in, length/depth of 3 in, and height of 5.5 in for space-efficient mounting inside enclosures.
  • Special Feature: Designed specifically for use with EG- and JG-frame breakers per manufacturer specification.
  • Type: Auxiliary switch accessory for molded case circuit breakers.

Technical Specifications

  • Product Width: 3.5 in
  • Product Length/Depth: 3 in
  • Product Height: 5.5 in
  • Used with: EG- and JG-Frame
  • Series: Series G
  • Contact configuration: 1A-1B
  • Frame size: Frame J-K
  • Type: Auxiliary switch
  • Special features: Used with EG- and JG-frame

Typical Applications

  • Molded Case Circuit Breaker Status Monitoring
  • Control Panel and Switchgear Integration
  • Commercial and Industrial Electrical Distribution Equipment
  • Remote Signaling and Interlock Circuits
  • Retrofit and Replacement of Series G Breaker Accessories

Why Eaton?

Eaton engineers this Series G auxiliary switch accessory to match the exacting fit and function requirements of EG- and JG-Frame molded case circuit breakers. It is backed by Eaton Selling Policy 25-000, providing coverage for one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first, giving professionals confidence in long-term performance. Choose Eaton for dependable, precisely engineered breaker accessories built for demanding commercial and industrial electrical distribution applications.

Manufacturer Resources

Product Specs

Product Width:
3.5 in
Used With:
EG- and JG-Frame
Series:
Series G
Product Length/Depth:
3 in
Contact Configuration:
1A-1B
Frame Size:
Frame J-K
Compliances:
Contact Manufacturer
Product Height:
5.5 in
Product Type:
Shunt Trip & Auxiliary Contact
Special Features:
Used with EG- and JG-frame
Department:
Electrical
Configuration:
1A-1B
Product Group:
Circuit Protection
Product Subgroup:
Circuit Breakers
Product Length:
3 in
Product Weight:
0.21 lb

Eaton AUX1A1BPK – Frequently Asked Questions

1) Which Eaton circuit breakers does the AUX1A1BPK auxiliary switch fit?
The AUX1A1BPK auxiliary switch is built for Eaton Series G molded case breakers in the EG- and JG-Frame, covered as Frame J-K. It mounts into the breaker's accessory cavity, so it is not a universal add-on: if your breaker is a different Eaton frame or another manufacturer's, this one will not seat correctly.
2) What does a 1A-1B contact configuration give me for breaker status monitoring?
One normally open contact and one normally closed contact, both following the breaker's on/off position. That gives you a signal either way: the A contact closes when the breaker is closed, the B contact closes when it is open. Enough to drive a remote indicator light, a PLC input, or an interlock circuit from a single switch.
3) Is the ABB Spec-Setter DPDT auxiliary contact a substitute for the Eaton AUX1A1BPK auxiliary switch?
No. The Eaton AUX1A1BPK is a molded case circuit breaker auxiliary switch built specifically for Eaton EG- and JG-Frame breakers in the Series G platform, with a 1A-1B contact configuration. The ABB Spec-Setter auxiliary contact is a DPDT contact for an ABB Spec-Setter safety switch, a different device entirely - a disconnect switch rather than a molded case breaker. If the status signal is coming off an EG- or JG-Frame breaker, the Eaton AUX1A1BPK is the part that mounts to it; the ABB unit is what you would use on a Spec-Setter safety switch.
4) Will an auxiliary switch take up extra space in my panel?
No. The Eaton Series G auxiliary switch mounts into the breaker itself rather than beside it, so it does not eat additional panel width. The accessory measures 3.5 in wide, 3 in in length/depth and 5.5 in high as packaged.
5) Do I need an auxiliary switch or a shunt trip for my breaker?
Different jobs. An auxiliary switch like the Eaton AUX1A1BPK only reports position, telling your panel or BMS whether the breaker is on or off through its 1A-1B contacts. It cannot operate the breaker. If you need to trip the breaker remotely from a fire alarm, e-stop or control signal, you want a shunt trip accessory instead. Many installs use both in the same EG- or JG-Frame breaker.
6) Can I add this auxiliary switch to a breaker that is already installed?
Yes, it is a field-installable accessory for EG- and JG-Frame Series G breakers, which is why it is commonly used for retrofit and replacement of Series G breaker accessories. The breaker has to be de-energized and removed from service to open the accessory cover and seat the switch.
7) What part number do I order for the Eaton EG-/JG-Frame auxiliary switch?
Order Eaton AUX1A1BPK. That is the Series G auxiliary switch with the 1A-1B contact arrangement for EG- and JG-Frame breakers, and it is the only configuration offered under this model.
