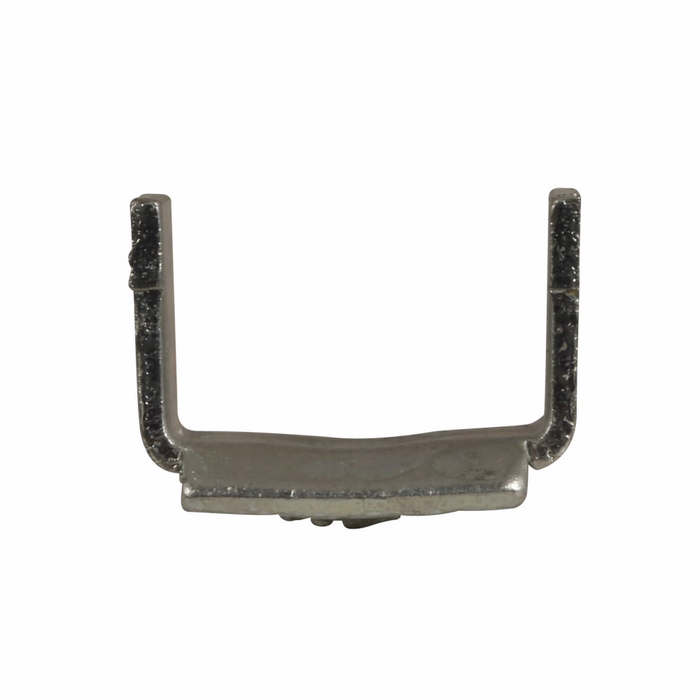

Eaton Series C Line and Load Terminal Accessory Kit
The Eaton Series C Line and Load Terminal Accessory Kit provides pressure-type line and load terminals designed for Eaton Series C molded case circuit breakers. Rated 20A and sized to accept #14-10 AWG Cu/Al conductors, this UL Listed accessory kit ships in convenient packs of 18, giving electrical contractors, panel builders, and maintenance electricians a reliable, code-compliant terminal solution for breaker installation, retrofit, and repair work. Compact dimensions and pressure-type construction make this kit an efficient choice for stocking spare terminals across commercial and industrial panelboard projects.
Key Features
- Terminal Type: Pressure type line and load terminals for secure, dependable conductor termination on molded case breakers.
- Amperage Rating: 20A rating matched to the Eaton Series C molded case circuit breaker family.
- Wire Size: Accepts #14-10 AWG Cu/Al conductors, supporting flexible copper or aluminum wiring installations.
- Series Compatibility: Purpose-built for the Eaton Series C breaker platform, ensuring proper fit and function.
- Compact Dimensions: Product width .8 in, length/depth 1 in, and height .7 in for a low-profile fit within panelboard enclosures.
- Pack Quantity: Supplied 18 per kit, making it easy to stock multiple breaker installations or maintenance jobs from a single order.
- Listing: UL Listed for verified safety and performance to recognized electrical standards.
- Warranty Coverage: Backed by Eaton Selling Policy 25-000, covering one year from installation or eighteen months from shipment, whichever occurs first.
Certifications & Compliance
- UL Listed
Technical Specifications
- Quantity: 18
- Department: Electrical
Typical Applications
- Molded Case Circuit Breaker Retrofit and Repair
- Panelboard and Load Center Wiring
- Commercial and Industrial Electrical Installations
- Breaker Terminal Replacement and Upgrade Projects
- New Construction Panel Assembly
- Electrical Maintenance and Spare Parts Stocking
Why Eaton?
Eaton engineers the Series C line and load terminal kit as a purpose-built, pressure-type termination accessory designed to work seamlessly with its molded case circuit breaker platform. Backed by UL Listing and Eaton's formal manufacturer warranty policy, this terminal kit delivers the dependable, code-compliant connection quality that electrical professionals rely on for panelboard and breaker work. Choosing genuine Eaton Series C accessories helps ensure proper fit, reliable performance, and continued compliance across breaker installations.
Manufacturer Resources
Product Specs
- Product Width:
- .8 in
- Item Quantity:
- 18
- Amperage Rating:
- 20A
- Terminals:
- Pressure type line and load
- Series:
- Series C
- Product Length/Depth:
- 1 in
- Compliances:
- Contact Manufacturer
- Product Height:
- .7 in
- Product Type:
- Equipment Lug Kit
- Wire Size:
- #14-10 AWG Cu/Al
- Certifications:
- UL Listed
- Department:
- Electrical
- Connection Type:
- Pressure Type
- Listing:
- UL Listed
- Product Group:
- Wire Connectors & Terminals
- Product Subgroup:
- Lugs & Terminals
- Product Length:
- 1 in
- Product Weight:
- 0.04 lb
Eaton 3T20FB – Frequently Asked Questions
1) What wire sizes do the Eaton Series C 3T20FB terminals accept?
The Series C terminal kit, model 3T20FB, takes #14 through #10 AWG conductors and is rated for both copper and aluminum. If your feeder or branch run is #8 or larger, this is the wrong terminal size for that conductor.
2) Will these terminals work on any Eaton breaker, or only Series C?
These are pressure-type line and load terminals built for the Eaton Series C molded case circuit breaker platform. They are not a universal terminal, so match the breaker frame to Series C before ordering.
3) What does the 20A rating on this Eaton terminal kit mean for my install?
The terminals carry a 20A rating, matched to the 20A Series C molded case breaker. Use them on 20A frames only; a higher-amp breaker needs a terminal rated for that current and for the larger conductor it lands.
4) Can I use aluminum conductors with this Eaton terminal kit?
Yes. The terminals are rated Cu/Al for #14-10 AWG, so copper or aluminum in that size range lands directly without a separate transition connector.
5) Will an ABB OZXA-800 terminal kit work on an Eaton Series C molded case breaker?
No. The ABB OZXA-800 is a replacement terminal kit for ABB OT/OS600 and OS800 disconnect switches, so it is built around a different device platform entirely. The Eaton 3T20FB terminal kit supplies pressure type line and load terminals for the Eaton Series C breaker family, rated 20A and sized for #14-10 AWG Cu/Al conductors. Match the terminal kit to the device brand and series - terminal kits are device specific and are not cross-brand interchangeable.
6) How many terminals come in the Eaton 3T20FB kit?
Eighteen terminals ship per kit. That is enough to cover a number of breaker terminations at once, which is why it works as a shelf-stock item for maintenance electricians rather than a one-breaker repair part.
7) Is there a terminal kit like this for a disconnect switch instead of a breaker?
The Eaton 3T20FB is a breaker terminal for the Series C molded case platform. If you are terminating a disconnect switch, the ABB OT/OS600 OS800 terminal kit is the replacement component for those ABB switch frames, not a breaker accessory.
8) Will these terminals fit inside a tight panelboard enclosure?
Each terminal is small: .8 in wide, 1 in length/depth, and .7 in high. That low profile is what lets them sit in the breaker pocket without crowding conductors in a loaded panelboard.
9) What is a pressure-type terminal and why does it matter on a breaker?
A pressure-type terminal clamps the conductor under a screw-driven pressure plate rather than requiring a lug or crimp. On the Eaton Series C kit that means the stripped #14-10 AWG conductor goes straight into the terminal and is torqued down, with no added hardware to buy.
